Overview

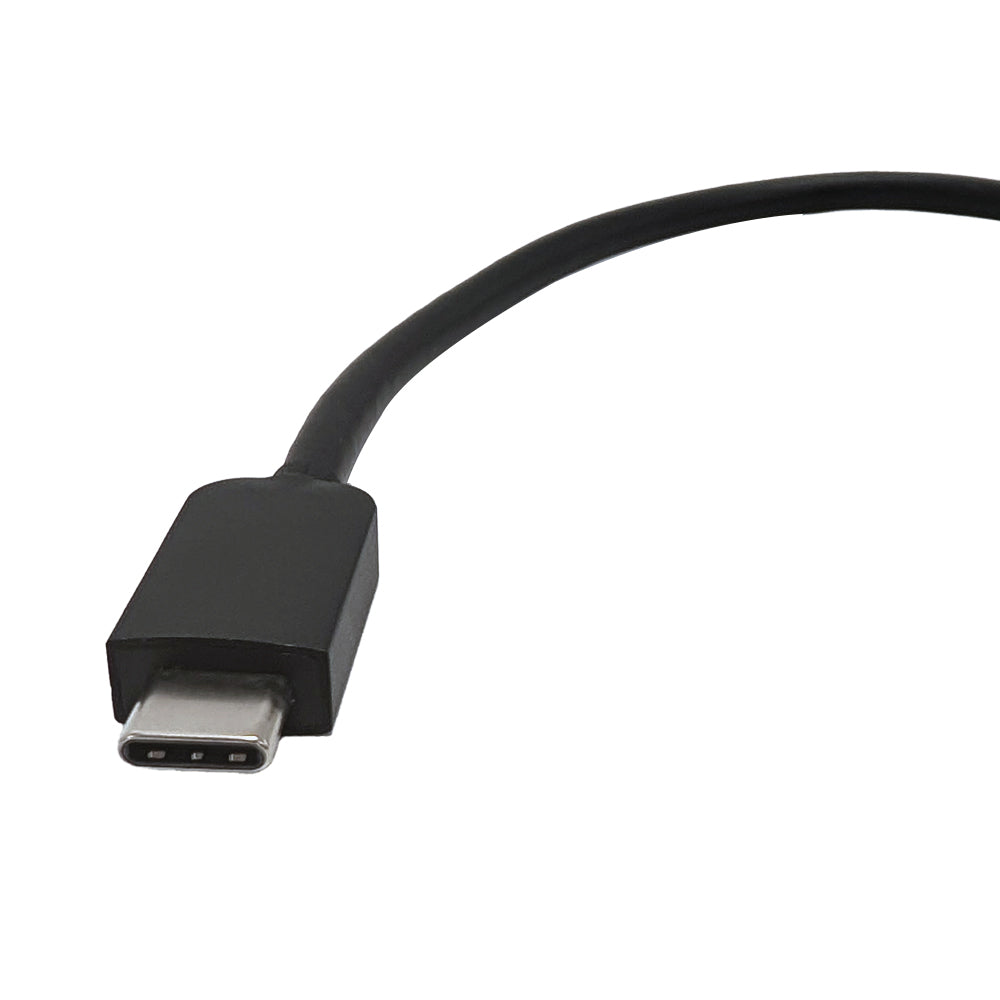

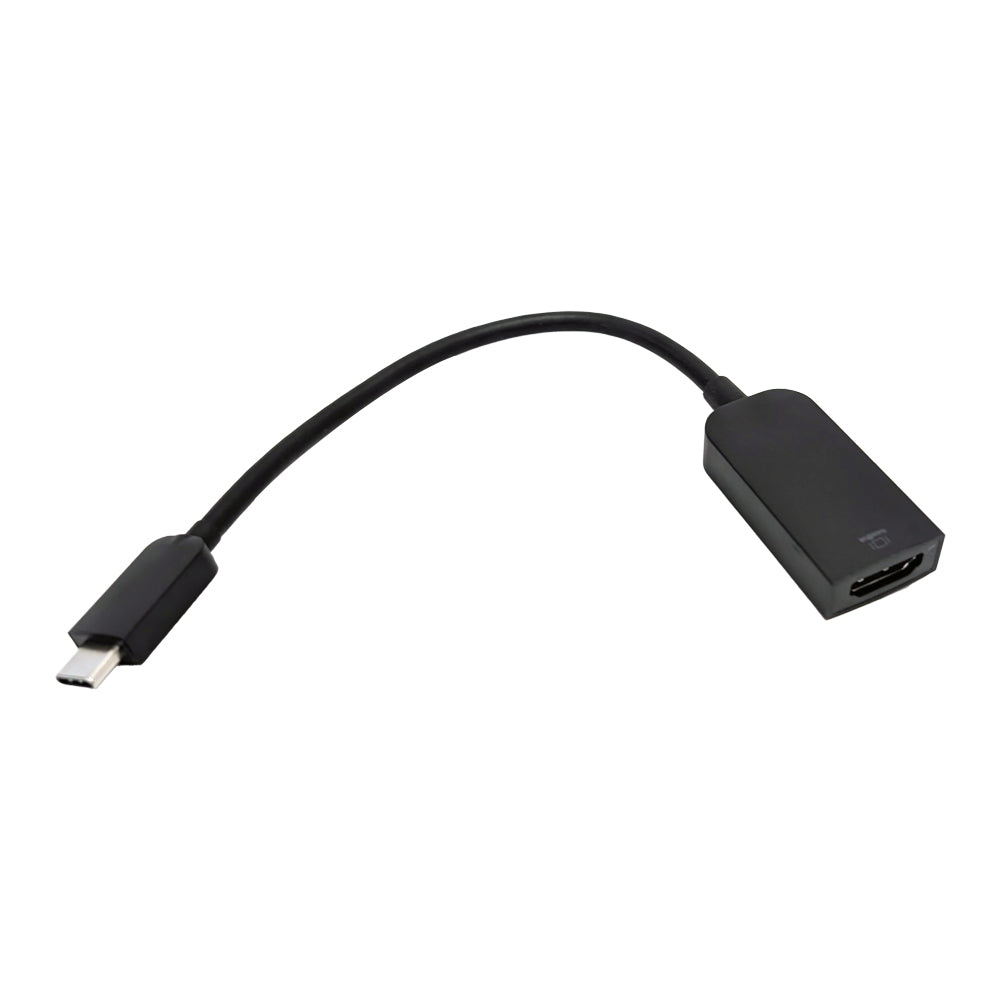

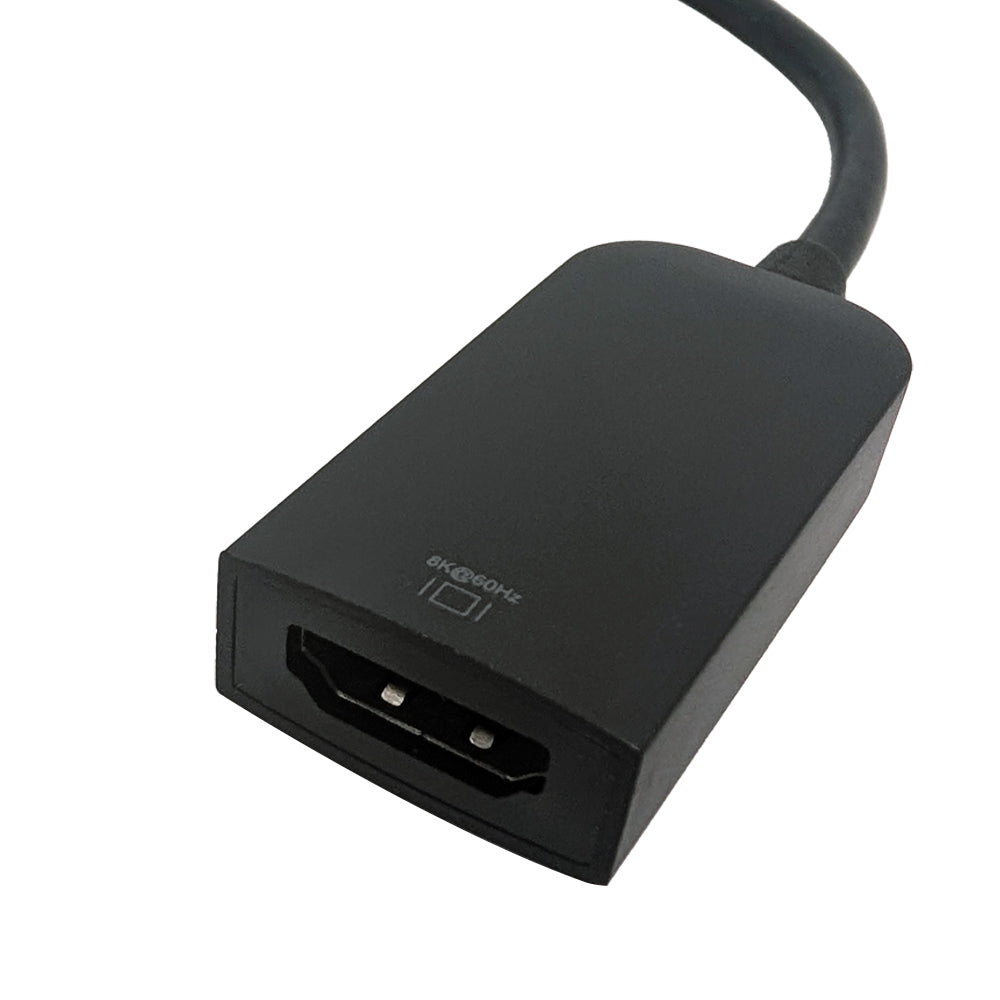

The USB Type-C to HDMI adapter consists of a USB Type-C male on one end and a HDMI female on the other end. It allows you to connect an extra display from your laptop's USB Type-C port. This adapter provides high throughput using the USB bus and supports high definition monitors. The adapter can either extend or mirror your source. It can also be used to connect a Type-C device such as a laptop, to an HDMI monitor or TV. It can work on all Type-C and Thunderbolt 3 hosts that support DP1.4 Alt mode.
High Performance and Quality Video OutputThe HDMI output provides a simple Plug & Play connection to displays with an Ultra HD 8K (7680×4320)@60Hz resolution. DisplayPort Alt ModeThis adapter works on all Type-C and HDMI hosts that support DP1.4 Alt mode. |
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Size(WxLxH) | 43.7x22x10.5(mm) |
| Operating Temperature | 0℃ to +45℃ |
| Storage Temperature | -10℃ to +70℃ |
| Operating Humidity | 10% to 90 % RH (no condensation) |
| Storage Humidity | 10% to 90 % RH (no condensation) |
| Connector(s) | |
| Connector A | USB 2.0 Type-C Male |
| Connector B | HDMI Female |
| Performance | |
| Resolution | Up to 8K (7680×4320) @60Hz |
| Compatibility | Compliant with USB 2.0 |
| Power Source | USB Bus Power |
| Supports | DisplayPort 1.4 Alt mode Dynamic HDR10+ HPD ,DSC 1.1/1.2a Decoder Content protection of HDCP 2.3/1.4 8/10/12 bit Color Depth RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 LPCM audio format with max audio sample rate up to 8-channel 192KHz HBR audio format up to 2-channel 768KHz 3D audio format up to 16-channel 96KHz |
| Power | |
| Working Voltage | 4.9-5.2V |
| Working Current | 100mA-200mA |
| Standby Power Consumption | ≤0.1W |
| Certifications | |
| FCC | Compliant |
| CE | Compliant |
| System Requirements | |
| Operating System | Windows Compliant |
| Mac Compliant | |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.06 lbs [0.02kg] |
