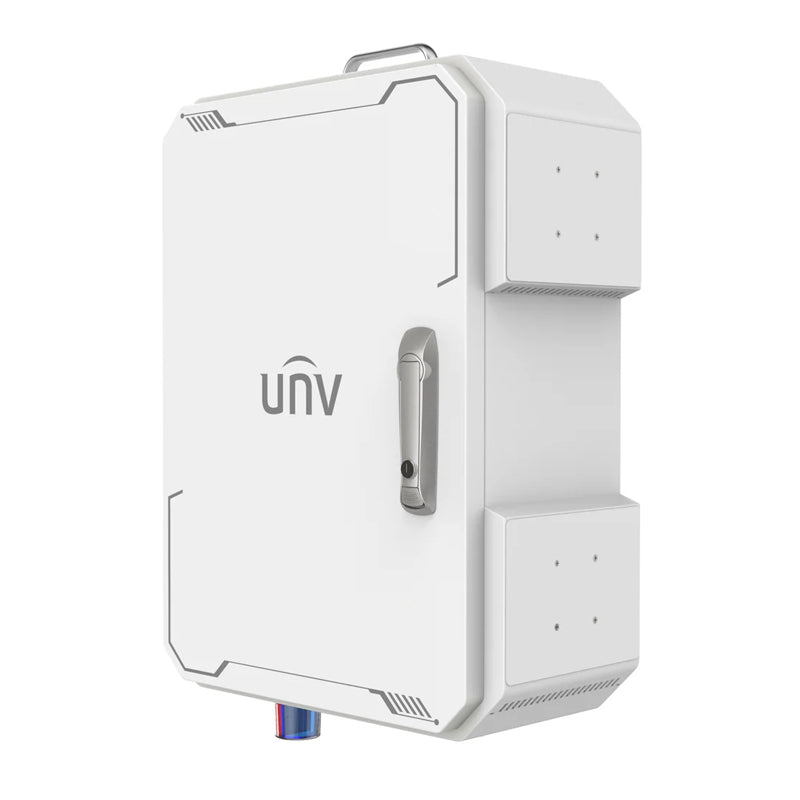

UNV SMBOX01-R-US AC Version Smart Intelligent Operation and Maintenance Box with 8 Channel PoE NVR, Cloud Management, Fan, Warning Light, AC Power

- Integrated design, combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box.

- Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud.

- Supports automatic restart of power port for network devices. When the smart management box detects a network disconnection, it will automatically power off the network devices and restart them.

- Supports manual restart of PoE port. If devices such as IPC or IP Speaker are faulty, users can manually restart the PoE power output port of the cloud management server via mobile app and EZCloud.

- Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection mechanism to effectively resist risks such as lightning, short circuit, overvoltage, and overcurrent.

- Integrated design eliminates the need for manual wiring, simplifying installation for users.

Model SMBOX01-R-US SMBOX01-R-EU Power Input Input Type AC 100 V to 240 V Input Port 3-pin Connector, For the final installation, a UL 489-certified, 20-ampere circuit breaker must be be installed at the front end. Power Output Socket 1-ch 5A, US socket 1-ch 5A, EU socket DC 12V 1-ch 2.5A, DC5521, Used for powering the router PoE 8 RJ45 10M/100M self adaptive Ethernet Interface PoE Power Max 30 W for single port, Max 75 W in total PoE Standard IEEE 802.3at, IEEE 802.3af Dedicated Power Interface (Pre-Wired Internal Cabling) Fan Power Interface DC12V, 2.5A Heater Power Interface AC 100 ~ 240V to DC 12V, 8A NVR Power Interface AC 100 ~ 240V to DC 48V, 2.3A Router Power Interface DC12V, 2.5A Warning Light Power Interface DC12V, 2.5A Function System Functional Description Overvoltage and Overload Protection,Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Thermostatic Heater,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis SMSERVER Decoding Format Ultra 265, H.265, H.264 Decoding Capability Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30 Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30 Audio Compression G.711A, G.711U Bandwidth 80 Mbps Protocols TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 IP Video Input 8-ch FTP/Schedule/Event Snapshot 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) Recording Resolution 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF Smart by IPC Face Detection,Vehicle Detection,SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area),Ultra Motion Detection (UMD),Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection),People Counting (People Flow Counting, Crowd Density Monitoring),Video Metadata,Traffic
