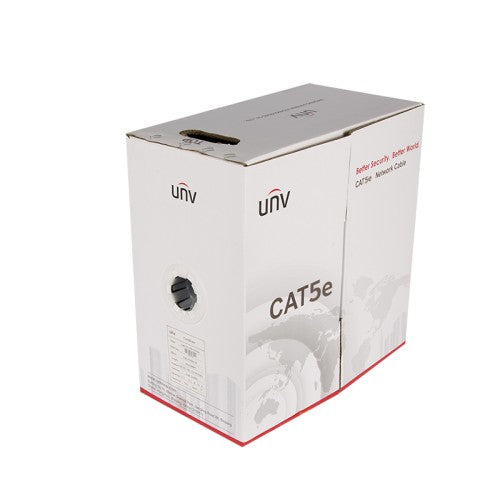

UNV CAT5e (350 Mhz) 24AWG 1000FT Pull Box Outdoor Network Cable
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
|
Model |
CAB‑LC2110B‑E-IN |
|
Cable |
|
|
Product model |
CAB‑LC2110B-E‑IN |
|
Test Standard |
ISO/IEC11801 ED.2, ANSI/TIA‑568‑C.2, Fluke test 100m （channel） |
|
Product specification |
Cat5e. U/UTP. 4×2×0.5mm Outdoor |
|
Packing length |
305±1 m |
|
PET Foil |
Yes |
|
Rip‑cord |
Yes |
|
Ambient temperature |
‑20℃ to 60℃ |
|
Conductor |
|
|
Material |
Solid‑Bare Copper |
|
AWG |
24 |
|
Nom.O.D.(mm) |
0.5±0.01 mm |
|
DC resistance |
≤95 Ω/km |
|
Insulation |
|
|
Material |
HDPE |
|
Diameter |
0.87±0.05 mm |
|
Color |
Blue/White‑ Blue, Green/White‑Green,Orange/White‑Orange,Brown/White‑Brown |
|
Sheath |
|
|
Material |
PE |
|
External O.D. |
4.9±0.3 mm |
|
Tensile strength |
>10 Mpa |
|
Thickness |
0.52±0.05 mm |
|
Color |
Black |
|
Surface Printing |
|
|
Color |
White |
|
Letter height |
3.0±0.3 mm |
|
Print error / Space |
1±0.005 m |
|
Packing |
|
|
Packing |
Carton |
|
Once packing dimension |
410mm*210mm*410mm |
|
Twice packing dimension |
430mm*465mm*430mm |
|
Twice packing quantity |
2 |
