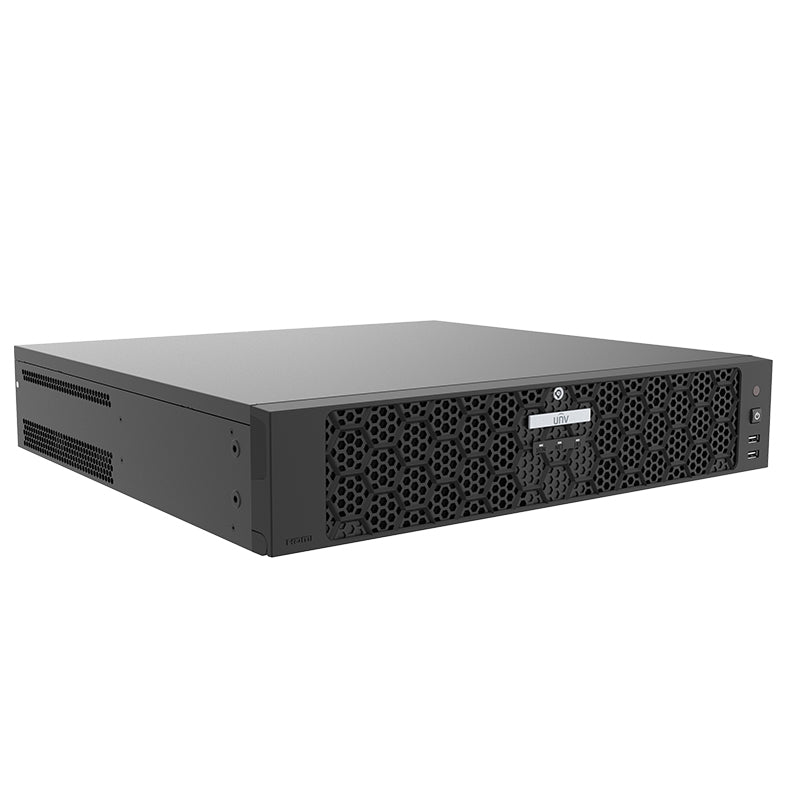

UNV Advanced NVR508-32E-R 32CH 4K NVR

-Support Ultra 265/H.265/H.264 video formats

-32-channel input

-Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

-Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output.

-VGA1/HDMI1 and VGA2/HDMI2 independent output

-Up to 32 Megapixels resolution recording

-8 SATA HDDs, up to 16TB for each HDD

-Support N+1 Hot spare

-Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable

-Redundant power supply optional

-ANR technology to enhance the storage reliability when the network is disconnected

-Support cloud upgrade

Decoding Description DecodingFormat Ultra 265, H.265, H.264 DecodingCapability NVR508‑32E‑R:2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30 NVR508‑64E‑R:2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30 NVR508‑128E‑R:2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@25, 72 x 720P@30, 128 x D1 AudioCompression G.711A, G.711U Network Description IncomingBandwidth 384Mbps OutgoingBandwidth 384Mbps RemoteUsers 128 Protocols TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6 Browser(Plugin) NVR508‑32E‑R/NVR508‑64E‑R:IE(IE10/11)for Windows, Firefox(version 52.0 and above)for Windows, Chrome(version 45 and above)for Windows, Edge(version 79 and above)for Windows NVR508‑128E‑R:Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) Video/AudioInput Description RCAAudioInput 1‑ch Video/AudioOutput Description HDMIOutput NVR508‑32E‑R/NVR508‑64E‑R:HDMI1, HDMI2:4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz NVR508‑128E‑R:HDMI1, HDMI2:4K(3840x2160)/60Hz,4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGAOutput VGA1, VGA2:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz RCAAudioOutput 2‑ch LiveviewDisplay NVR508‑32E‑R:1/4/6/8/9/16/25/32 NVR508‑64E‑R/NVR508‑128E‑R:HDMI1/VGA1:1/4/6/8/9/16/25/36/64, HDMI2/VGA2:1/4/6/8/9/16/25/36 CorridorModeScreen 3/4/5/7/9/10/12/16/32 Two-wayAudio Description Two-wayAudio 1‑ch, RCA(Using the audio input and output) Snapshot Description FTP/Schedule/EventSnapshot 16‑ch snapshot, up to 1080P resolution Recording Description RecordingResolution 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF SynchronousPlaybackinLocal 16‑ch Smart Description VCADetectionbyIPC Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitorin
