TPLINK Archer Air E5 AX3000 Dual-Band Wi-Fi 6 Air Range Extender

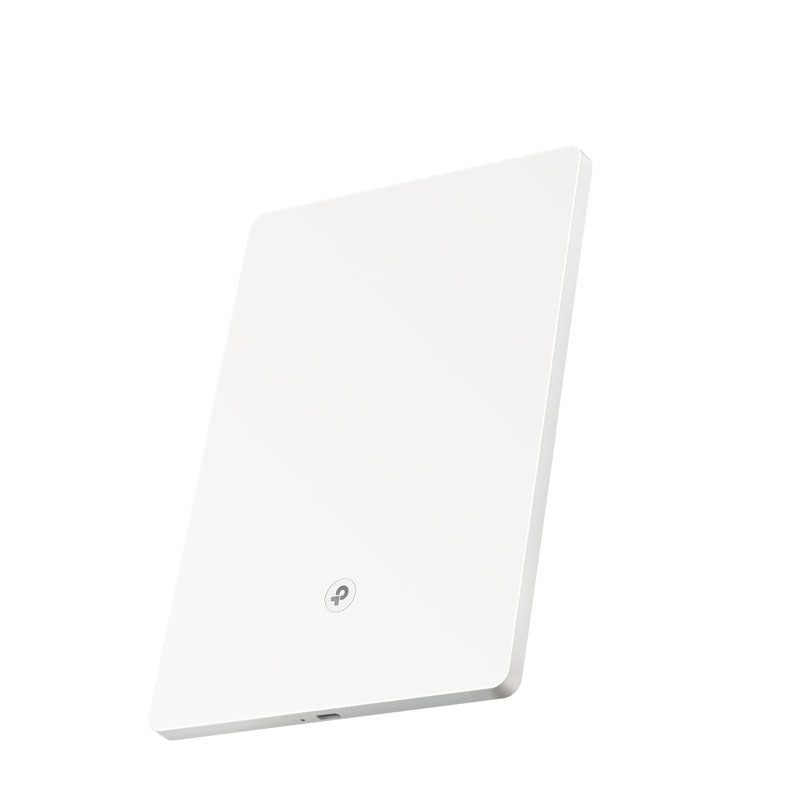

Faster Dual-Band AX3000 WiFi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.† Ultra-Thin and Minimalist Design: Has a compact size of 210×148×8 mm and is even thinner than a wall outlet. Better integrated with modern home interiors. Multiple Wall-Mounting Options:​​​​​​​ Designed to easily mount onto walls, coming with its own installation accessories. No need to purchase additional expensive mounts any more.** Smart Antennas: Use intelligent algorithms and different antenna arrays to ensure all-round stable signals even in duplex houses. Smart Roaming: Easily create an EasyMesh network for whole home WiFi coverage.§ Easy Setup and Use: Set up and manage your Wi-Fi through the TP-Link Tether app from your phone.

HARDWARE FEATURES

Interface - Button LED and WPS 2-in-1 Button Input Power 100-240V~50/60Hz Max. Power Consumption 17 W Antenna Internal Antennas

WIRELESS FEATURES

Wireless Standards • IEEE 802.11a/n/ac/ax 5 GHz • IEEE 802.11b/g/n/ax 2.4 GHz Frequency 2.4 GHz and 5 GHz Signal Rate • 574 Mbps at 2.4 GHz • 2402 Mbps at 5 GHz Working Modes Range Extender Reception Sensitivity 5GHz: 11ax HE20 MCS0：-97 dBm, 11ax HE20 MCS11：-66 dBm 11ax HE40 MCS0：-94 dBm, 11ax HE40 MCS11：-63 dBm 11ax HE80 MCS0：-91 dBm, 11ax HE80 MCS11：-60 dBm 11ax HE160 MCS0：-88 dBm, 11ax HE160 MCS11：-58 dBm

2.4GHz: 11ax HE20 MCS0：-95 dBm, 11ax HE20 MCS11：-65 dBm 11ax HE40 MCS0：-93 dBm, 11ax HE40 MCS11：-62 dBm Wireless Functions • Smart Antennas • Enable/Disable Wireless Radio • Access Control • LED Control • Power Schedule • Wi-Fi Coverage Adjustment Wireless Security • WPA3 • WPA2-PSK • WPA Transmission Power • CE: <20 dBm (2.4 GHz) <23 dBm (5.15 GHz~5.25 GHz)

• FCC: <30 dBm (2.4 GHz & 5.15 GHz~5.825 GHz) Mesh Technology EasyMesh-Compatible

OTHER

Network Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443   Protocol: TCP

DHCP Server IP address assignment (DHCP) • Port: 67   Protocol: UDP

App management Manage and configure device through app • Port: 20001   Protocol: TCP • Port: 20002   Protocol: UDP

OTHERS

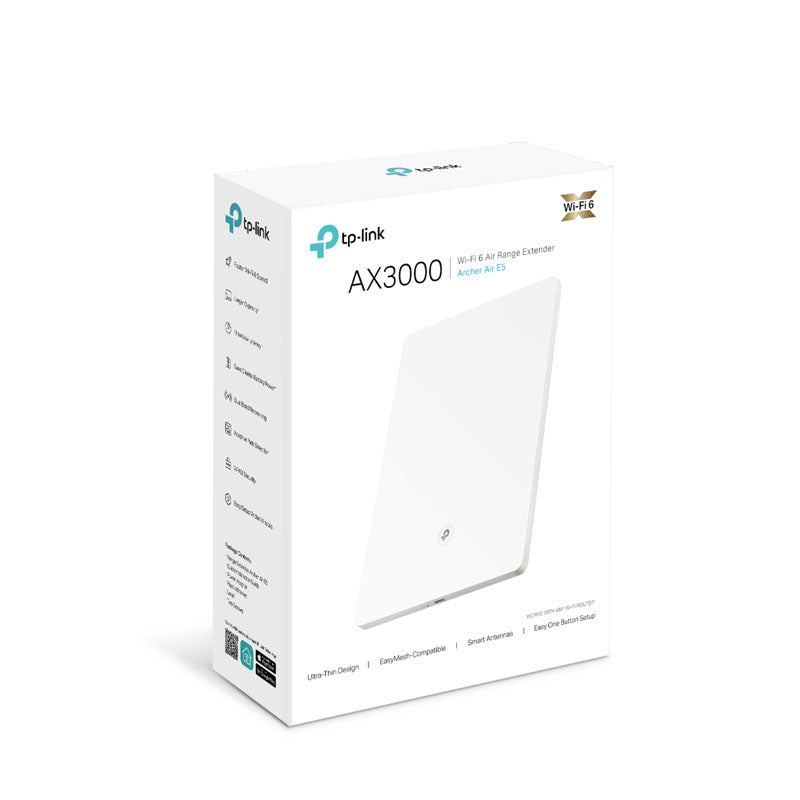

Certification FCC Package Content • Wi-Fi Range Extender Archer Air E5 • Quick Installation Guide • Power Adapter • Plastic Bracket • Level • Installation Accessories System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Environment • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Storage Temperature: -40℃~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
