TP-Link TL-SX3032F Omada 32-Port 10GE SFP+ L2+ Managed Switch

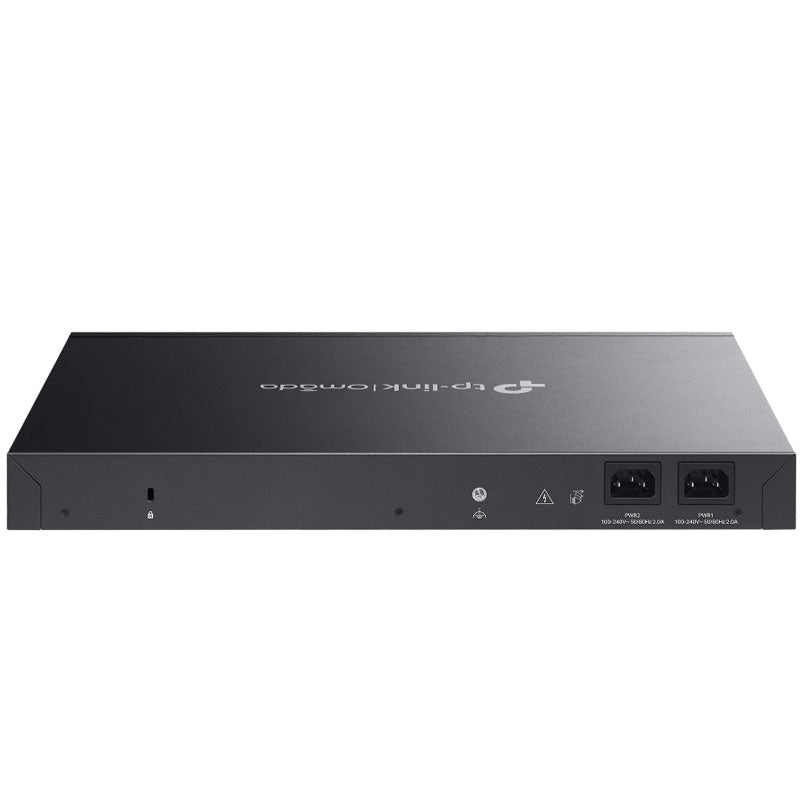

32× 10 Gbps SFP+ slots 640 Gbps switching capacity Two internal fixed power supply modules back each other up Centralized cloud management via the web or the Omada app† Standalone management via web, CLI, SNMP, and RMON Static Routing helps route internal traffic for higher efficiency VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM ERPS supports rapid protection and recovery in a ring topology Durable metal casing and rack-mountable design HARDWARE FEATURES Interface • 32× 1/10Gbps SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port Fan Quantity 2 internal fixed fans Physical Security Lock √ Power Supply • 1+1 Redundant Power Supply (internal fixed) • 100-240 V AC~50/60 Hz Dimensions ( W x D x H ) 17.3×13.0×1.7 in (440×330×44 mm) Mounting Rack Mountable Max. Power Consumption 49.4 W (220 V / 50 Hz) PERFORMANCE Switching Capacity 640 Gbps Packet Forwarding Rate 240 Mpps MAC Address Table 32 K Packet Buffer Memory 24 Mbit Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) L2 and L2+ Features • 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 510 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring L2 Multicast • Supports 4000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile Advanced Features • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Unified Configuration† • Reboot Schedule†

ISP Features: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow VLAN • VLAN Group (802.1q VLAN): Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN • GVRP • VLAN VPN (QinQ): VLAN Mapping, VLAN Replace • Voice VLAN Access Control List • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN Security • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm
