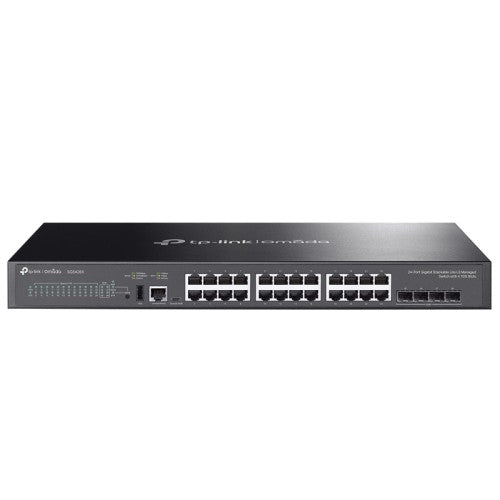

TP-Link TL-SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots

24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots 128 Gbps switching capacity per unit Physical Stacking up to 4 units for built-in redundancy and performance L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay Security Strategies: ACL, Port Security, DoS Defend, 802.1X ERPS supports rapid protection and recovery in a ring topology Centralized cloud management via the Omada SDN controller Standalone management via web, CLI, SNMP, and RMON HARDWARE FEATURES Interface • 24× 10/100/1000 Mbps RJ45 Ports • 4× 1/10 Gbps SFP+ Slots • 1× USB 2.0 Port • 1× RJ45 Console Port • 1× USB Type-C Console Port Fan Quantity Fanless Power Supply 100-240 V~50/60 Hz Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Mounting Rackmountable Max Power Consumption 19.90 W (110 V/60 Hz) Max Heat Dissipation 67.86 BTU/hr (110 V/60 Hz) PERFORMANCE Switching Capacity 128 Gbps per Unit Stacking • Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: Up to 40 Gbps (4 stacking ports) Packet Forwarding Rate 95.23 Mpps MAC Address Table 16 K Packet Buffer Memory 12 Mbit Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) L3 Features • IP Interfaces: - IPv4: Max 128, IPv6: Max 128 • Static Routing - IPv4 Max 512, IPv6: Max 128 • Host Route Table: Max 1,024 entries • RIP: Version v1/v2, Max 1,796 • OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450 • Static ARP: 512 static entries • Dynamic ARP: 3,600 dynamic entries • Proxy ARP • DHCP Server: - Max 64 IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN L2 and L2+ Features • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering Advanced Features • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†

ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow VLAN • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 60 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN Security • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 E
