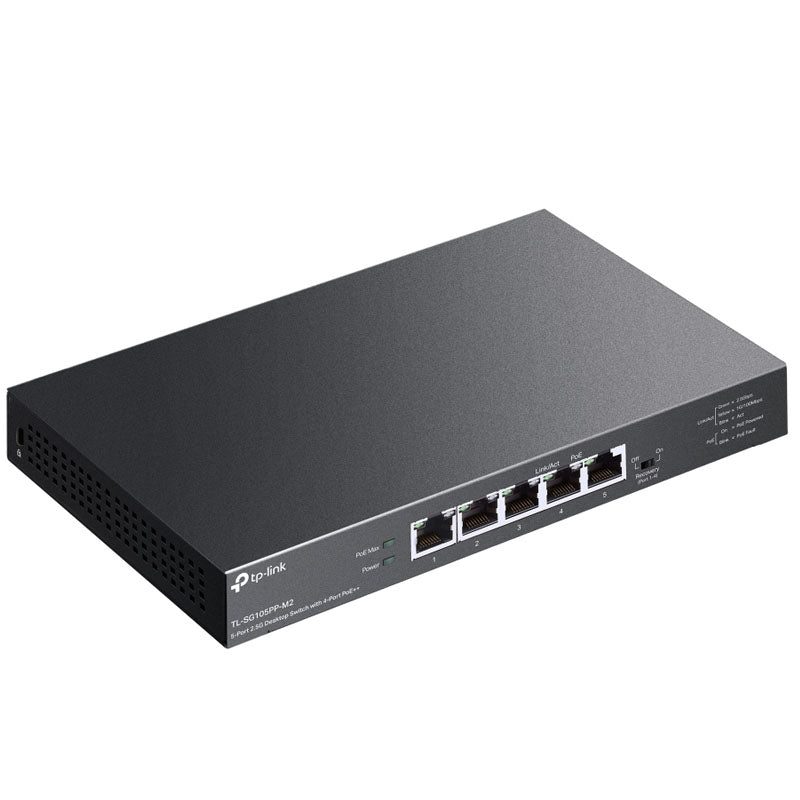

TP-Link TL-SG105PP-M2 5-Port 2.5G Desktop Switch with 4-Port PoE++

5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports With four PoE++ ports, transfers data and power on one single cable Works with IEEE 802.3af/at/bt type3 compliant PDs 802.1p/DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 60 W for each PoE++ port Supports PoE Power up to 123 W for all PoE ports* PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices Plug and Play, no configuration and installation required

HARDWARE FEATURES Interface • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A) Packet Forwarding Rate 18.6 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at/bt type3 compliant • PoE++ Ports: Ports 1–4 • Power Supply: 123 W Mac Address Table 4K Switching Capacity 25 Gbps Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm) Max. Power Consumption • 7.57 W (220/50 Hz. no PD connected) • 143.37 W (220/50 Hz. with 123 W PD connected) Max. Heat Dissipation • 25.81BTU/h (220 V/50 Hz with no PD connected) • 488.89 BTU/h (220 V/50 Hz with 123W PD connected) SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at/bt type3 Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • PoE Auto Recovery (Ports 1-4) Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Content • TL-SG105PP-M2 • Power Adapter • Installation Guide • Rubber Feet Environment • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
