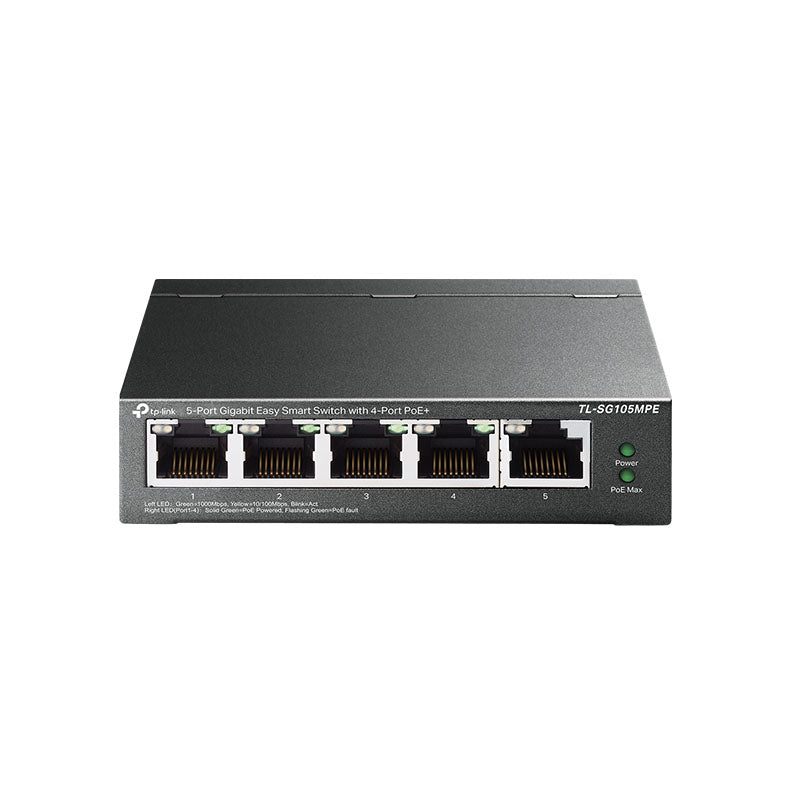

TP-Link TL-SG105MPE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at Interface Five 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 120 W Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) Max Power Consumption 4.34 W (220 V/50 Hz with no PD connected) 137.01 W (110 V/50 Hz with 120 W PD connected) Max Heat Dissipation 14.8 BTU/h (with no PD connected) 467.17 BTU/h (with 120 W PD connected) PERFORMANCE Switching Capacity 10 Gbps Packet Forwarding Rate 7.44 Mpps MAC Address Table 2 K Packet Buffer Memory 1 Mb Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery Extend Mode VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Management Web-based GUI Easy Smart Configuration Utility Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG105MPE Power Adapter Installation Guide Rubber Feet System Requirements Microsoft® Windows® for running Utility Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing
