- Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 7/6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.
- Loop Prevention: Ensures a stable and reliable network by automatically detecting and blocking network loops.
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play. Allows for easy deployment without the need for a technician.
- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
|---|---|
| Interface | 5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 9 VDC / 0.6 A) |
| LED | • Power • Link/Act Indicators |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max. Power Consumption | 5.64 W |
| Max. Heat Dissipation | 19.18 BTU/h |
| Packet Buffer Memory | 8 Mbit |
|---|---|
| Jumbo Frame | 12 KB |
| Switching Capacity | 25 Gbps |
| Packet Forwarding Rate | 18.6 Mpps |
| MAC Address Table | 4 K |
| Advanced Features | • Loop Prevention • 802.3X Flow Control • 802.1p/DSCP QoS • IGMP Snooping |
|---|---|
| Transmission Method | Store and Forward |
| Certification | CE, FCC ,RoHS |
|---|---|

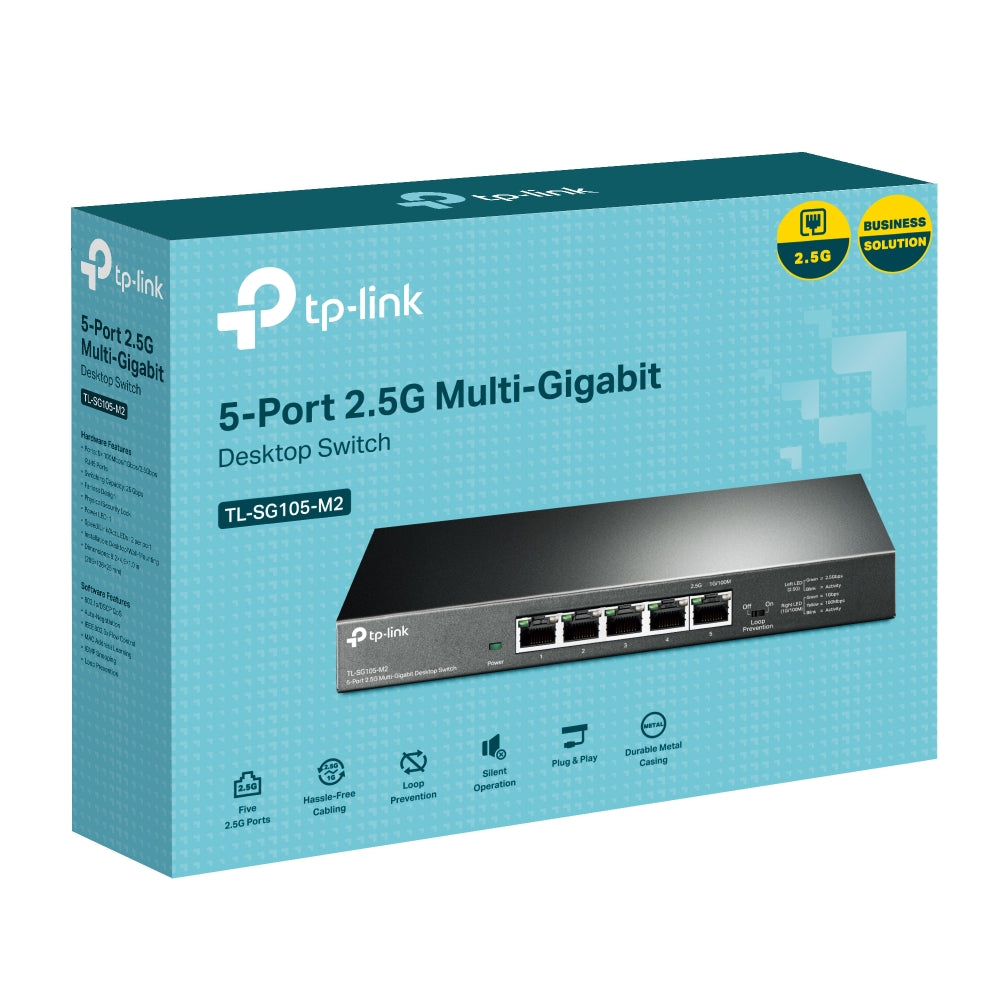

| Package Content | • 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: -5–40 °C (23–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
