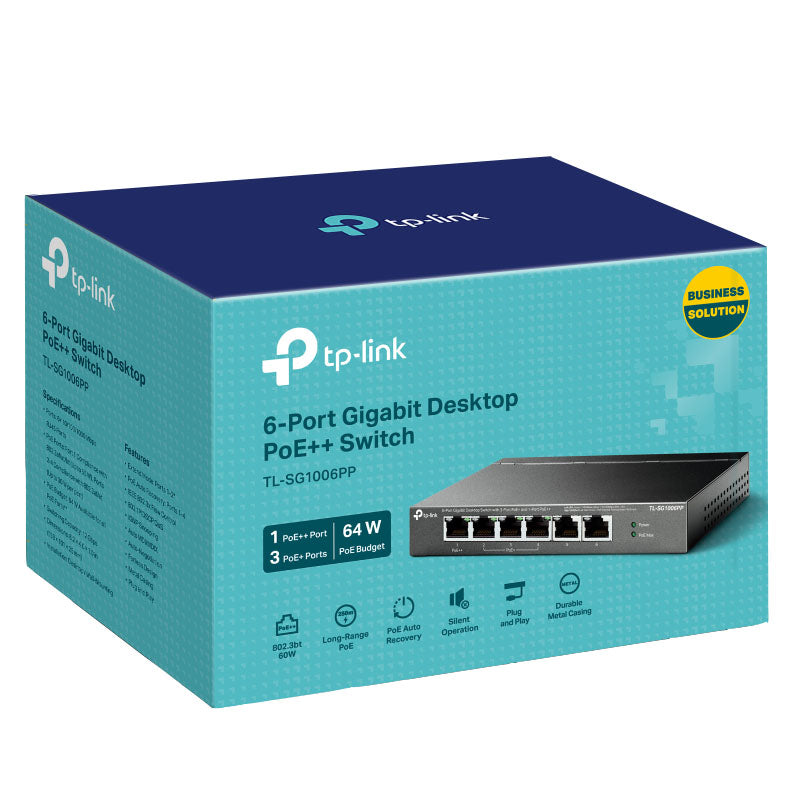

TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

6× 10/100/1000 Mbps RJ45 ports With one PoE++ port and three PoE+ ports, transfers data and power on one single cable Works with IEEE 802.3af/at/bt compliant PDs 802.1p/DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port Supports PoE Power up to 64 W for all PoE ports* Up to 250m data and power transmitting range under Extend Mode** PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices Plug and Play, no configuration and installation required

HARDWARE FEATURES Interface • 6× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate 8.928 Mpps PoE Ports (RJ45) • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at • Power Supply: 64 W Mac Address Table 4K Switching Capacity 12 Gbps Dimensions ( W x D x H ) 6.2x4.0x1.0 in (158x101x25 mm) Max. Power Consumption • 4.75 W (220/50 Hz. no PD connected) • 71.46 W (220/50 Hz. with 64 W PD connected) Max Heat Dissipation • 16.20 BTU/h (220/50 Hz. no PD connected) • 243.68 BTU/h (220/50 Hz. with 64 W PD connected) SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Content • TL-SG1006PP • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
