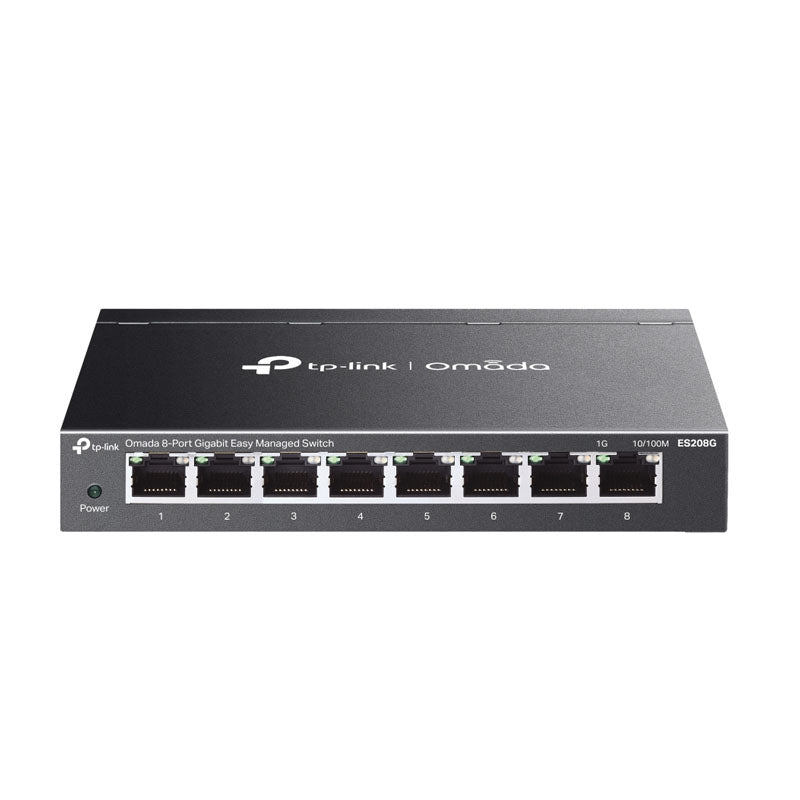

TP-Link TL-ES208G Omada 8-Port Gigabit Easy Managed Switch

8× 10/100/1000Mbps RJ45 ports Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features Centralised Cloud Management via the web or the Omada app† VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking Automatic Loop Prevention and IGMP Snooping Fanless design for silent operation Durable metal casing and desktop/wall mounting design

HARDWARE FEATURES Interface • 8× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX Fan Quantity Fanless Installation • Desktop • Wall Mount Physical Security Lock √ Power Supply DC Power Adapter (Output: 5VDC / 0.6A) Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) Surge Protection ±6kV PERFORMANCE Switching Capacity 16 Gbps Packet Forwarding Rate 11.9 Mpps MAC Address Table 8K Packet Buffer Memory 4 Mbit Jumbo Frame 15 KB SOFTWARE FEATURES Quality of Service • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ L2 Features • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method Store-And-Forward MANAGEMENT Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† OTHERS Certification FCC, CE, RoHS Package Contents • ES208G • Power Adapter • Rubber Feet • Installation Guide Environment • Operating Temperature: -5℃~45℃ (23℉~113℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
