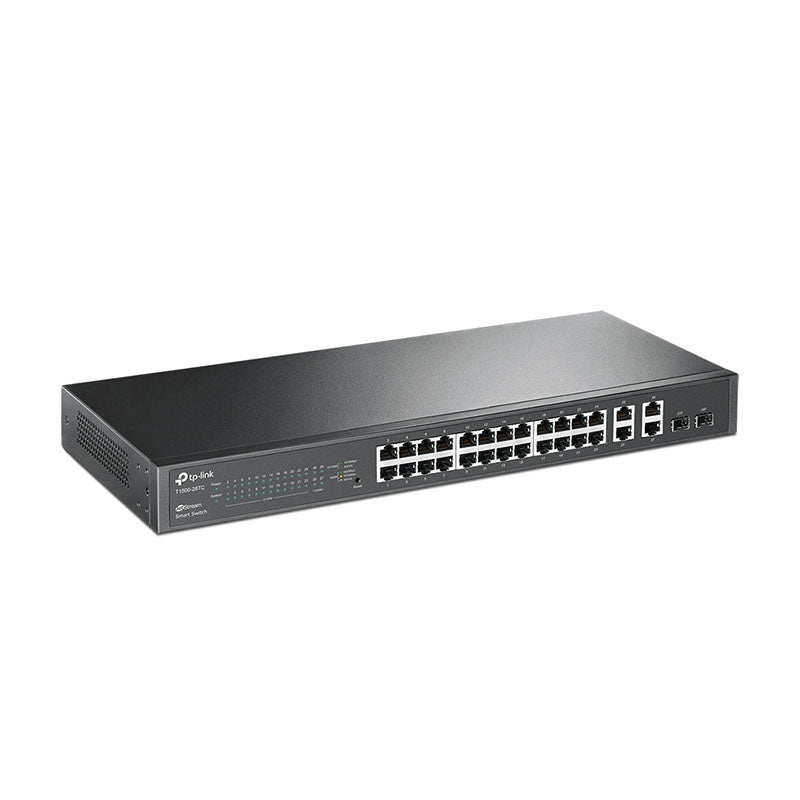

TP-Link T1500-28TC (TL-SL2428) JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch

HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p Interface 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF Fan Quantity Fanless Power Supply 100~240VAC, 50/60Hz Power Consumption Maximum: 10.5W (220V/50Hz) Dimensions ( W x D x H ) 17.3*7.1*1.7 in.(440*180*44 mm) PERFORMANCE Bandwidth/Backplane 12.8Gbps Packet Forwarding Rate 9.5Mpps MAC Address Table 8K Jumbo Frame 9216 Bytes SOFTWARE FEATURES Quality of Service 802.1p CoS/DSCP priority 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN L2 Features IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control LLDP, LLDP-MED VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) Access Control List L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports Security Port Security DHCP Snooping IP-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1 Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend Management Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image OTHERS Certification CE, FCC, RoHS Package Contents T1500-28TC Power Cord Installation Guide Resource CD Rackmount Kits Rubber Feet System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
