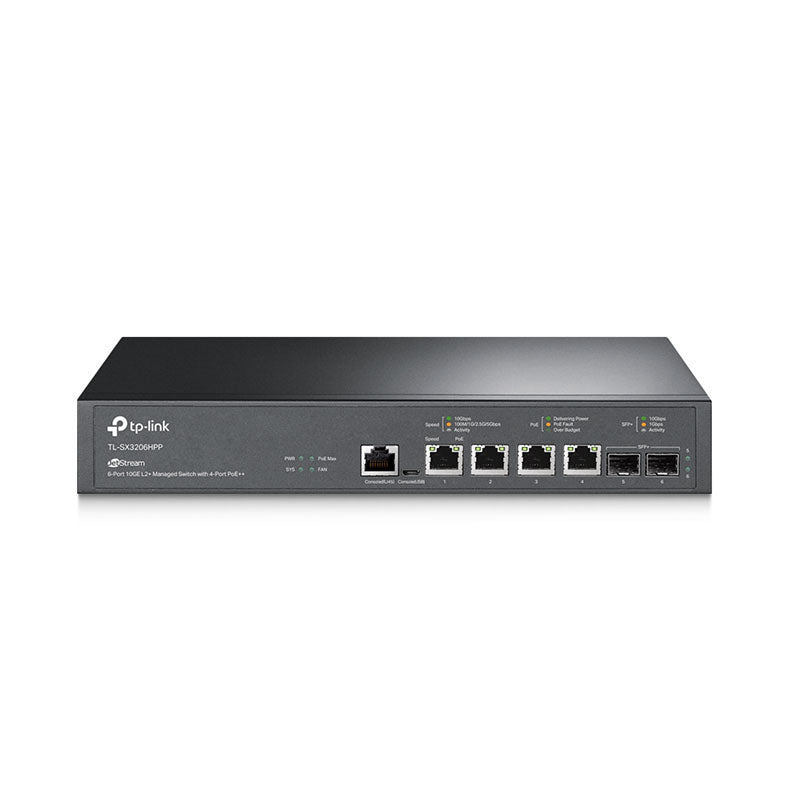

TP-Link SX3206HPP JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

HARDWARE FEATURES Interface • 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports • 2× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port Fan Quantity 2 Power Supply 100-240 V AC~50/60 Hz PoE Ports (RJ45) • Standard: 802.3bt/at/af compliant • PoE+ Ports: 4 Ports, up to 60 W per port • Power Budget: 200 W Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in (294× 180 × 44 mm) Mounting • Rack Mountable • Desktop Max Power Consumption • 27.29 W (110V/60Hz) (no PD connected) • 244.90 W (110V/60Hz) (with 200 W PD connected) Max Heat Dissipation • 93.12 BTU/h (110 V/60 Hz) (no PD connected) • 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected) PERFORMANCE Switching Capacity 120 Gbps Packet Forwarding Rate 89.28 Mpps MAC Address Table 32 K Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark L3 Features • 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay L2 and L2+ Features • Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile Advanced Features • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule VLAN • VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 10 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN Access Control List • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN Security • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard:
