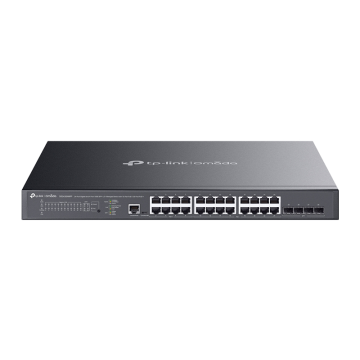

TP-Link SG3428XMPP Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

4× 10 Gbps SFP+ slots 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port) 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port) 500 W total PoE budget* Centralized cloud management via the web or the Omada app† Standalone management via web, CLI, SNMP, and RMON Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM ERPS supports rapid protection and recovery in a ring topology Durable metal casing and rack-mountable design HARDWARE FEATURES Interface • 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+) • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port Fan Quantity 3 Physical Security Lock √ Power Supply 100-240 V AC~50/60 Hz PoE Ports (RJ45) • Standard: 802.3at/af/bt compliant • PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port) • PoE+ Ports: Ports 9~24 (up to 30 W PoE Output per Port) • Power Budget: 500 W* Dimensions ( W x D x H ) 17.3×13.0×1.7 in (440×330×44 mm) Mounting Rack Mountable Max Power Consumption 605.5W (110V/60Hz) ( with 500W PD connected) Max Heat Dissipation 2064.96 BTU/hr (110 V/60 Hz) (with 500W PD connected) PERFORMANCE Switching Capacity 128 Gbps Packet Forwarding Rate 95.23 Mpps MAC Address Table 16 K Packet Buffer Memory 12 Mbit Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) L2 and L2+ Features • 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring L2 Multicast • Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile Advanced Features • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†

ISP Features**: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow VLAN • VLAN Group: Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN: VLAN Mapping, VLAN Replace • Voice VLAN Access Control List • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Lim
