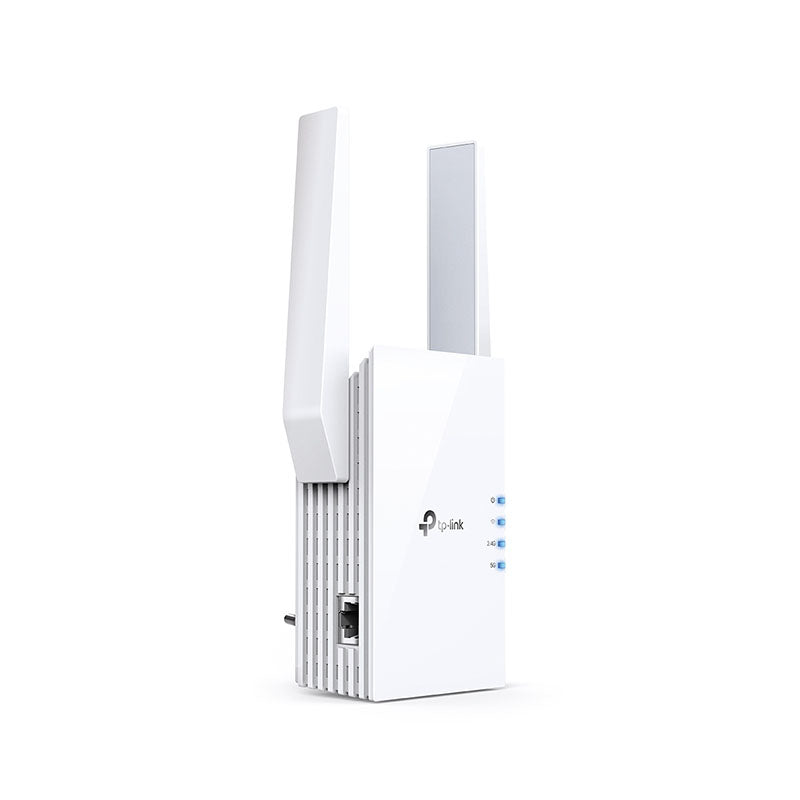

TP-Link RE505X AX1500 Wi-Fi 6 Range Extender

WIRELESS Working Modes Range Extender/Access Point HARDWARE FEATURES Ports 1 Gigabit Ethernet Port Button WPS Button, Reset Button Input Power 100-240V~50/60Hz Power Consumption 10W Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm) Antenna 2 External Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz Frequency 2.4GHz and 5GHz Signal Rate 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz Working Modes Range Extender/Access Point Reception Sensitivity 5GHz:

11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics Wireless Security 64/128-bit WEP, WPA/WPA2-PSK encryptions Transmission Power CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm OTHERS Certification FCC, RoHS Package Contents Wi-Fi Range Extender RE505X Quick Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Certifications FCC, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
