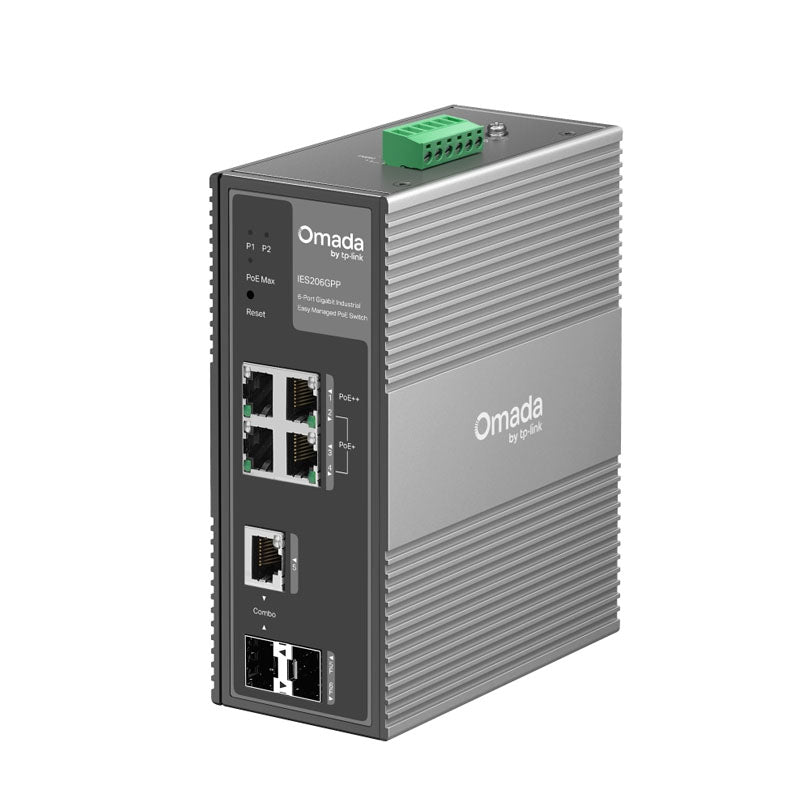

TP-Link IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+) 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot 120W Power Budget* with up to 60W for PoE++ Port Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP Centralized Cloud Management via the Web or Omada App† Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

HARDWARE FEATURES Interface • 1× 10/100/1000 Mbps PoE++ RJ45 Ports • 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX Fan Quantity Fanless Installation • DIN-rail mounting • Wall mounting Power Supply 12-57V 1+1 Redundant DC Power Input PoE Ports (RJ45) • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A - 21V / 3.5A)) - 120W (Input: 21V / 6.5A - 57V / 2.3A) Dimensions ( W x D x H ) 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) Surge Protection • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports PERFORMANCE Switching Capacity 12 Gbps Packet Forwarding Rate 8.93 Mpps MAC Address Table 8K Packet Buffer Memory 4 Mbit Jumbo Frame 15 KB SOFTWARE FEATURES Quality of Service • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control L2 Features • Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method Store-And-Forward Management Features Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† OTHERS Certification FCC, CE, RoHS Package Content • IES206GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installati
