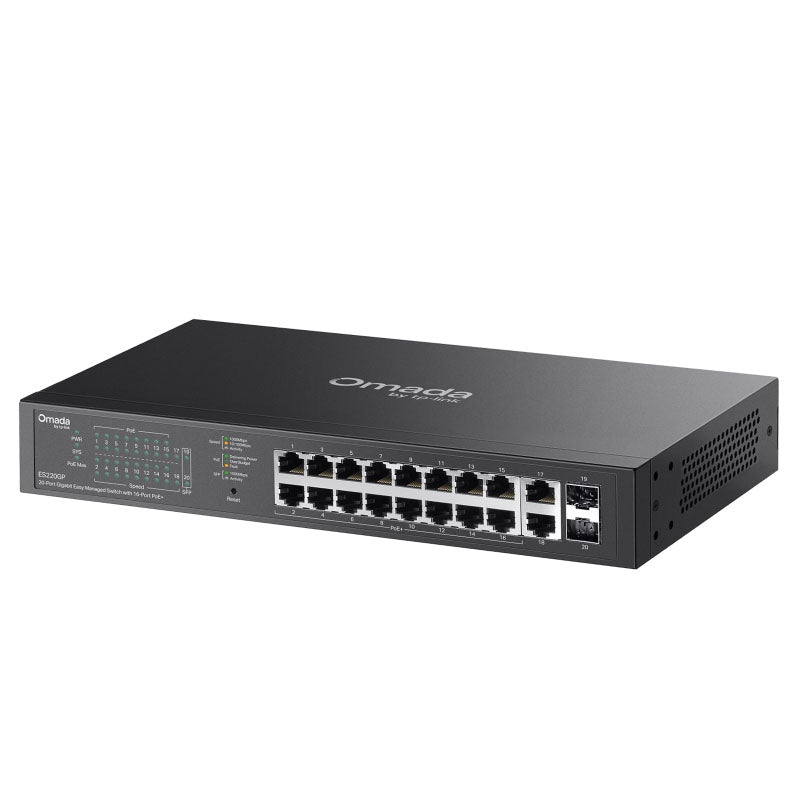

TP-Link ES220GP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

20× 10/100/1000Mbps RJ45 ports (16× 802.3af/at-compliant PoE+) 2× Gigabit SFP Slots 150W PoE Budget, with up to 30W for each PoE port* Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features Centralized Cloud Management via the web or the Omada app† Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking Automatic Loop Prevention, VLAN, and IGMP Snooping Durable metal casing and rack mounting design

HARDWARE FEATURES Interface • 18× 10/100/1000 Mbps RJ45 ports • 2× Gigabit SFP slots Fan Quantity Fanless Installation Desktop/Rackmount Installation Physical Security Lock √ Power Supply 100-240V~ 50/60Hz 2.5A PoE Ports (RJ45) • Standard: IEEE 802.3: Ethernet Media Access Control (MAC) Protocol; IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical ffber); IEEE 802.3x: Flow Control IEEE 802.1p: Trafffc Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) • PoE Ports: 16 Ports • PoE Budget: 150W available for all PoE+ ports, 30W max per port Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm) Surge Protection Ethernet port: ±6 kV in common mode Power port: ±4 kV in differential mode; ±4 kV in common mode PERFORMANCE Switching Capacity 40 Gbps Packet Forwarding Rate 29.76 Mpps MAC Address Table 8K Packet Buffer Memory 4 Mbit Jumbo Frame 15 KB SOFTWARE FEATURES Quality of Service • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ L2 Features • Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 8 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Trafffc Statistics • 802.1ab LLDP L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method Store-And-Forward Management Features Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI • DHCP Client • Cable Diagnostics OTHERS Certification FCC, CE, RoHS Package Content • ES220GP
