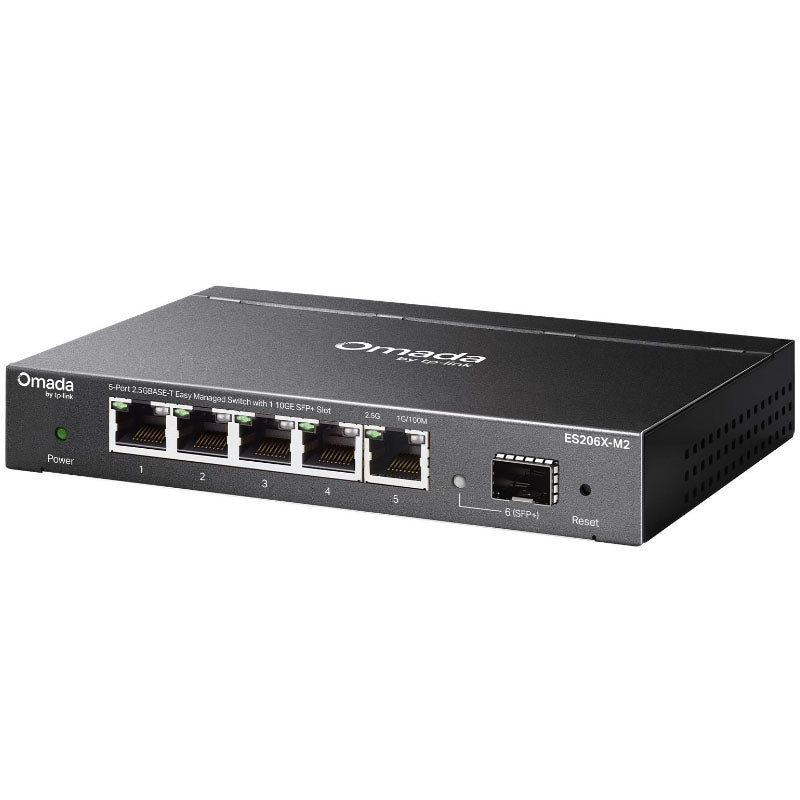

TP-Link ES206X-M2 Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot

5× 2.5 Gbps RJ45 Ports  1× 10 Gbps SFP+ Slot  Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features  Centralized Cloud Management via the web or the Omada app†  VLAN, Port Isolation, Cable Test△, QoS△ for reliable networking  Automatic Loop Prevention and IGMP Snooping  Fanless design for silent operation  Durable metal casing and desktop/wall mounting designHighlightsES206X-M2Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot ES206X-M2 Technical Specifications Model Info Model ES206X-M2 General Interface 5× 100 Mbps/1Gbps/2.5Gbps RJ45 Ports 1× 10 Gbps SFP+ Slot Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3z, 802.3ae, 802.3aq, 802.3x, 802.1p, 802.1q, 802.1ab Performance Switching Capacity 45 Gbps Packet Forwarding Rate 33.48 Mpps MAC Address Table 16K Packet Buffer 640 KB Jumbo Frame 10 KB Physical & Environment Dimensions (W x D x H) 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) Power Supply 12 VDC / 1 A Max Power Consumption 5.63 W (110V/60Hz) Fan Quantity Fanless Operating Temperature -5°C to 40°C (23°F to 104°F) Surge Protection 6 kV (Ethernet Ports) SDN Support Management Modes Hardware/Software/Cloud-Based Controller support Features Automatic Device Discovery, Batch Config, Batch Firmware Upgrading, Unified Configuration L2 Features & Multicast L2 Features Static Link Aggregation (2 groups, 4 ports/group), Loopback Detection, 802.3x Flow Control, Port Mirroring L2 Multicast IGMP Snooping (v1/v2/v3), Fast Leave VLAN & QoS VLAN MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN (Max 32 groups, 4K VID) QoS 8 Priority Queues, 802.1p DSCP Priority, WRR Schedule Mode, Bandwidth Control, Storm Control Management Features Management Web-based GUI, DHCP Client, Cable Diagnostics
