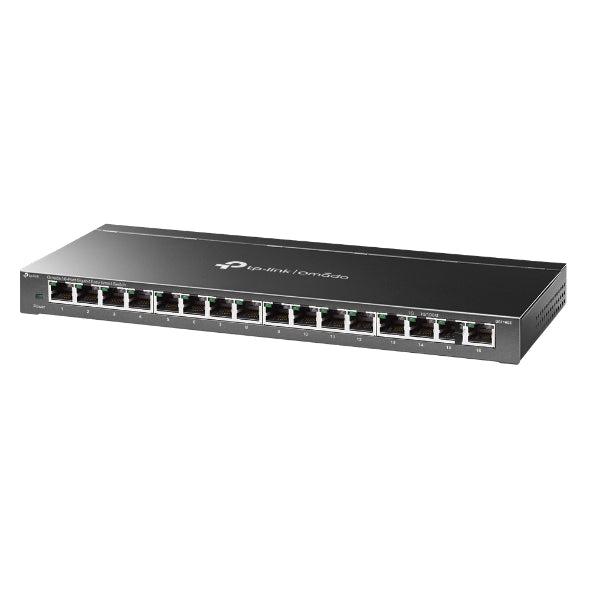

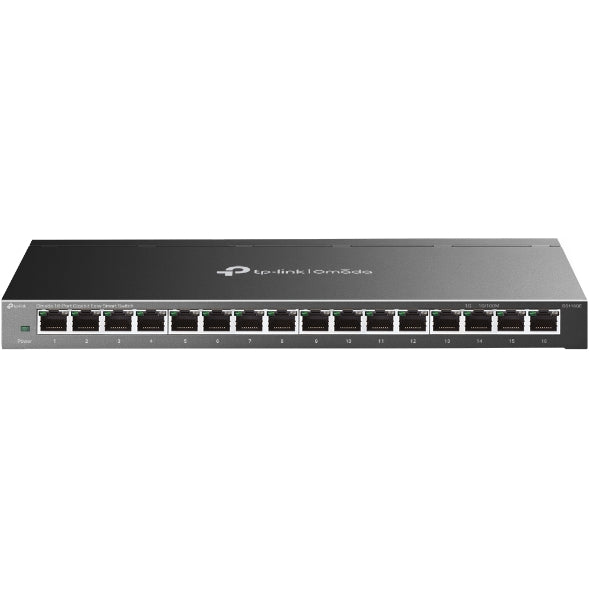

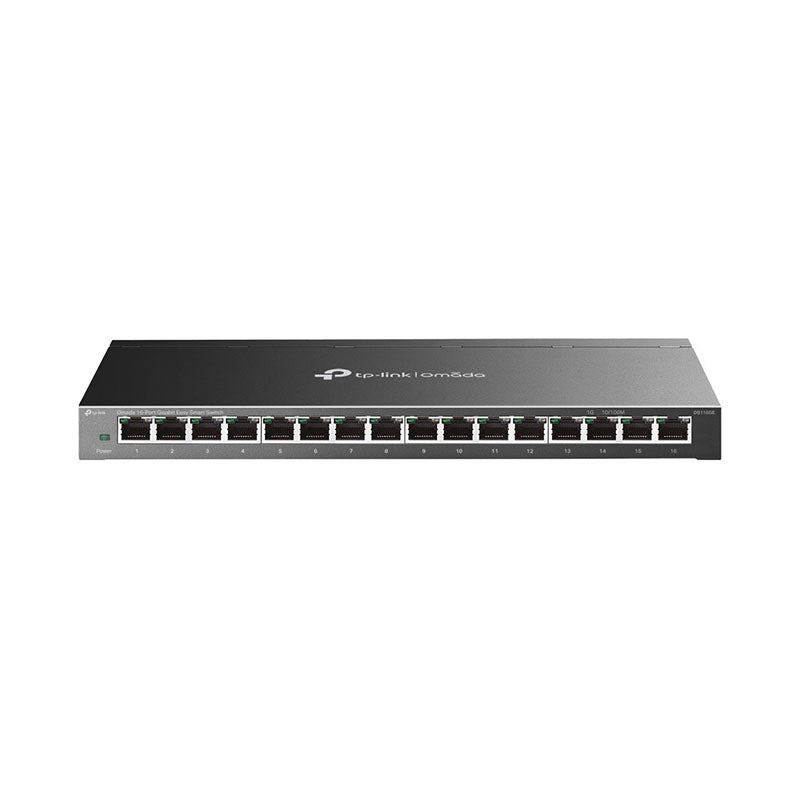

TP-Link DS116GE Omada 16-Port Gigabit Easy Smart Switch (Derive from TL-SG116E)

HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface • 16× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 12VDC/1.0A) Dimensions ( W x D x H ) 11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm) Max Power Consumption 9.19W(220V/50Hz) Max Heat Dissipation 31.36BTU/h PERFORMANCE Switching Capacity 32Gbps Packet Forwarding Rate 23.81Mpps MAC Address Table 8K Packet Buffer Memory 4.1Mb Jumbo Frame 9KB SOFTWARE FEATURES Quality of Service • Port/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control L2 Features • IGMP Snooping • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention VLAN • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents • DS116GE • Power Cord • Installation Guide • Rubber Feet System Requirements Microsoft® Windows® for running Utility Environment • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
