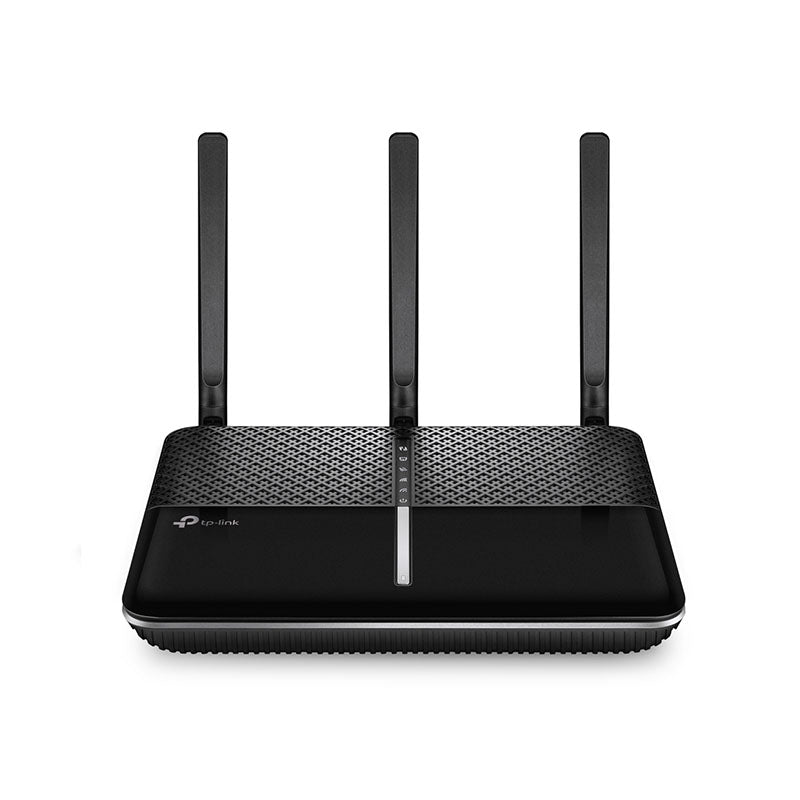

TP-Link Archer A10 AC2600 MU-MIMO Wi-Fi Router_Refurbished

SECURITY Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network VPN Server OpenVPN PPTP WiFi Encryption WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) WIRELESS Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AC2600 5 GHz: 1733 Mbps (802.11ac) 2.4 GHz: 800 Mbps (802.11n) WiFi Range 3 Bedroom Houses 4× Fixed High-Performance Antennas (External and Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

4T4R Multiple streams in the same band strengthen the fault tolerance in transmission WiFi Capacity Medium Dual-Band Allocate devices to different bands for optimal performance

4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness Improves network efficiency by limiting excessive occupation Working Modes Router Mode Access Point Mode HARDWARE Processor Dual-Core CPU Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports Buttons Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button Power 12 V ⎓ 1.5 A SOFTWARE Protocols IPv4 IPv6 Parental Controls URL Filtering Time Controls WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device Cloud Service OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Virtual Servers Port Forwarding Port Triggering DMZ UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Tether App Webpage OTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing TEST DATA WiFi Transmission Power CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm WiFi Reception Sensitivity 5GHz: 11ac80M MCS9: -64dBm, 11ac80M MCS0: -89dBm 11ac40M MCS9: -68dBm, 11ac40M MCS0: -92dBm 11ac20M MCS8: -72dBm, 11ac20M MCS0: -95dBm 54M: -78dBm, 6M: -96dBm 2.4GHz: 11n40M MCS9: -68dBm, 11n40M MCS0: -93dBm 11n20M MCS8: -73dBm, 11n20M MCS0: -96dBm 54M: -78dBm, 6M: -97dBm PHYSICAL Dimensions (W×D×H) 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm) Package Contents Wi-Fi Router Archer A10 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
