TL223 13'' - 27" Tilt Monitor Mount with Max VESA 100x100
TL-223 is one of the Classic products and is designed to fit any 13’’-27’’ Flat Panel TV up to 30kgs/66lbs. Simple construction equipped with full decorative cover routes cables inside the arm for a clean look. Adjustable swivel arm and tilt plate provide maximum viewing flexibility. VESA is compatible with 50×50, 75×75, and 100×100.
-
Free-tilting & Swiveling Design: for multiple TV viewing angles
-
Easy-Grip Knobs: for quick tilt and lock
-
Sturdy Steel Construction: provides a solid and long-lasting performance
| Weight | 4 lbs |
|---|---|
| Dimensions | 15 × 5 × 3 in |
| Model Number |
TL-223 |
| Brand |
|
| Color |
Black |
| Materials |
Steel |

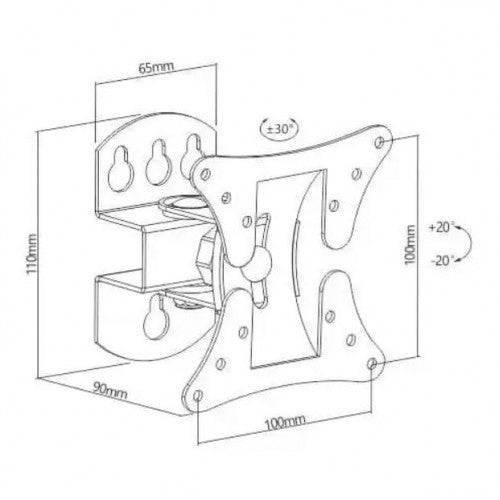

| Product Size |
90x115x115mm (3.5"x4.5"x4.5") |
| Profile |
90mm (3.5") |
| TV/Monitor Sizes |
13"-27" |
| Weight Capacity |
30 KG / 66 lbs |
| VESA Standards |
50×50,75×75,100×100 |
| Motion Type |
Tilt |
| Swivel Angle |
+30° ~-30° |
| Tilt Angle |
-20° to +20° |
