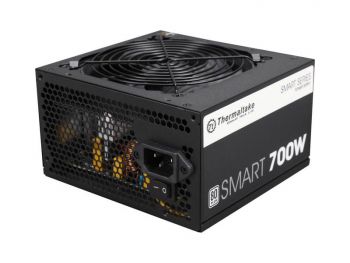

Thermaltake Smart Series 700W SLI/CrossFire Ready Continuous Power ATX12V V2.3 / EPS12V 80 PLUS Certified Active PFC Power Supply Haswell Ready

$93.29

Hurry up! Sales Ends In

Hurry! Only 5 Left in Stock!

Real time 23 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION



Intel ATX 12V 2.3

Non-Modular

80 PLUS Certified

100 - 240 V 50/60 Hz

+3.3V@24A, +5V@17A, +12V@54A, -12V@0.5A, +5VSB@2.5A



General

Bran: Thermaltake

Series: SMART Series

Mode: PS-SPD-0700NPCWUS-W

Details

Type: Intel ATX 12V 2.3

Maximum Power : 700 W

Fans: 1 x 120mm Fan (1800 RPM +/- 10%)

PFC: Active

Main Connector: 24Pin

+12V RailsL: Single

PCI-Express Connector: 2 x 6+2-Pin

SATA Power Connector: 6

SLI: SLI Ready

Haswell Support Ready

CrossFire: CrossFire Ready

Max PSU Length: 140 mm

Modular: Non-Modular

Power Good Signal: 100-500ms

Hold-up Time: 16msec (minimum) within 60% load

Efficiency : 80 - 87% efficiency @ 20 - 100% load

Energy-Efficient: 80 PLUS Certified

Input Voltage: 100 - 240 V

Input Frequency Range: 50/60 Hz

Input Current: 12 A (Max.)

Output +3.3V@24A, +5V@17A, +12V@54A, -12V@0.5A, +5VSB@2.5A

MTBF  >100,000 Hours

Approvals: CE, CB, TUV, UL, FCC

Connectors:

1 x 20+4-pin ATX

1 x 4+4-pin EPS

2 x 6+2 PCI-E

6 x SATA

5 x Peripheral

1 x Floppy

Features:

Compliance with Intel ATX12V 2.31 & EPS12V 2.92 standards

80 PLUS Certified - 80% efficiency under typical load

Single +12V rail Design

Supports Intel C6 Status for improved efficiency

Ultra-quiet 120mm fan with intelligent temperature control

Hardlined cables for straight forward installation

Dimension & Weight

Dimensions 3.39" x 5.91" x 5.51"

Weight 4.65 lbs.

Details

PFC: Active

SL: Ready

CrossFire: Ready

Connectors

SATA Power Connector: 6

Thermaltake Smart Series 700W SLI/CrossFire Ready Continuous Power ATX12V V2.3 / EPS12V 80 PLUS Certified Active PFC Power Supply Haswell Ready

Thermaltake Smart Series 700W SLI/CrossFire Ready Continuous Power ATX12V V2.3 / EPS12V 80 PLUS Certified Active PFC Power Supply Haswell Ready

$93.29
