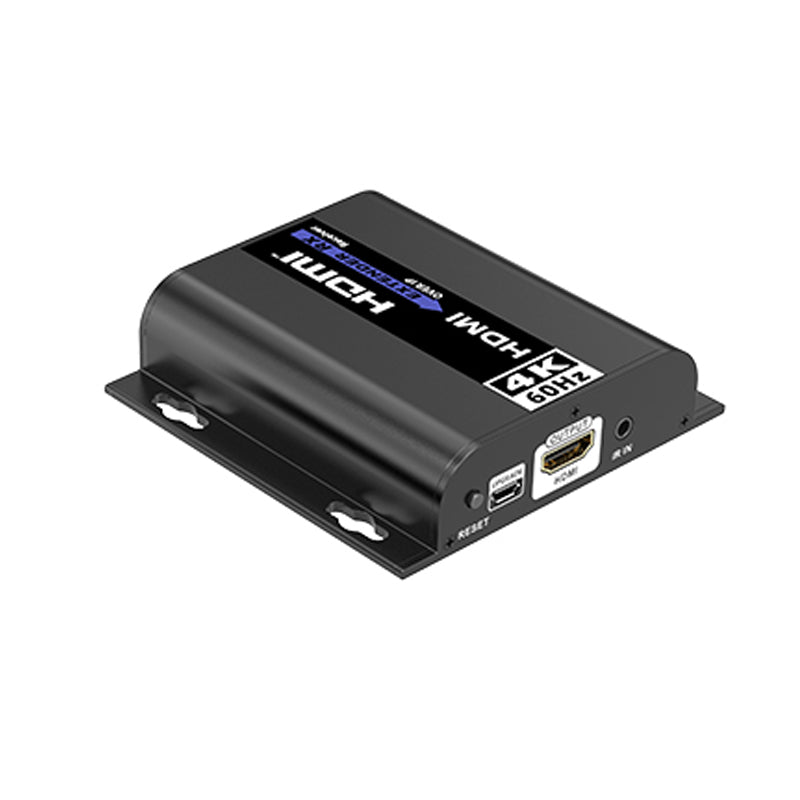

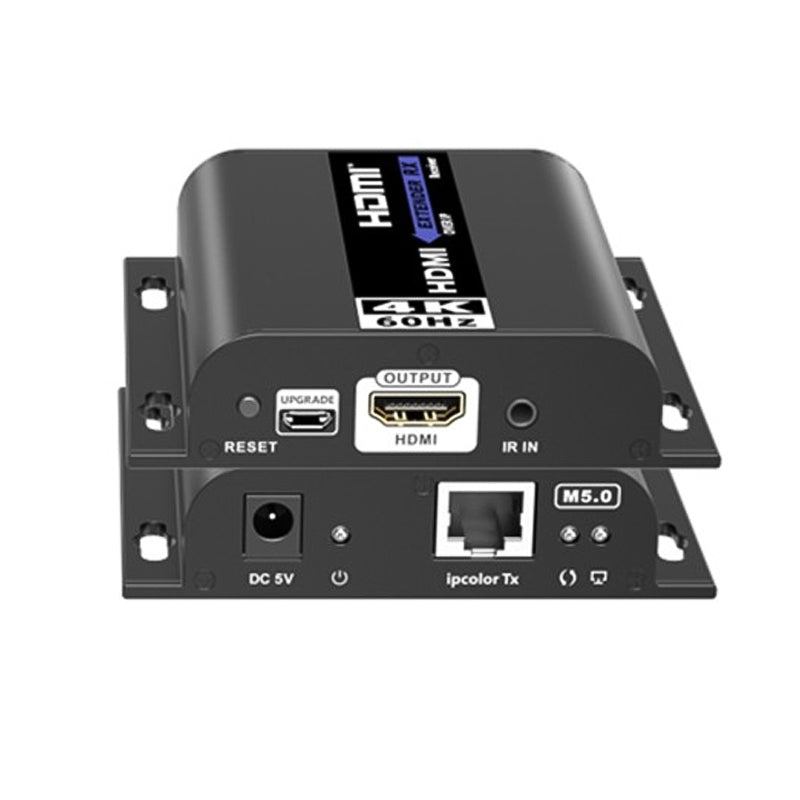

Speedex LKV483-M5.0 4K@60Hz HDMI Over IP Cat5E/Cat6 Extender up 120M/200m*, ipcolor Multimedia Management System, Matrix with APP Control, Supports one-to-one ,one-to-many, many-to-one and many-to-many connection_Receiver Unit (RX)
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one ,one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports IR pass-back(20～60KHz).
6. Supports 256 signal source inputs and 256 signal outputs.
7. Signal sources can be switched via the APP for flexible many-to-many matrix configuration.
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
HDMI length: ≤ 5m
Maximum transfer rate: 18Gbps
Compatibility: HDMI 2.0，HDCP 1.4/HDCP 2.2
Resolutions: 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600
Connection types: One-to-one connection One-to-many connection Many-to-one connection Many-to-many connection Switch cascading
Transmission distance: CAT5 80m / CAT5E 100m / CAT6 120m
Transmission latency: 1080P: 80~130ms, 4K@60Hz: 150~220ms
HDMI output: LPCM 2.0
IR receiving range: ≤ 5m
IR frequency: 20kHz~60kHz
Power Supply: DC 5V/1A
Power Consumption: TX ≤ 3.5W，RX ≤ 2.5W
Working temperature: - 20℃~60℃
Storage temperature: - 30℃~70℃
Humidity: 0~90%RH (no condensation）
Housing: Aluminium
Weight: TX：156g，RX：154g
Color: Black
Dimensions: 96.8(L)*94(W)*23.7(H)mm
Protection: ESD protection:
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
APP download: iMMS https://www.ipcolor.org/download.html
