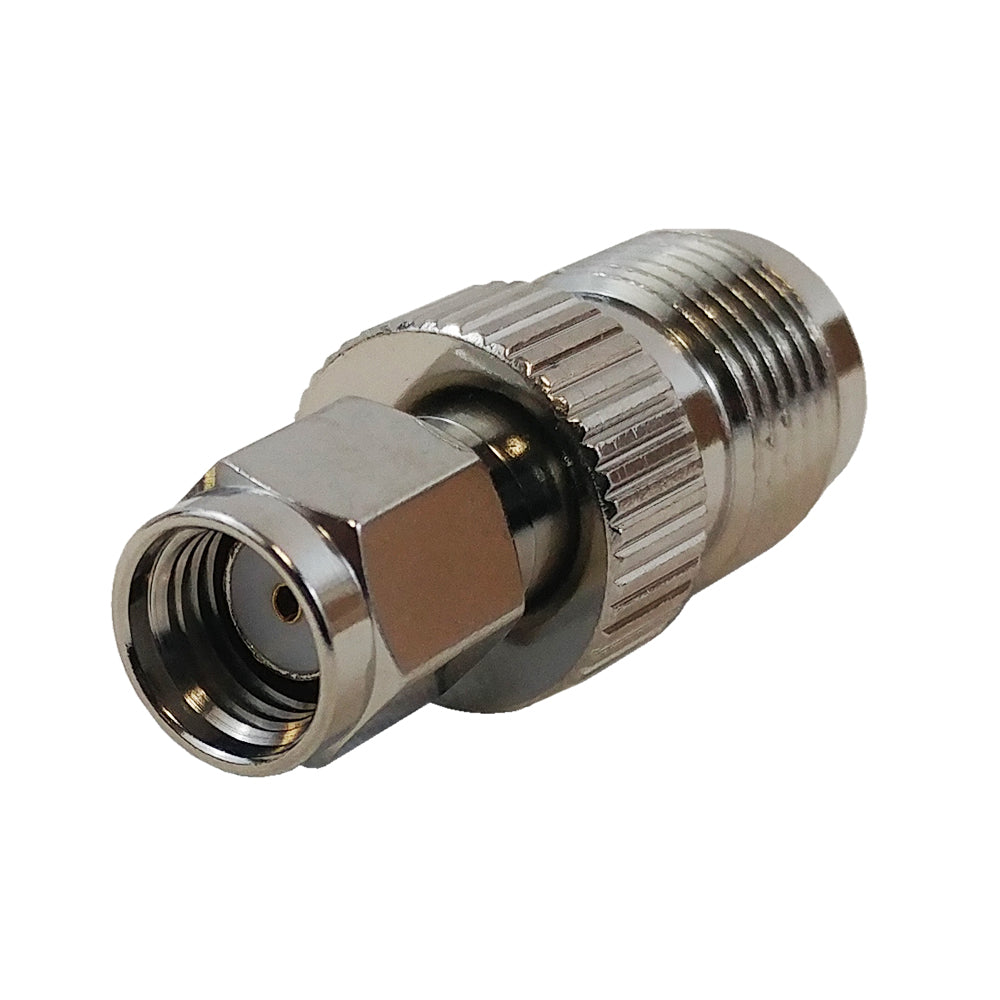

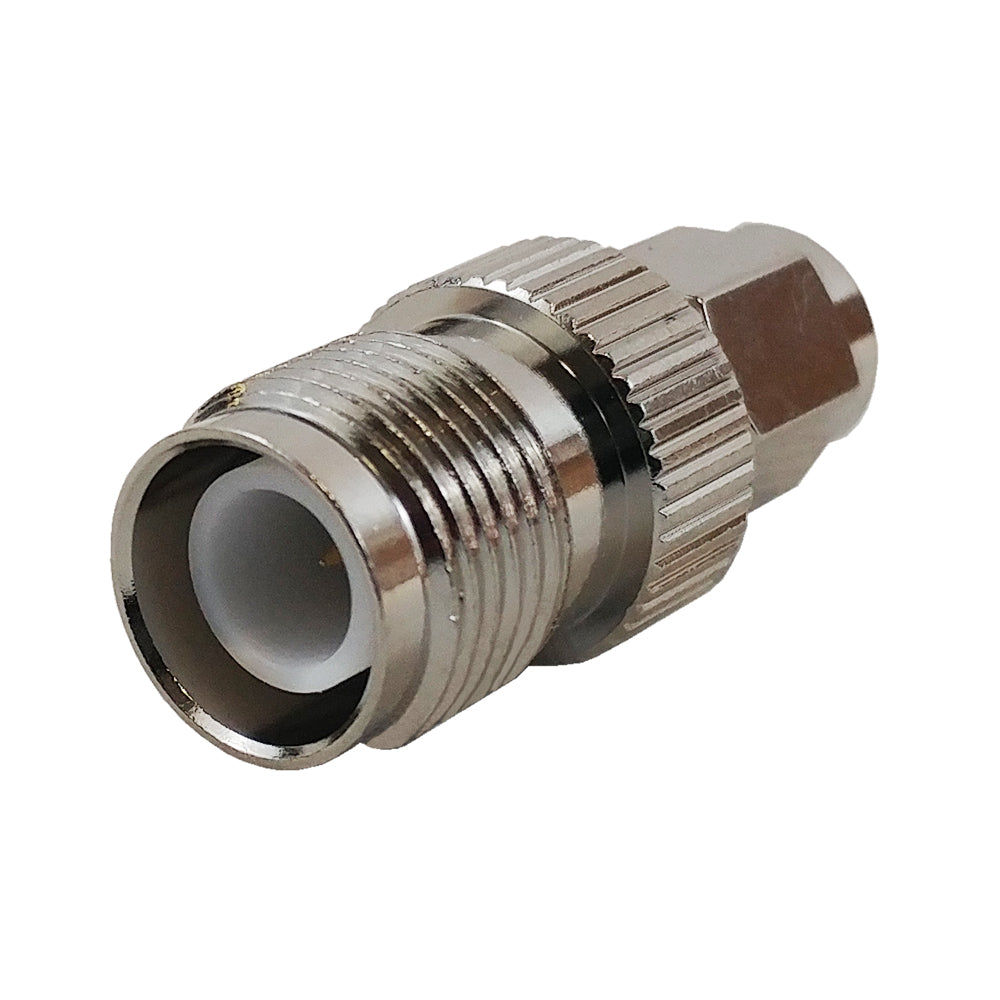

This adapter consists of a SMA-RP (reverse polarity) male on one end and a TNC-RP (reverse polarity) female on the other. It is typically used to convert a TNC-RP male cable to a SMA-RP male cable.
| Physical Characteristics | |
|---|---|
| Connector Plating | Nickel |
| Contact Material | Gold Plated Brass Copper |
| Insulator Material | Teflon |
| Temperature Range | -60°C ~ +85°C |
| Weatherproof | No |
| Temperature Cycling | No Test |
| Moisture Resistance | No Test |
| Corrosion | No Test |
| Vibration | No Test |
| Connectors | |
| Connector A | SMA-RP Male |
| Connector B | TNC-RP Female |
| Performance | |
| Impedance | 50 Ohm |
| Frequency Range | 0-3Ghz |
| Voltage Rating | No Test |
| Dielectric Withstanding Voltage | 500 VRMS min |
| Mating Torque | 0.3-0.6N-m |
| Product Support | |
| Country of Origin | Taiwan |
| RoHS | Compliant |
| REACH | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.02 lbs |
