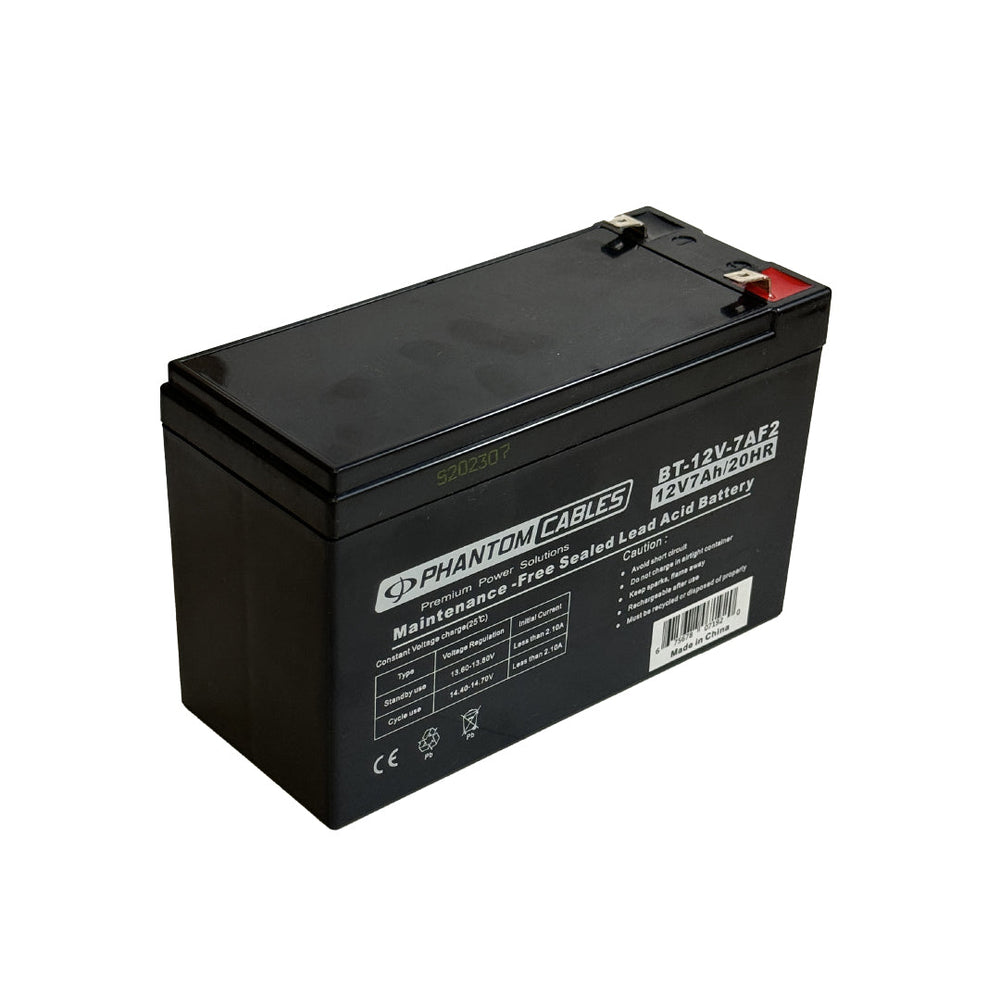

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | 2x UPS Replacement |
| Absorbed Glass Mat (AGM) | Yes |
| Voltage | 12V |
| Amps | 7A |
| Terminal Type | F2 |
| Tab Size | 0.25 inch |
| Container Material | ABS(UL-94HB) |

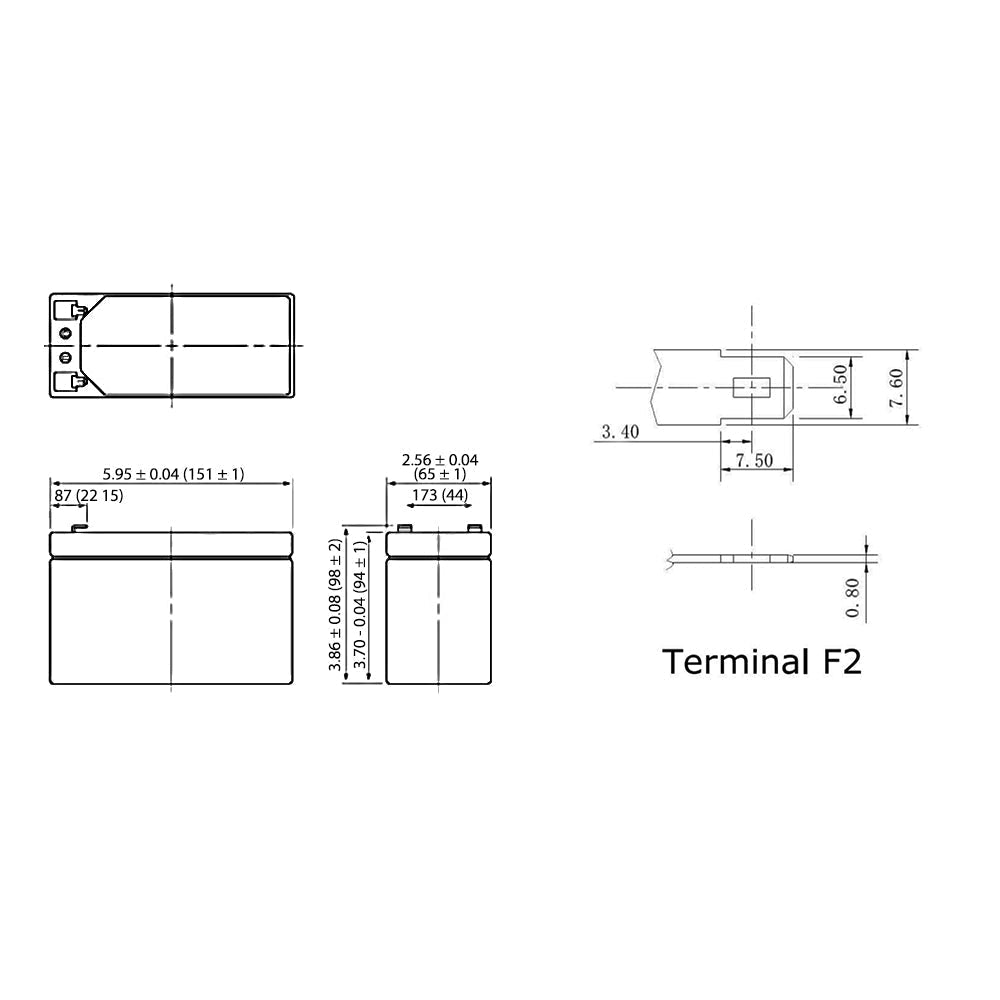

| Length | 5.94 inches [151mm] |
| Width | 2.56 inches [65mm] |
| Height | 3.70 inches [100mm] |
| Operating Temperature | 25±3℃ (77±5℃F ) |
| Compatible Terminal Adapter | |
| BT-ADT2T1 | Battery terminal adapter F2 female (0.25") to F1 male (0.1875") |
| Performance | |
| Internal Resistance | Approx.20mΩ |
| Max. Discharge Current | 112.5A(5S) |
| Rated Capacity | 7.00AH (20hr, 1.75V/cell,25℃/77℃F) 6.40AH (10hr, 1.75V/cell,25℃/77℃F) 5.95AH (5hr, 1.75V/cell,25℃/77℃F) 4.55AH (1hr, 1.75V/cell,25℃/77℃F) |
| Cycle Use | Initial Charging Current less than 2.10A 14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃ |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature |
40℃ 102% 25℃ 100% 0℃ 85% -15℃ 64% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
| Packaging Information | |
| Product Weight | 10.9 lbs [4.9kg] |
| Packaging Quantity | 2 UPS Battery 12V 7amp |
| Warranty Information | |
| Warranty | 6 Months |
| Compatibility Information | |
| Model Number | APC Smart-UPS SU450 APC Smart-UPS SU450NET APC Smart-UPS SU600 APC Smart-UPS SU600LS APC Smart-UPS SU700 APC Smart-UPS SU700BX120 APC Smart-UPS SU700NET APC Smart-UPS SU700X167 APC Smart-UPS SU700X93 APC Smart-UPS SU700RM APC Smart-UPS SU700RMNET APC Smart-UPS AP600 APC Smart-UPS AP600RM Belkin UPS F6C325-SER Belkin UPS F6C700 Belkin UPS F6C800-UNV Belkin UPS F6C1500-TW-RK Powerware UPS 5110-1000 Powerware UPS 5110-1500 Powerware UPS 5115-750 Powerware UPS 5125-1000RM Powerware UPS 9120-700 Powerware UPS 9125-700 Powerware UPS 9125-1000 Tripp-Lite Office UPS BC325A Tripp-Lite Office UPS BC675 Tripp-Lite Office UPS CP350 |
