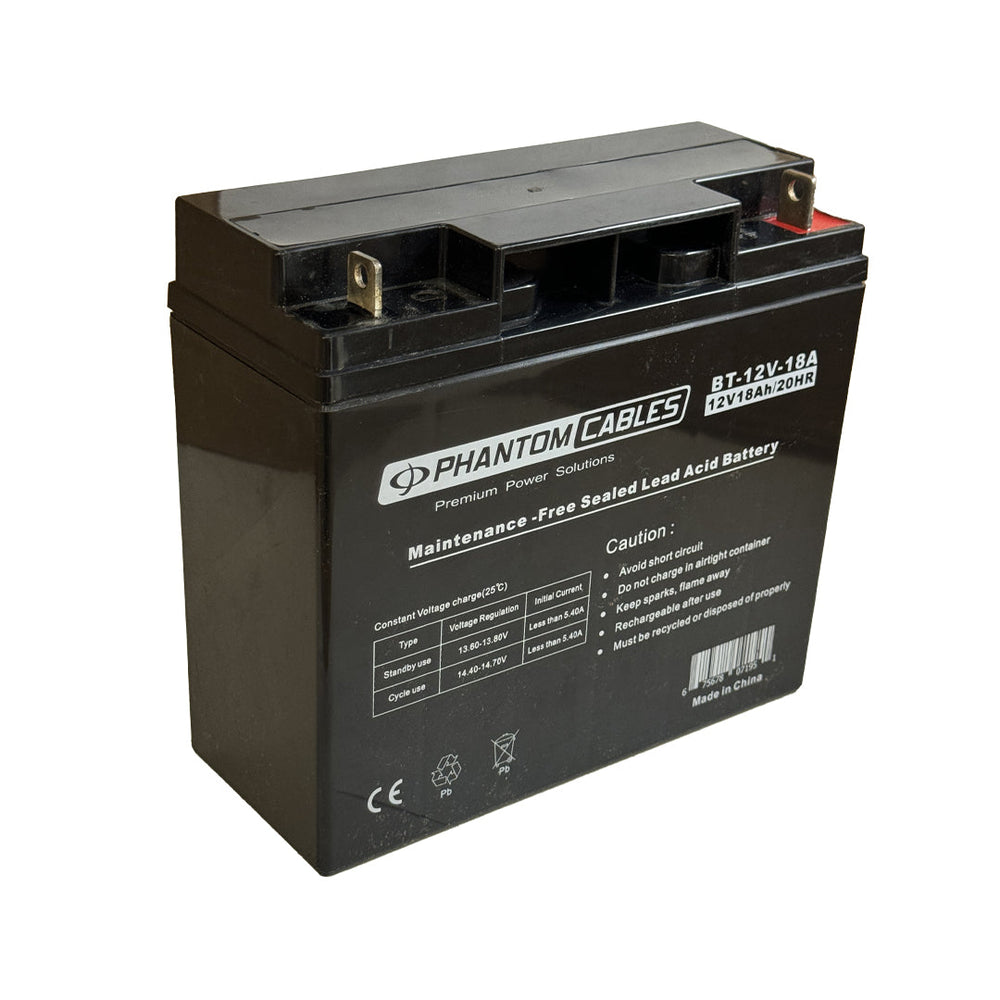

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | 4 x UPS Replacement |
| Absorbed Glass Mat (AGM) | Yes |
| Voltage | 12V |
| Amps | 18A |
| Terminal Type | F3 - Nut & Bolt |
| Container Material | ABS(UL-94HB) |
| Length | 3 inches [76mm] |
| Width | 7.1 inches [181mm] |
| Height | 6.6 inches [167mm] |
| Operating Temperature | 25±3℃ (77±5℃F ) |
| Performance | |
| Internal Resistance | Approx.90m٦ |
| Max. Discharge Current | 270A(5S) |
| Rated Capacity | 18.0AH (20hr, 1.75V/cell,25℃/77℃F) 17.4AH (10hr, 1.75V/cell,25℃/77℃F) 17.1AH (5hr, 1.75V/cell,25℃/77℃F) 15.5AH (3hr, 1.75V/cell,25℃/77℃F) 11.7AH (1hr, 1.75V/cell,25℃/77℃F) |
| Cycle Use | Charge Current Less Than 0.25CA 14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃ |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature | 40℃ 103% 25℃ 100% 0℃ 86% -15℃ 65% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
| Packaging Information | |
| Product Weight | 46.8 lbs [21.2kg] |
| Packaging Quantity | 4 UPS Battery 12V 18amp |
| Warranty Information | |
| Warranty | 6 Months |
| Compatibility Information | |
| Model Number | APC Matrix-UPS 3000 APC Matrix-UPS 5000 APC Smart-UPS SU1400XLTNET APC Smart-UPS SU2000 APC Smart-UPS SU2000XL APC Smart-UPS SU2200 APC Smart-UPS SU2200BX120 APC Smart-UPS SU2200NET APC Smart-UPS SU2200X106 APC Smart-UPS SU1400RMXLNET APC Smart-UPS SU1400RMXLTNET APC Smart-UPS SU2200X111 APC Smart-UPS SU2200X115 APC Smart-UPS SU2200X180 APC Smart-UPS SU2200X93 APC Smart-UPS SU2200XL APC Smart-UPS SU2200XLNET APC Smart-UPS SU2200XLTNET APC Smart-UPS SU2200XLTX153 APC Smart-UPS SU3000 APC Smart-UPS SU3000NET APC Smart-UPS SU3000TNET APC Smart-UPS SU3000X177 APC Smart-UPS SU600XL APC Smart-UPS SU2200RMNET APC Smart-UPS SU2200RMXL APC Smart-UPS SU2200RMXLNET APC Smart-UPS SU2200RMXLTNET APC Smart-UPS SU2200RMXLTX153 APC Smart-UPS SU2200X179 APC Smart-UPS SU3000RM APC Smart-UPS SU3000RMNET APC Smart-UPS SU3000RMX93 APC Smart-UPS AP1400 APC Smart-UPS AP200RM APC Smart-UPS AP200XL APC Smart-UPS AP900XL Exide NetUPS SE 2400 Exide NetUPS SE 3000 Powerware UPS 5119-2500 Powerware UPS 5119-3000 |
