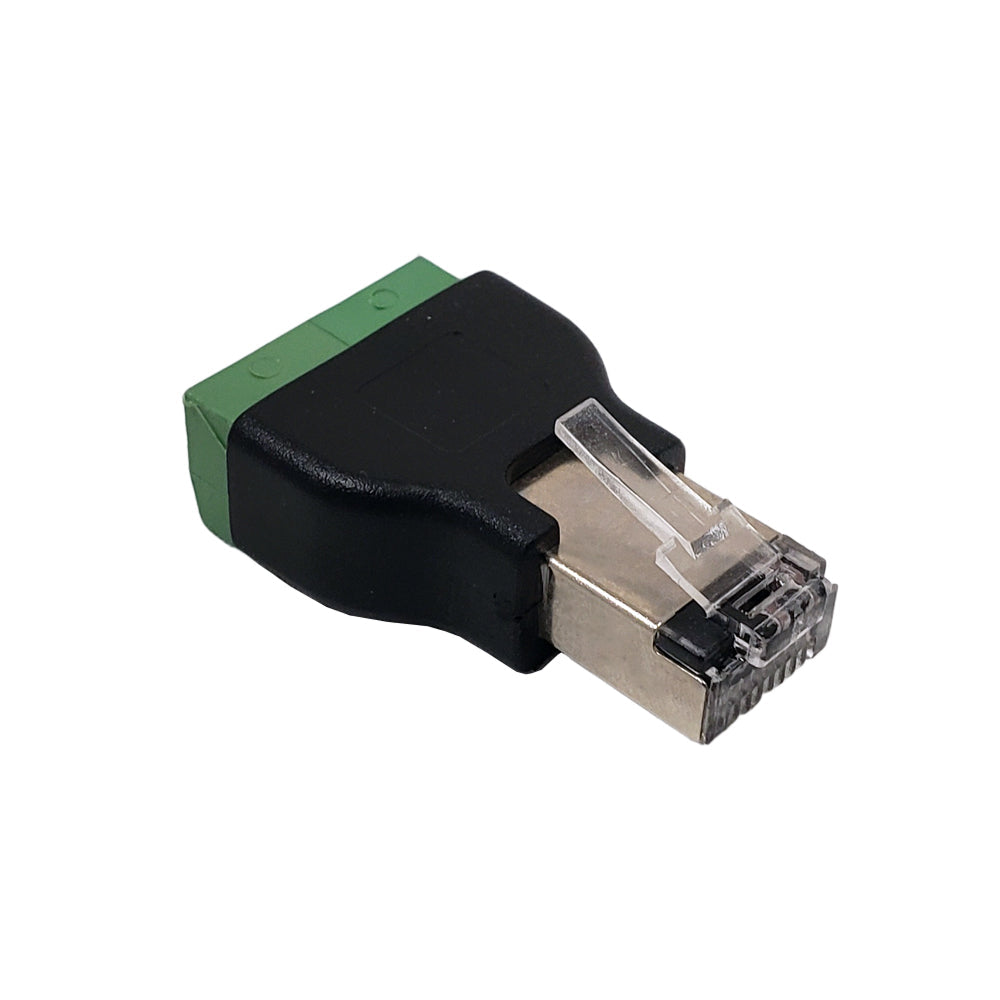

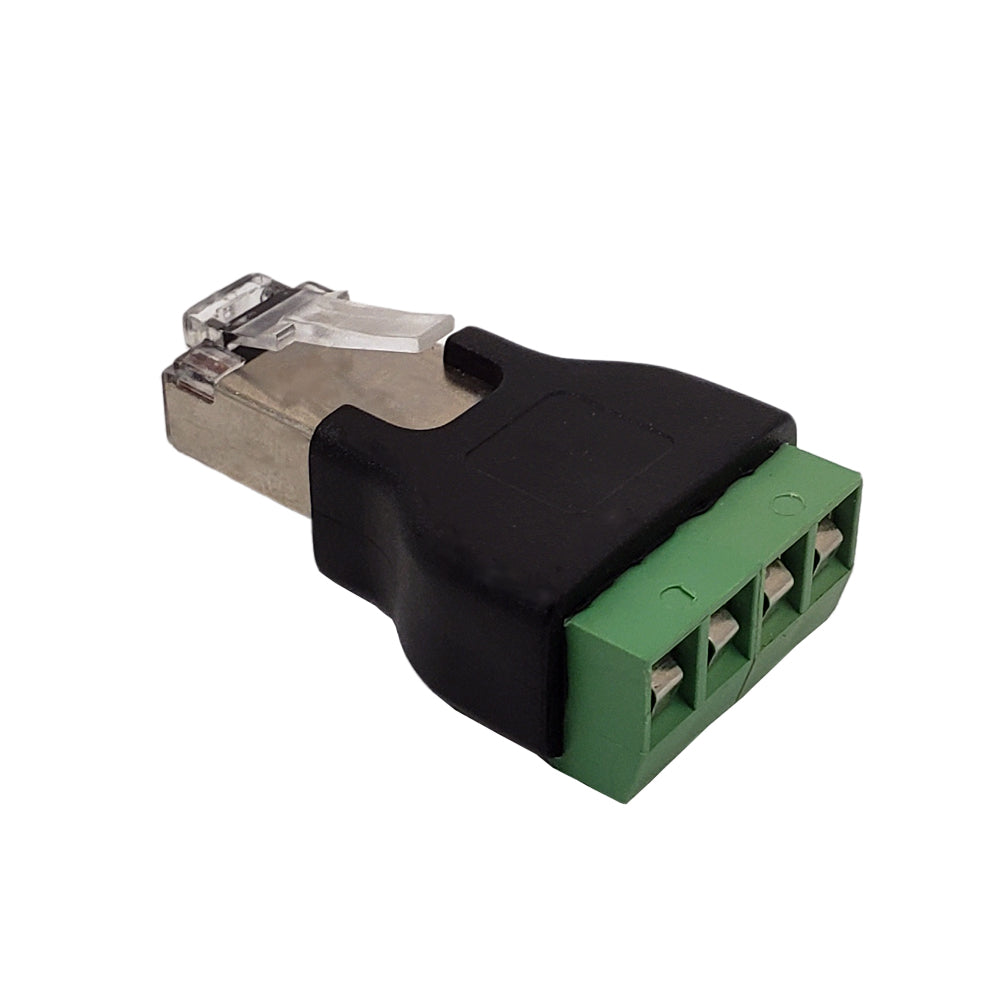

This connector consists of a RJ45 male on one end and four screw terminals on the other end. It is typically used in a variety of PoE and CCTV applications.
|
Physical Characteristics
|
|||||
|---|---|---|---|---|---|
| Color | Black | ||||
| Contact Plating | Gold | ||||
| Attachment Method | Screw Down | ||||
| Wire Gauge | 28AWG to 16AWG | ||||
| Pinout |
|
||||
|
Connector(s)
|
|||||
| Connector A | 1 - RJ45 (8P8C) Male | ||||
| Connector B | 4 - Screw Down Terminals | ||||
|
Environmental
|
|||||
| RoHS | Compliant | ||||
|
Packaging Information
|
|||||
| Package Quantity | 1 | ||||
| Product Weight | 0.02 lbs [0.01 kg] | ||||
