Overview

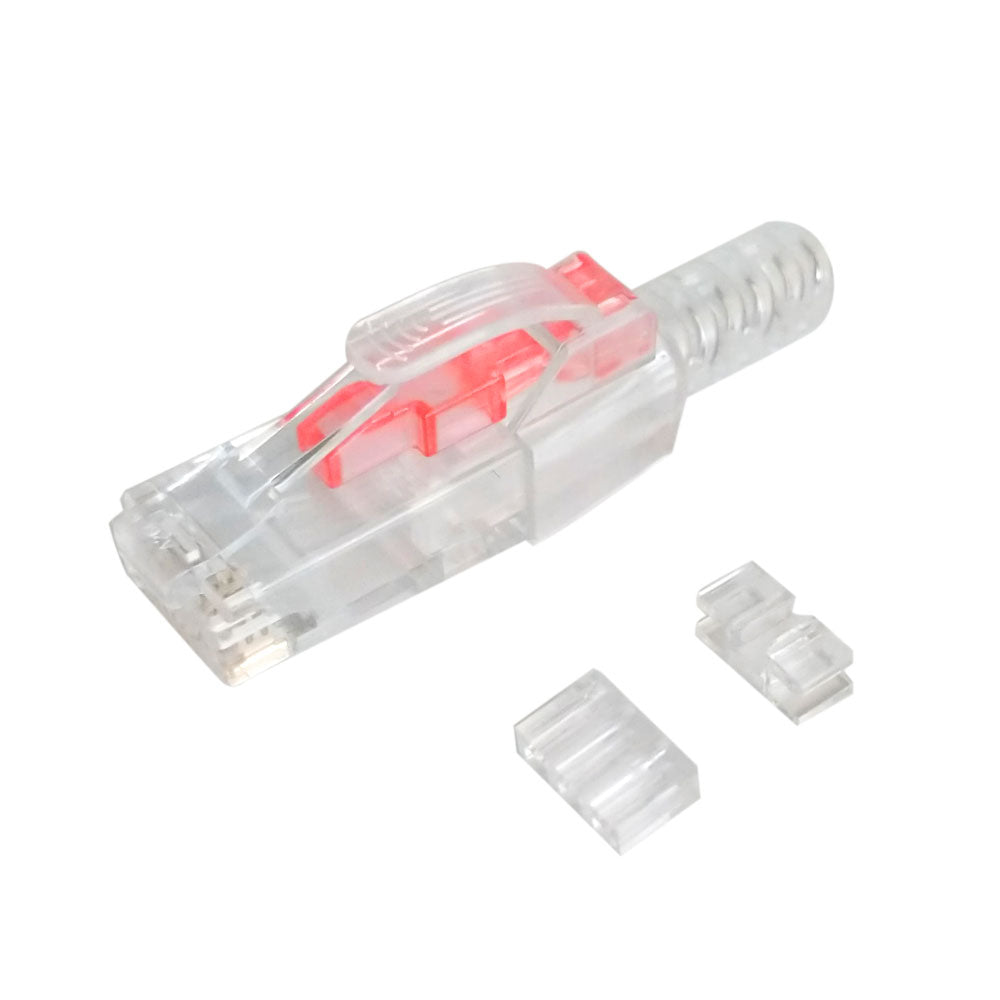

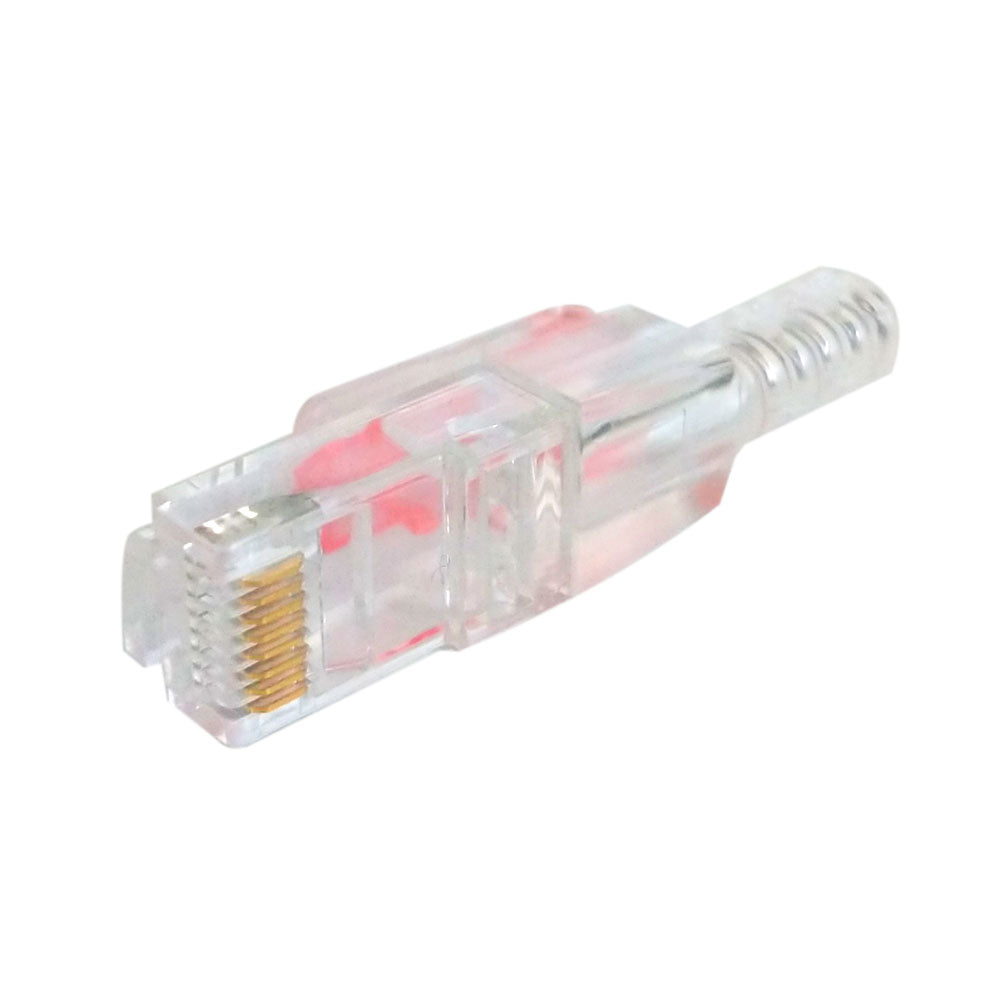

This locking RJ45 Cat6/Cat6a plug is an 8 position, 8 conductor plug. It's typically terminated on 4 pair stranded or solid round cable. The plug has a push-in locking tab which helps prevent accidental disconnects for critical networking applications. Each plug comes with a key which is required to easily unlock the connector.
RJ45 Plug and Boot with Locking FeatureThis tamper resistant RJ45 plug offers a secure termination and is compatible with Cat6/Cat6a stranded or solid round cables. It is the perfect solution for adding security and peace of mind to your plugged RJ45 connections in any number of scenarios |
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Transparent | |
| Material | Polycarbonate | |
| Contacts | 50u Gold Plated |
|
| Cable Type | Round | |
| Boot Outer Diameter | 6.5mm | |
| Number of Contacts | 8 | |
| Number of Positions | 8 | |
| Connector(s) | ||
| RJ45 Cat6/6a (8P8C) | Male, 23 - 24 AWG Round Stranded Cable |
|
| Environmental | ||
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 Pack of 50 Connectors | |
| Product Weight | 0.20 lbs | |
