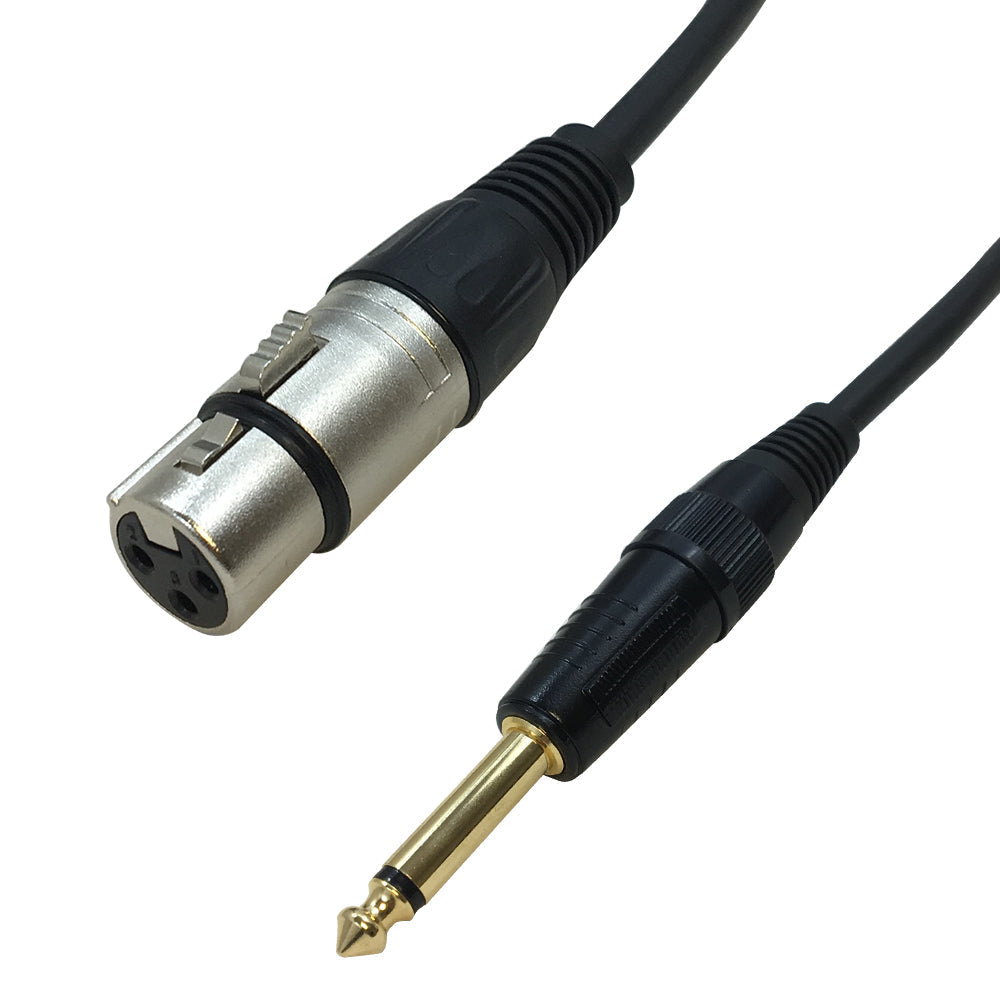

Premium Phantom Cables XLR Female to 1/4 Inch TS Male Cable
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This unbalanced interconnect audio cable has a XLR female on one end and a TS male on the other. It is typically used to connect a XLR output to an unbalanced TS input.
- Hi-flex, 22AWG cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra-flexible to maximize mobility
- High quality, heavy duty shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead-free solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics |
|
|---|---|
| Color | Black |
| Contact Plating | Gold |
| Cable Diameter | 5mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 100% Aluminum-Mylar Foil, 90% Bare Copper Braid |
| Strain Relief | Metal Shell |
| Connectors |
|
| Connector A | XLR Female |
| Connector B | TS Male |
| Approvals |
|
| cUL | Compliant - Cable |
| Environmental |
|
| RoHS | Compliant |
| Package Information |
|
| Package Quantity | 1 |
| Warranty Information |
|
| Warranty | Limited Lifetime |
