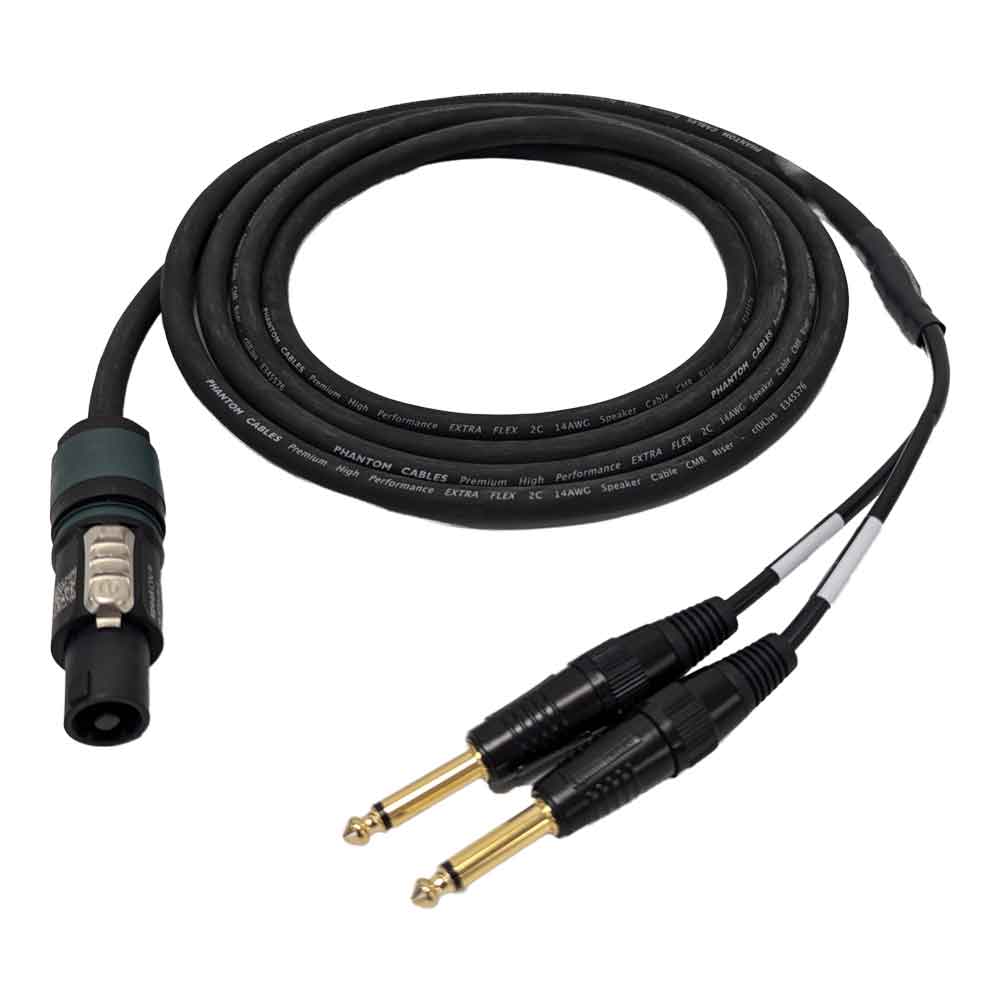

This audio speaker cable has a 4-pole speakON on one end and two 1/4 inch TS males on the other. It is typically used to connect pro audio speakers to amplifiers.
- A hi-flex jacket combined with a multi-stranded heavy cable allows for extra cable flexibility and no sacrifice in audio quality
- 14 gauge OFHC (Oxygen Free Copper) conductors achieve maximum sound clarity
- Multi-stranded copper cable is used to capture all the highs & lows for optimum audio performance
- Four conductor twisted cable construction enhances signal timing accuracy
- High quality, 24K gold plated (TS) connector allow for optimum connectivity and maintain a clean signal integrity

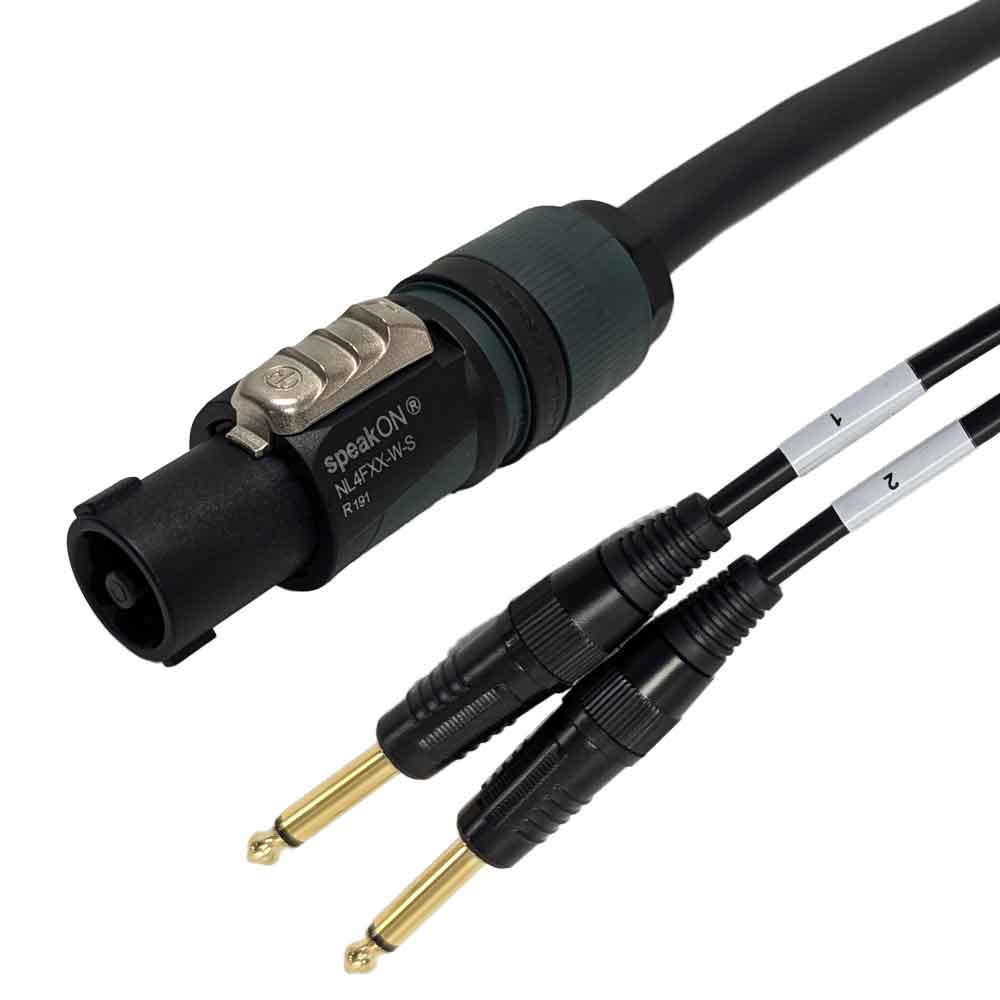

- Premium Neutrik 4-pole speakON connector (NL4FX)
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating (speakON) | Silver |
| Connector Plating (1/4 Inch) | Gold |
| Wire Gauge | 4C 14AWG Stranded 80/0.18 |
| Overall Cable Diameter | 10.7mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
|
Connectors
|
|
| Connector A | 1 - 4-Pole Neutrik speakON NL4FX |
| Connector B | 2 - 1/4 Inch TS Male |
|
Environmental
|
|
| RoHS | Compliant |
|
Certifications
|
|
| cUL | Compliant - Cable |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
