Premium Phantom Cables 4-Pin XLR DMX Male To Female Cable
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!

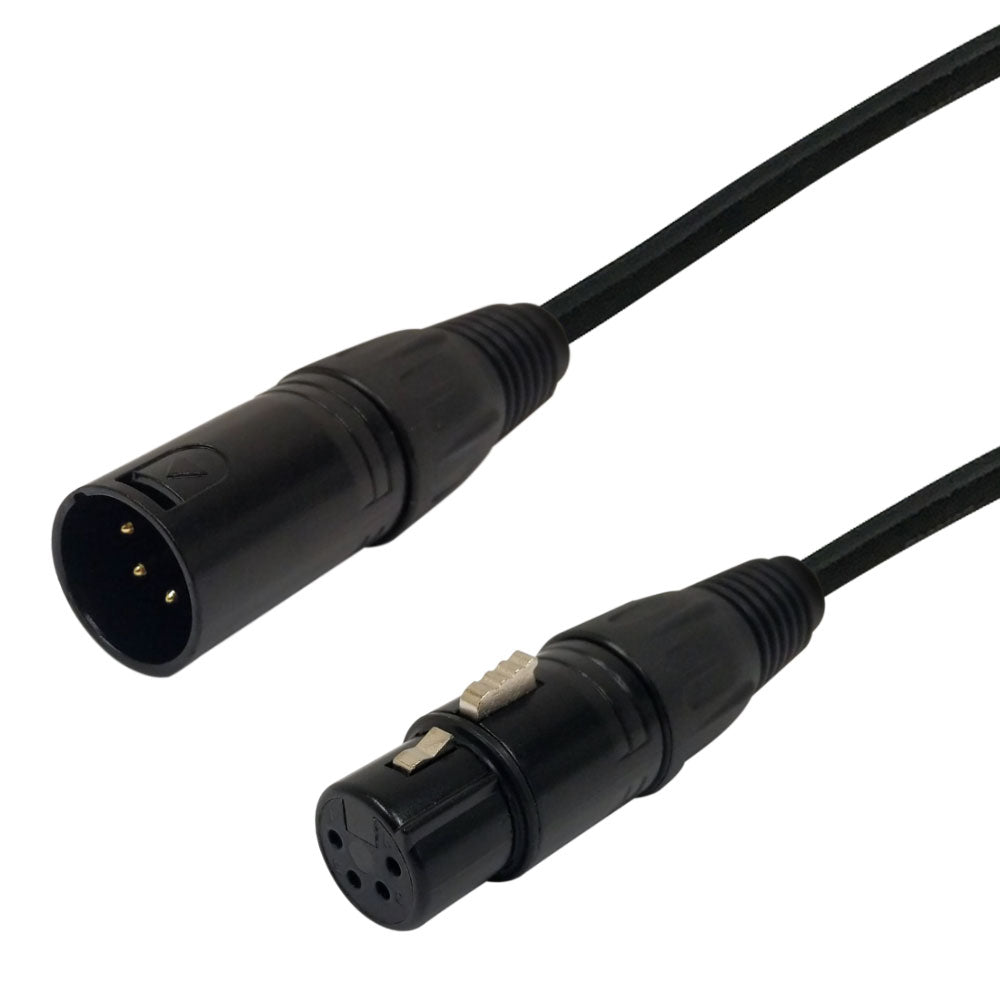

This premium 4 pin DMX lighting cable has a 4-pin XLR male on one end and a 4-pin XLR female on the other. It is typically used to control stage lighting and effects.
- Constructed true 110 ohm cable for quick response time movement
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- 100% aluminum/mylar foil shield for superior EMI and RFI rejection
- High quality, heavy duty premium strain relief connectors optimizes connectivity and maintains a clear signal integrity
- Lead-free solder is used in order to reduce loss and maximize conductivity
- Standard Color Kinetics Color Blast Ā® pinout.
|
Physical Characteristics
|
|
|---|---|
| Shielded | 100% aluminum/mylar foil shield, 85% Braid |
| Color | Black Cable, Nickel Plated Connectors, Gold Plated Pins |
| Cable Diameter | 7.1mm |
| Cable Temperature Rating | -30 deg C to 75 deg C |
|
Performance
|
|
| Impedance | 110 Ohms |
|
Connectors
|
|
| Connector A | 4-pin XLR Male |
| Connector B | 4-pin XLR Female |
|
Packaging Information
|
|
| Packaging Quantity | 1 Cable |
|
Warranty Information
|
|
| Warranty | Lifetime Limited |
