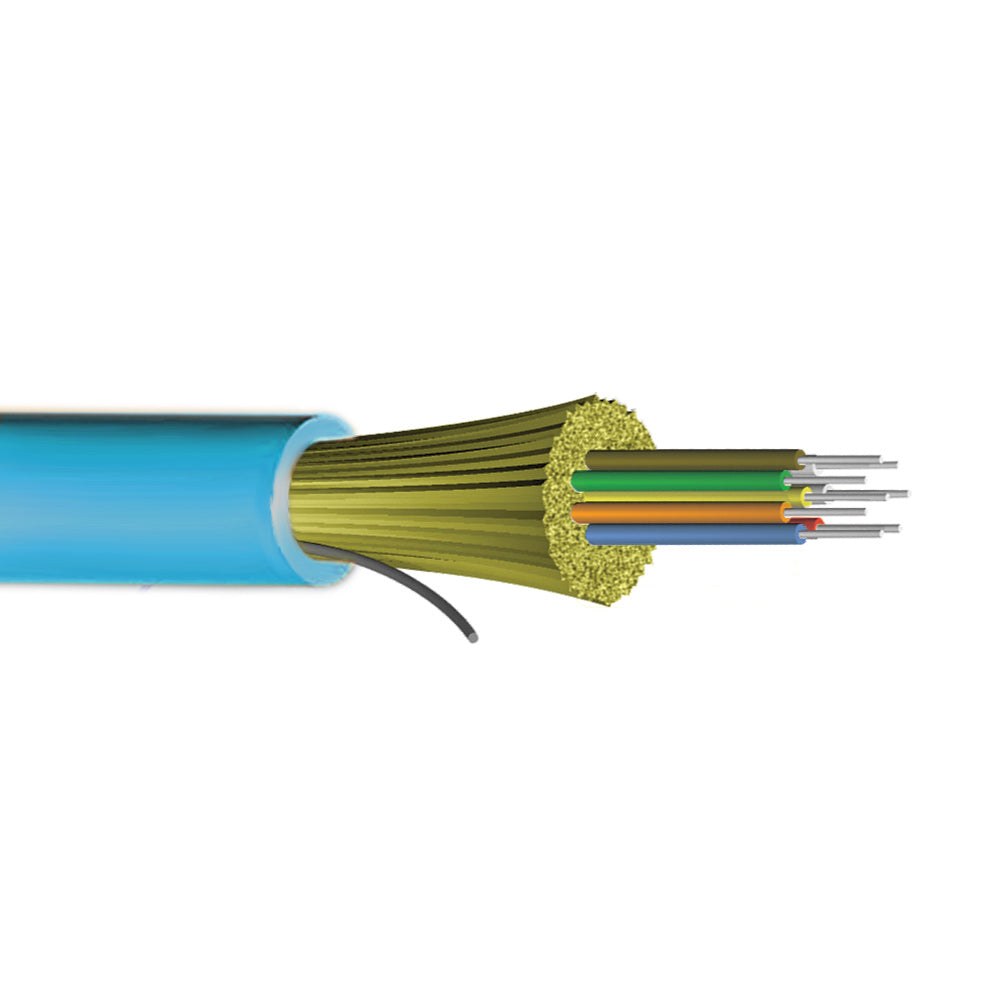

This bulk OM4 fiber cable is indoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It is ideal for routing between communications closets and equipment rooms.
This cable can be used in riser and general inside plant applications.
- Compliant to Directive2002/95/EC (RoHS)
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM3 50 micron Multimode Riser Indoor Tight Buffered Cable |
| Fiber Count | 6-Strand / 12-Strand |
| Glass Fiber | Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Outer Jacket Material | Flame Retardant PVC |
| Tight Buffer Material | Flame Retardant PVC |
| Strength Member | Aramid Yard |
| Nominal Diameter | 4.4mm (6-Strand) 5.5mm (12-Strand) |
| Tension(Installation) | 150 lbs |
| Tension(Long Term) | 45 lbs |
| Bending Radius(Installation) | 7.2cm (6-Strand) 8.2cm (12-Strand) |
| Bending Radius(Operation) | 4.4cm (6-Strand) 5.5cm (12-Strand) |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Installation | -10°C ~ +60°C |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
| EMBc (MHz-km) | 4700 |
| Gigabit Ethernet Min. Link Distance | 850nm = 1000 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 300 |
| Fire Rating | OFNR, FT4 |
|
Certification(s)
|
|
| ETL | Compliant |
| c(ETL) | Compliant |
|
Product Support
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Country of Origin | USA |
