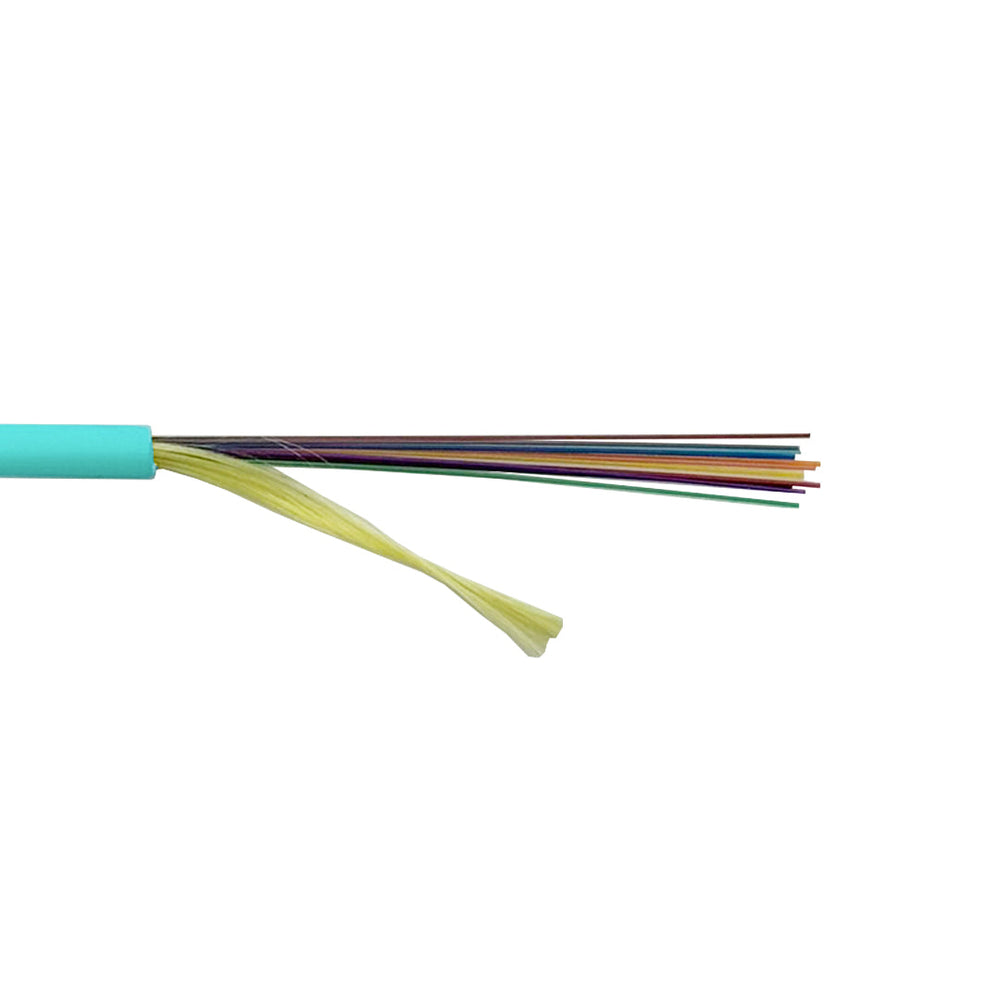

This bulk OM4 fiber cable is indoor plenum rated and combination of high fiber counts with a compact, space saving design. It is OFNP rated for plenum and general inside terminating MPO cables typically.
Features
- Micro-Distribution OFNP rated construction
- 250µm colored bare fibers
- Corning ClearCurve OM4 optical fibers
- Jacket print ensures product identification and fiber compatibility
- Small O.D. for tight spaces
- Meets the application requirement of National Electric Code (NEC) Article 770
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM4 50 micron Multimode OFNP Plenum Indoor Micro-Distribution Cable |
| Fiber Count | 12-Strand |
| Glass Fiber |
Corning ClearCurve |
| Nominal Diameter | 2.95mm |
| Bending Radius (Installation) |
4.45cm |
| Bending Radius (Operation) |
2.95cm |
| Pulling tension |
300lbs |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
|
Performance
|
|
| Wavelength | 850nm / 1300nm |
| Attenuation Max. | 3.0dB/km @850nm 1.0dB/km @1300nm |
| Link Length |
550m (10Gbps @850nm) |
| Bandwidth (EMB High Performance) | 4700MHz.km @850nm |
| Fire Rating | OFNP Plenum |
|
Certification(s)
|
|
| UL | Compliant |
|
Product Support
|
|
| RoHS, REACH | Compliant |
| Country of Origin | USA |
