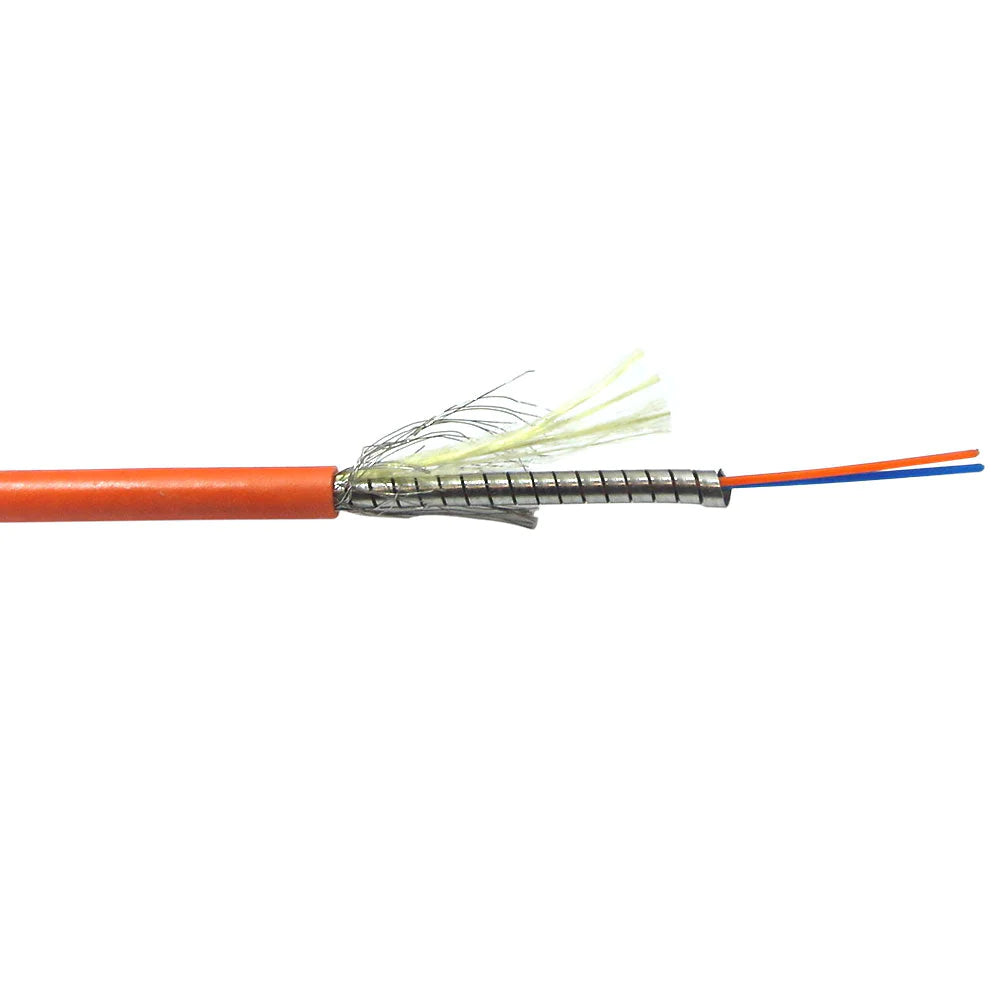

OM1 Multimode 62.5 Micron Mini-Armored (Corning InfiniCor) - OFCP Plenum Fiber Bulk Cable (per meter)

$9.99

Hurry up! Sales Ends In

Hurry! Only 5 Left in Stock!

Real time 21 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

This bulk 2-strand OM1 mini-armored fiber cable is plenum rated and has a tight buffer construction. It is constructed of plenum rated material for inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.

Physical Characteristics
Color Orange
Fiber Optic Type OM1 62.5 micron multimode Plenum Armored Tight Buffered Cable
Fiber Count 2-Strand
Glass Fiber Corning InfiniCor
Sub Unit Diameter 600 Micron
Nominal Diameter 3.3mm
Tension(Installation) 100 lbs
Tension(Long Term) 30 lbs
Bending Radius(Installation) 17.7cm
Bending Radius(Long Term) 12.7cm
Storage/Operating Temperature -20℃ ~ +60℃
Crush Resistance 5000N/100mm - Short Term
3000N/100mm - Long Term
Attenuation Range @850nm 3.5dB/km
@1300nm 1.2dB/km
Bandwidth Range @850nm > 200 MHz/km
@1300nm > 600 MHz/km
Gigabit Ethernet Min. Link Distance 850nm = 300
1300nm = 550
10 Gigabit Ethernet Min. Link Distance 850nm = 32
Fire Rating Plenum
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.05 lbs [0.02 kg]
