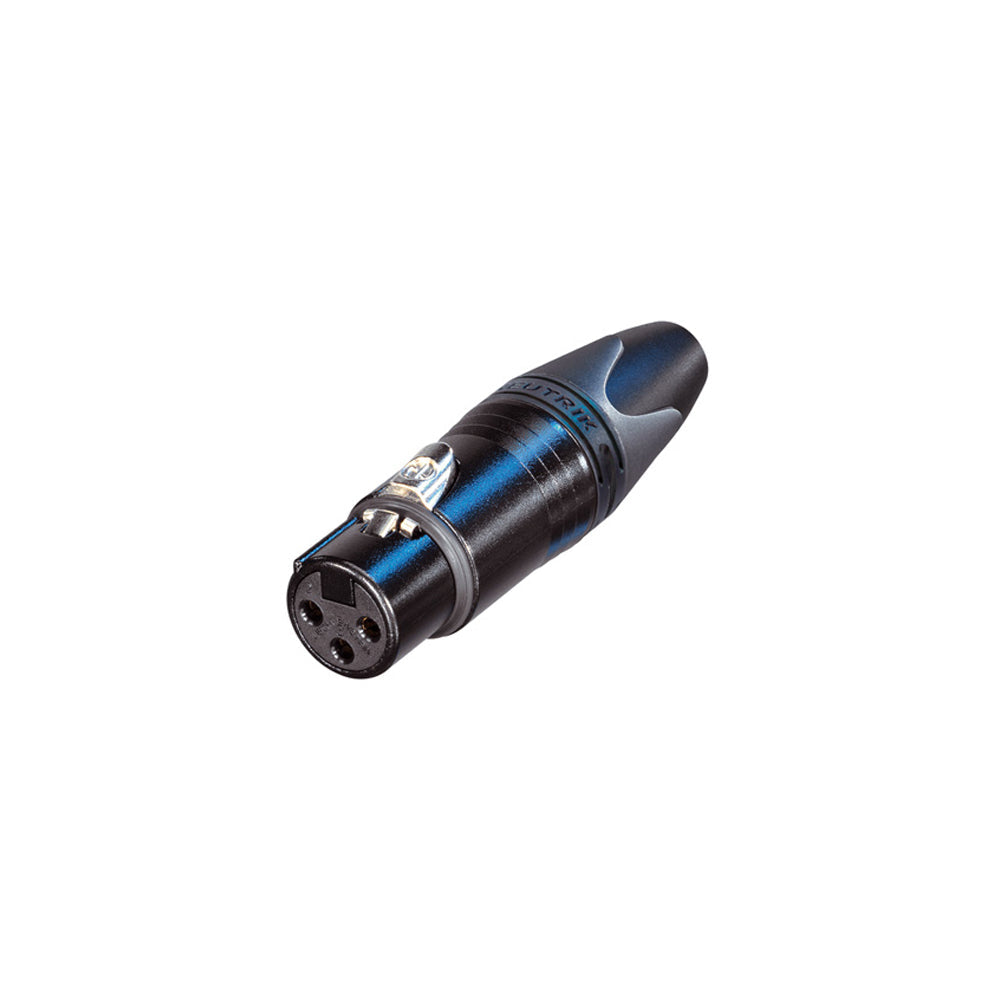

Neutrik 3-Pin XLR Female Connector - Black with Gold Pins
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This connector is typically used to connect audio devices and is reliable, easy to assemble and improves contact integrity as well as cable strain relief.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal |
| Connector Type | XLR |
| Temperature Range | -30℃ to +80℃ |
| Boot | Polyurethan |
| Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Bronze |
| Insert | Polyamide |
| Locking Element | Zinc Diecast |
| Shell | Zinc Diecast |
| Shell Plating | Black Chromium |
| Strain Relief | Polyacetal (POM) |
| Gender | Female |
| Electrical Characteristics | |
| Contact Resistance | ? 3 mΩ (after lifetime) |
| Dielectric Strength | 4 kVdc (peak) |
| Insulation Resistance | > 1 GΩ (after damp heat) |
| Rated Current Per Contact | 15 A rms continuous 30 A audio signal, duty cycle 50% |
| Rated Voltage | 250 V (Insulation) |
| Mechanical Characteristics | |
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion Force | ? 20 N |
| Withdrawal Force | ? 20 N |
| Lifetime | > 1000 mating cycles |
| Wire size | Max. 2.5 mm² Max. 14 AWG |
| Wiring | Solder contacts |
| Locking Device | Latch Lock |
| Environmental | |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Manufacturer Information | |
| Neutrik Part Number | NC3FXX-B |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
