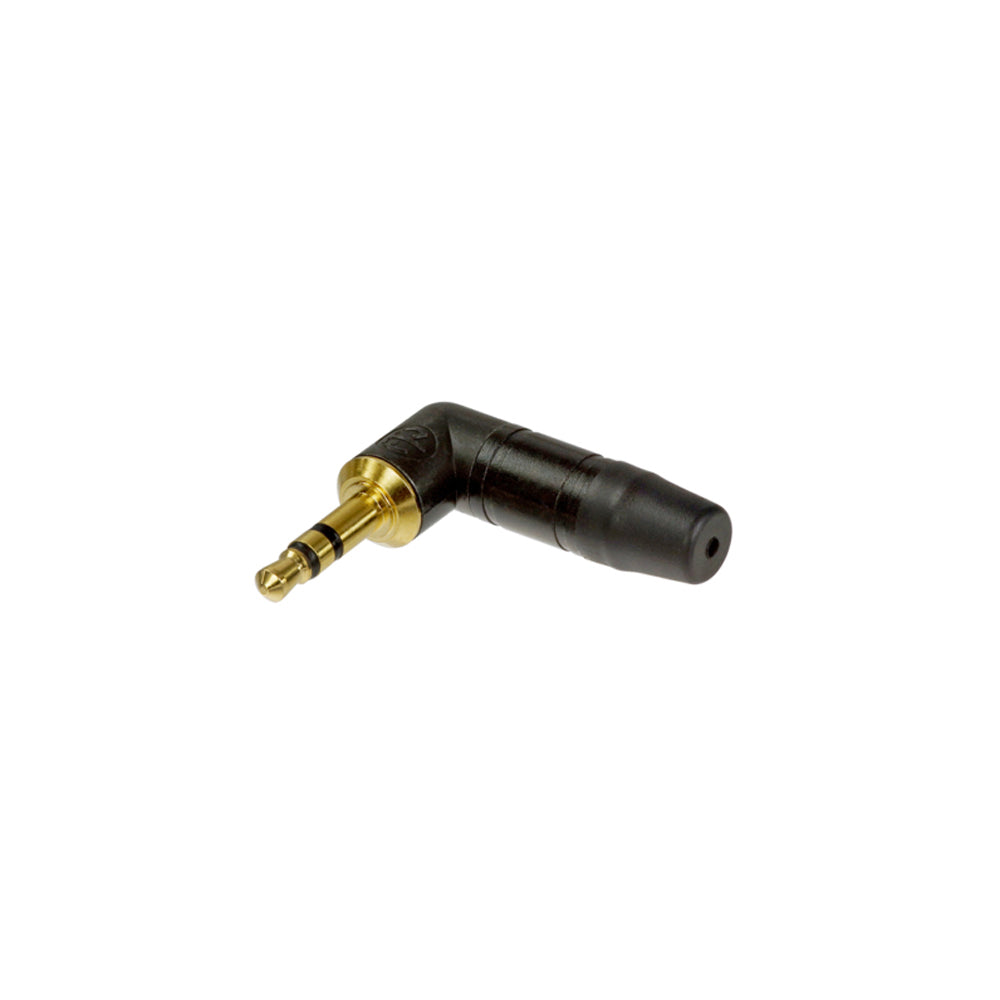

Neutrik 3.5mm Right Angle Stereo Plug - Black with Gold Pins
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This 3.5mm plug is designed for pro audio applications with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5mm.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal |
| Temperature Range | -20℃ to +65℃ |
| Bushing | Brass + PU, Black Cr |
| Contact Plating | 0.2 µm Au |
| Contacts | Brass |
| Insert | Polyamide |
| Shell | Zinc Diecast |
| Shell Plating | Black Chromium |
| Strain Relief | Polyacetal (POM) |
| Gender | Male |
| Electrical Characteristics | |
| Contact Resistance | Depending on Mating Connector mΩ |
| Dielectric Strength | 1 kVdc |
| Insulation Resistance | > 2 GΩ (initial) |
| Rated Voltage | < 50 V |
| Mechanical Characteristics | |
| Cable O.D. | 2 - 4.5 mm |
| Wire size | 0,22 mm² 24 AWG |
| Wiring | Solder contacts |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Manufacturer Information | |
| Neutrik Part Number | NTP3RC-B |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
