Overview

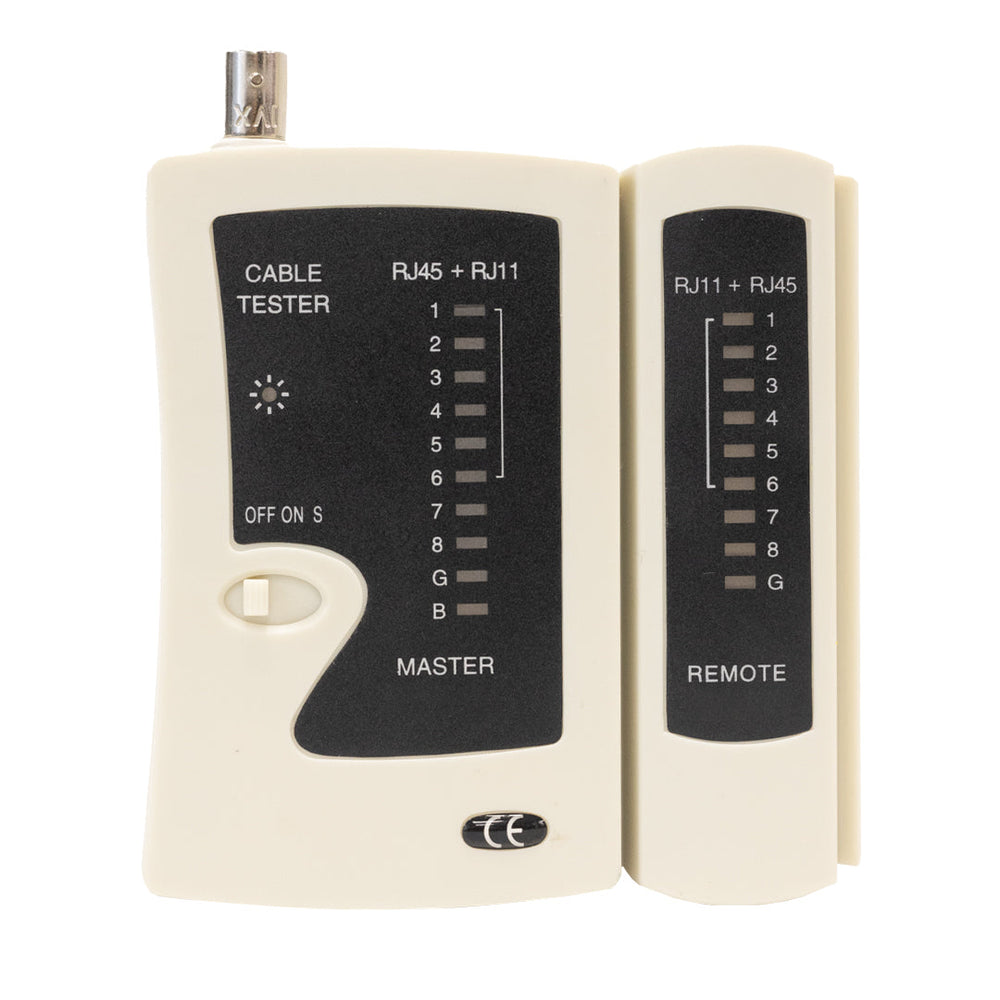

This network cable tester tests the pin assignments accurately of unshielded and shielded RJ45 cables as well as telephone cables (RJ11 and RJ12) and BNC cables. It allows you to determine if the cable is pinned correctly or if it is mis-wired, shorted or has open circuits. The tester has two test modes, fast scroll and slow scroll. The tester is powered using a 9V battery (not included).
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | Beige |
| Test Measurements | Straight, Cross, Mis-wired, Short, Open |
|
Connectors
|
|

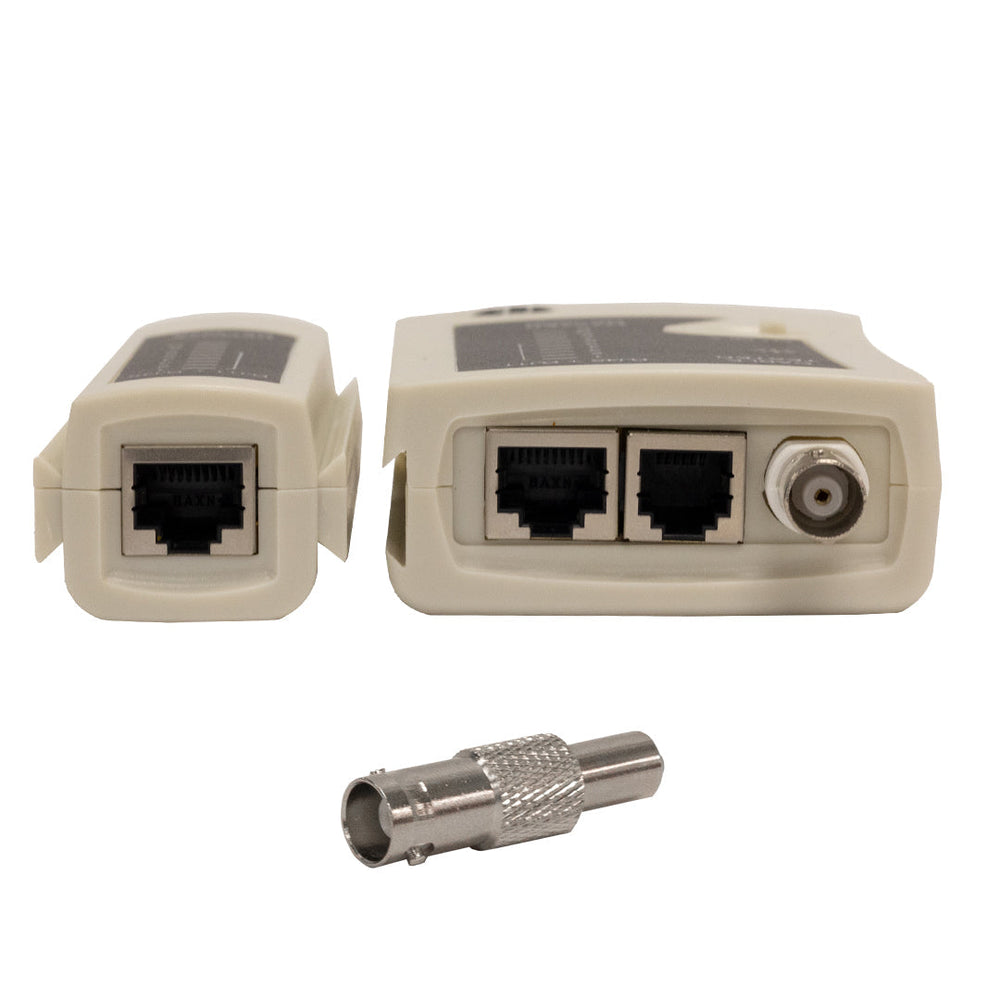

| Local Unit | 1x RJ45 Female, 1x RJ12 Female, 1x BNC Female |
| Remote Unit | 1x RJ45 Female, 1x RJ12 Female |
| Remote Unit Adapter | BNC Female Light Indicator |
|
Packaging Information
|
|
| Packaging Quantity | 1 |
| Product Weight | 0.35 lbs |
|
Contents
|
|
| Included in Package | 1 - Local Unit Test 1 - Remote Test Unit 1 - Coax Adapter 1 - Carrying Pouch 1 - Manual |
