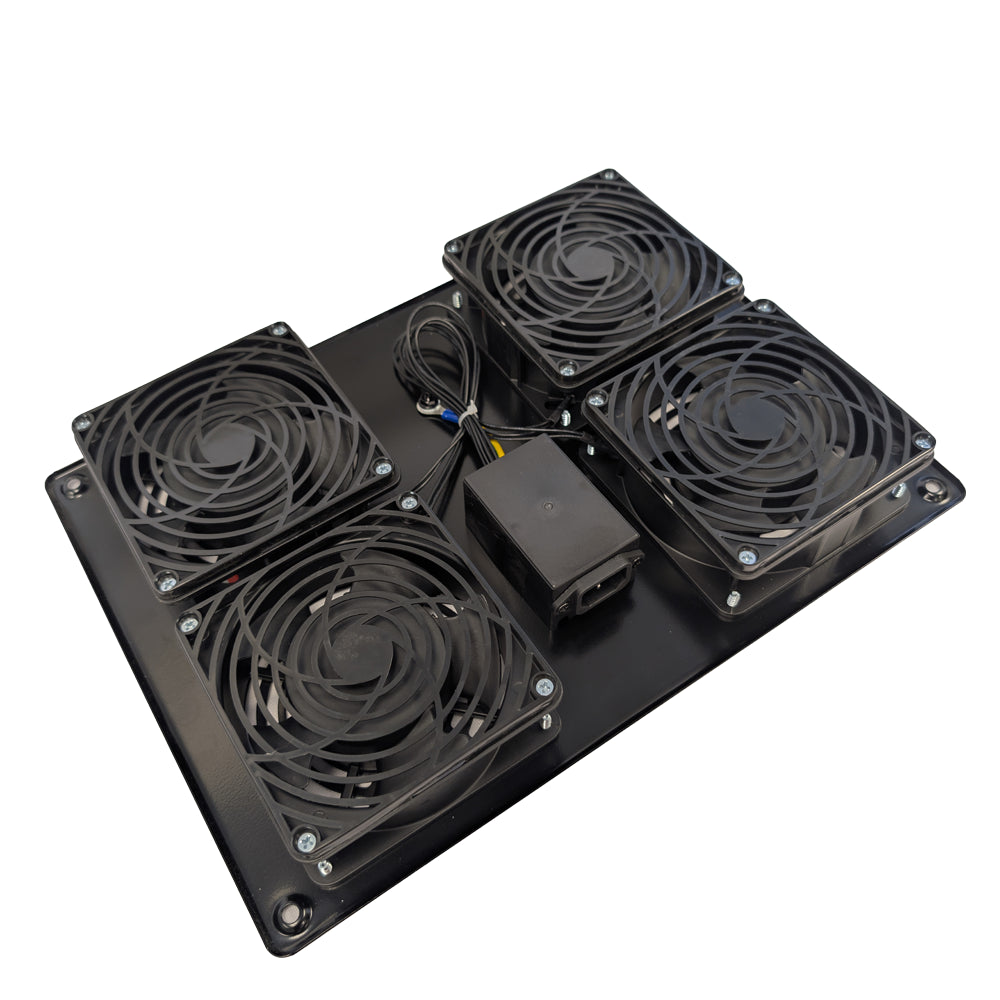

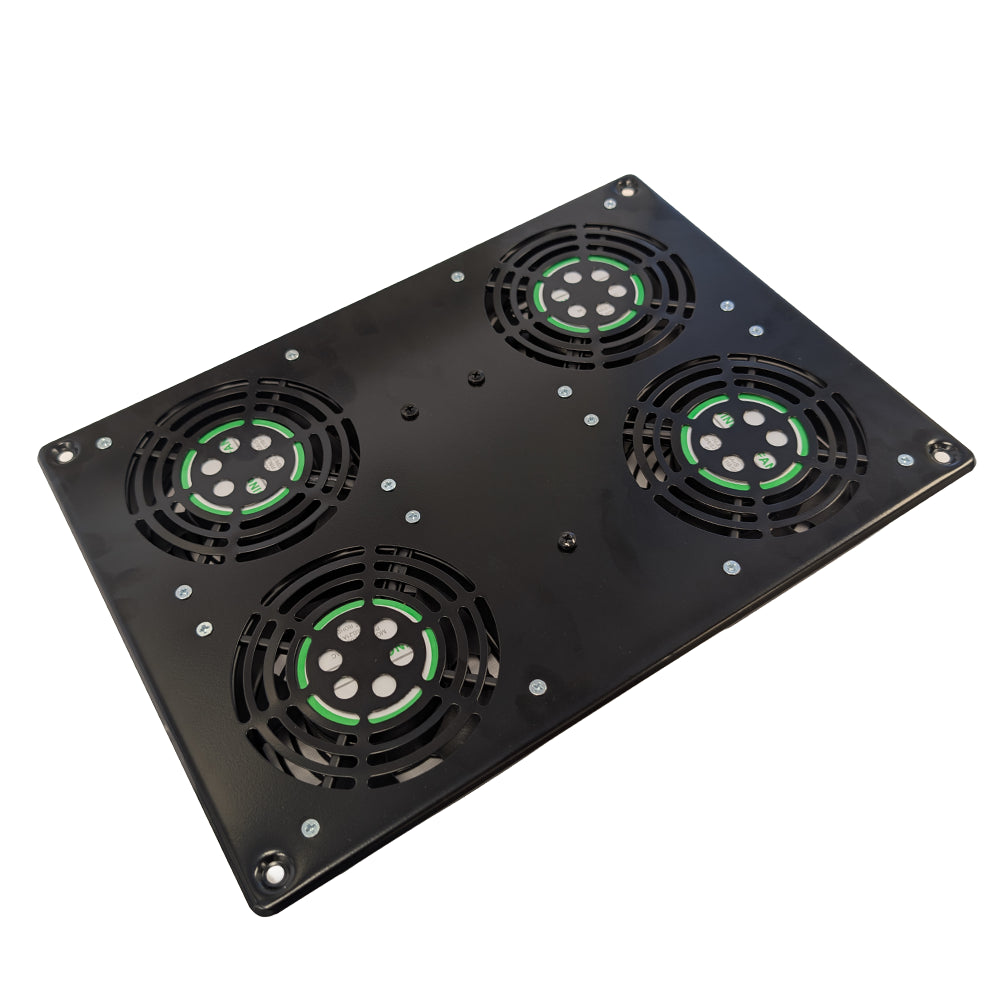

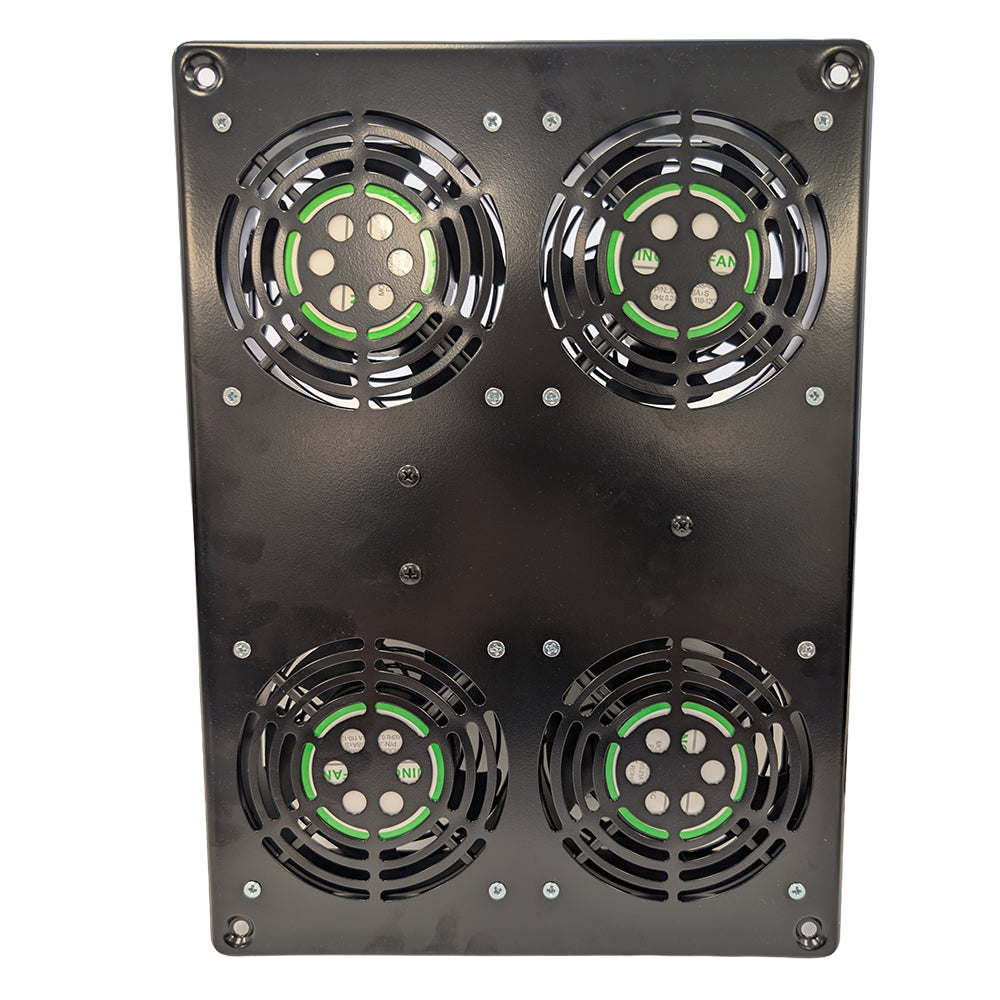

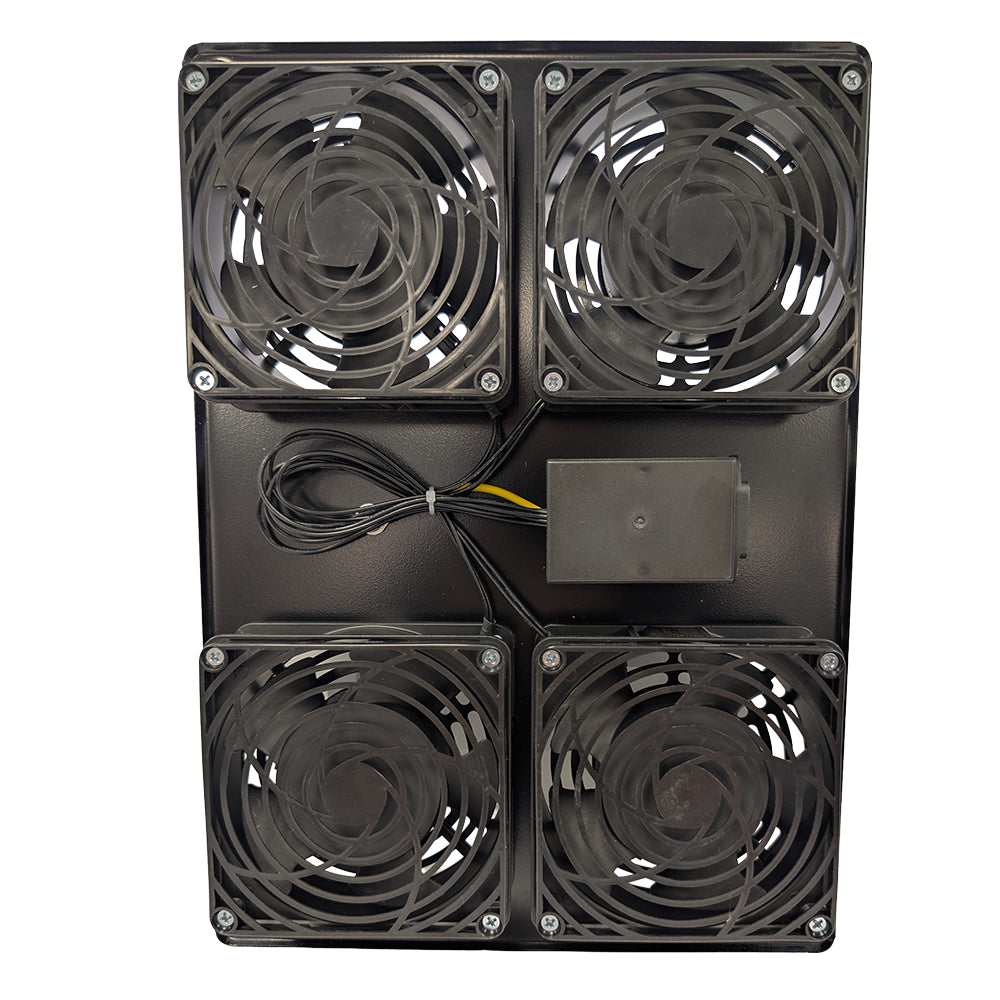

This fan top is designed to fit our RM-1105 and RM-1110 server cabinets. Made of high-quality SPCC cold rolled steel it is the perfect solution for optimal airflow utilization. This fan kit has a 1.9m power cable with 5-15P to C13 terminations. The fan kit is designed to be quickly swapped out from the cabinets.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | SPCC Cold Rolled Steel |
| No. of Fans | 4 |

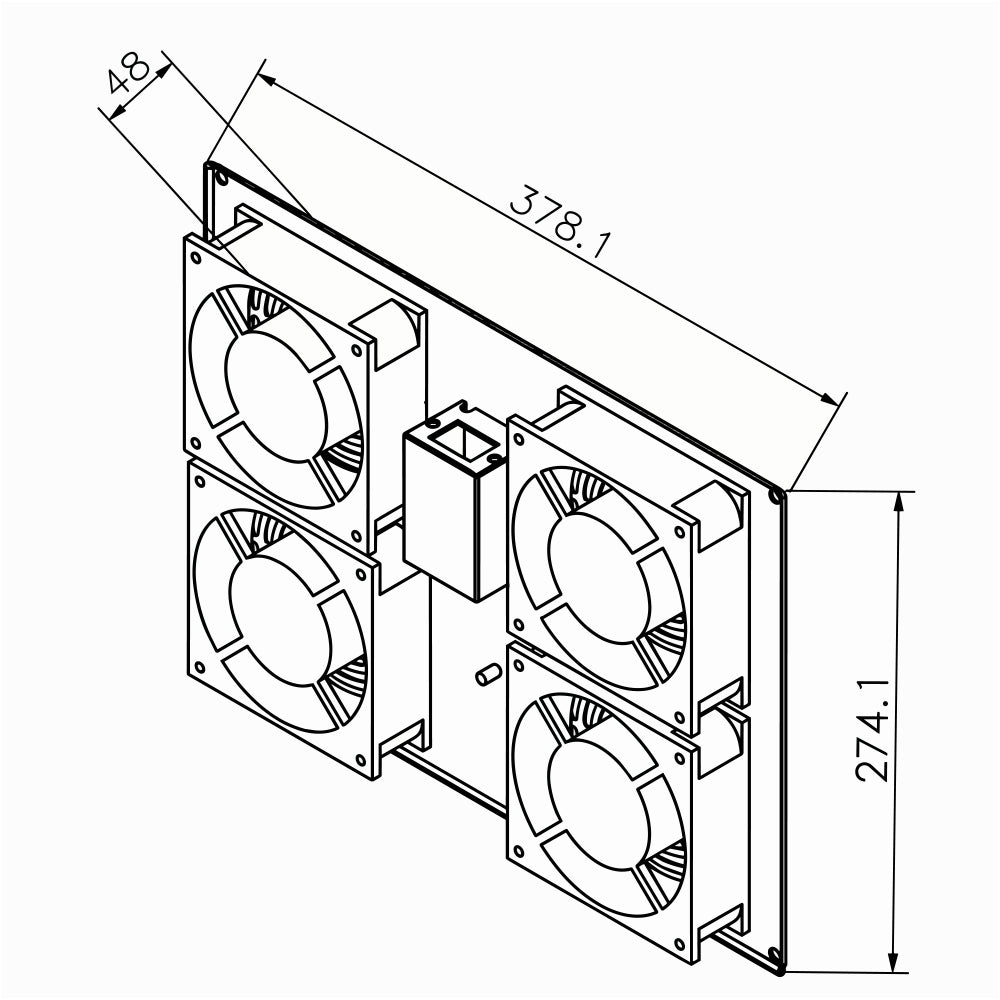

| Overall Dimensions | 378.1 x 274.1 x 48mm |
| Fan Dimensions | 120 x 120 x 38mm (4.7"x4.7"x1.5") |
| Power Specifications | |
| Voltage | 110 - 120VAC |
| Frequency | 50Hz/60Hz |
| Amps | 0.24/0.21A |
| Power Cable Length | 1.9m (6.2ft) |
| Power Cable Type | C13 to 5-15P |
| Power Cable Rating | 10A/125V |
| Power Cable Gauge | 18AWG |
| Compatible Cabinets | |
| RM-1105 |
24U Server Cabinet with Fan Tray, Black |
| RM-1110 |
42U Server Cabinet with Fan Tray, Black |
| Environmental | |
| RoHS | Compliant |
| REACH | Compliant |
| CE | Compliant |
| Packaging Information | |

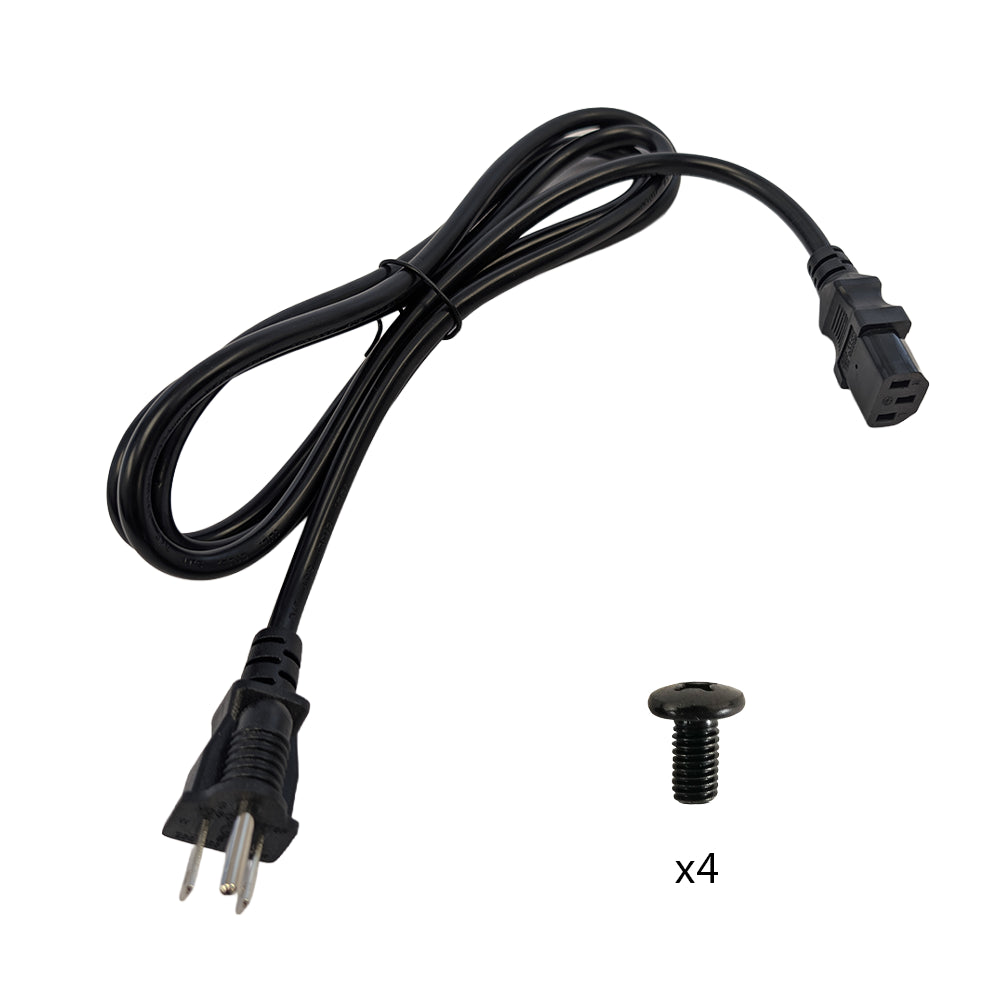

| Package Quantity | 1x Fan Tray 1x Power Cable 4x Screws |
| Product Weight | 6.5 lbs |
