Overview

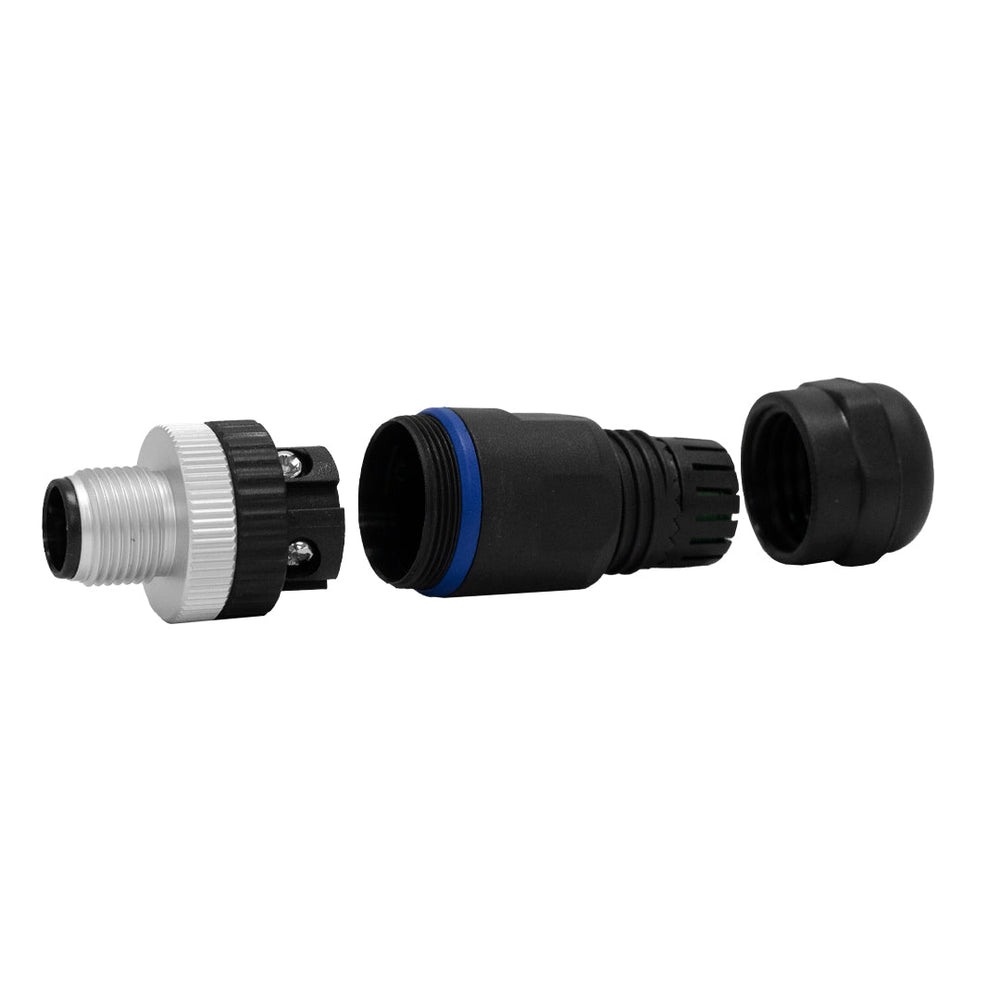

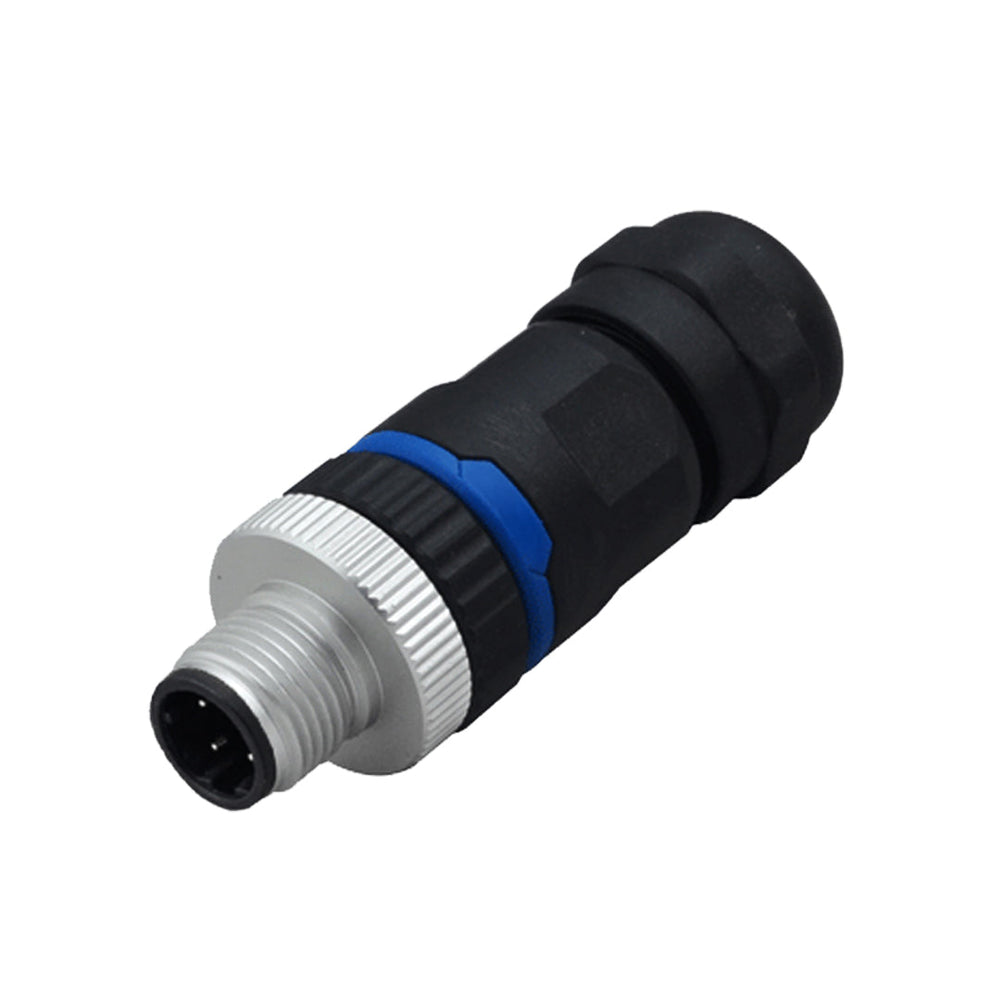

This M12 D-coded 4-pin male straight connector features a plastic housing and screw clamp for 6–8mm cables. With 250V/4A power rating, it’s ideal for industrial automation, sensors, robotics, and more.
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Gender | Male | |
| Housing | Plastic | |
| Contacts | 4 | |
| Termination | Screw clamp | |
| Cable Diameter | 6 ~ 8mm | |
| Pin Contact Material | Copper-zinc alloy (CuZn) | |
|
Socket Contact Material |
Copper-tin alloy (CuSn) | |
| Contact Plating Material | Gold | |
| Mechanical Operation | ＞100 mating cycles | |
| Temperature Range | -25℃ to 85℃ | |
| Rated Voltage | 250V | |
| Rated Current(40℃) | 4A | |
| Contact Resistance | ≤10mΩ | |
| Insulation Resistance | ≥100MΩ | |
| Approvals/Environmental | ||
| RoHS | Compliant | |
| IP67/68 | Compliant | |
