Locking C19 to C20 Power Cable - SJT Jacket
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!

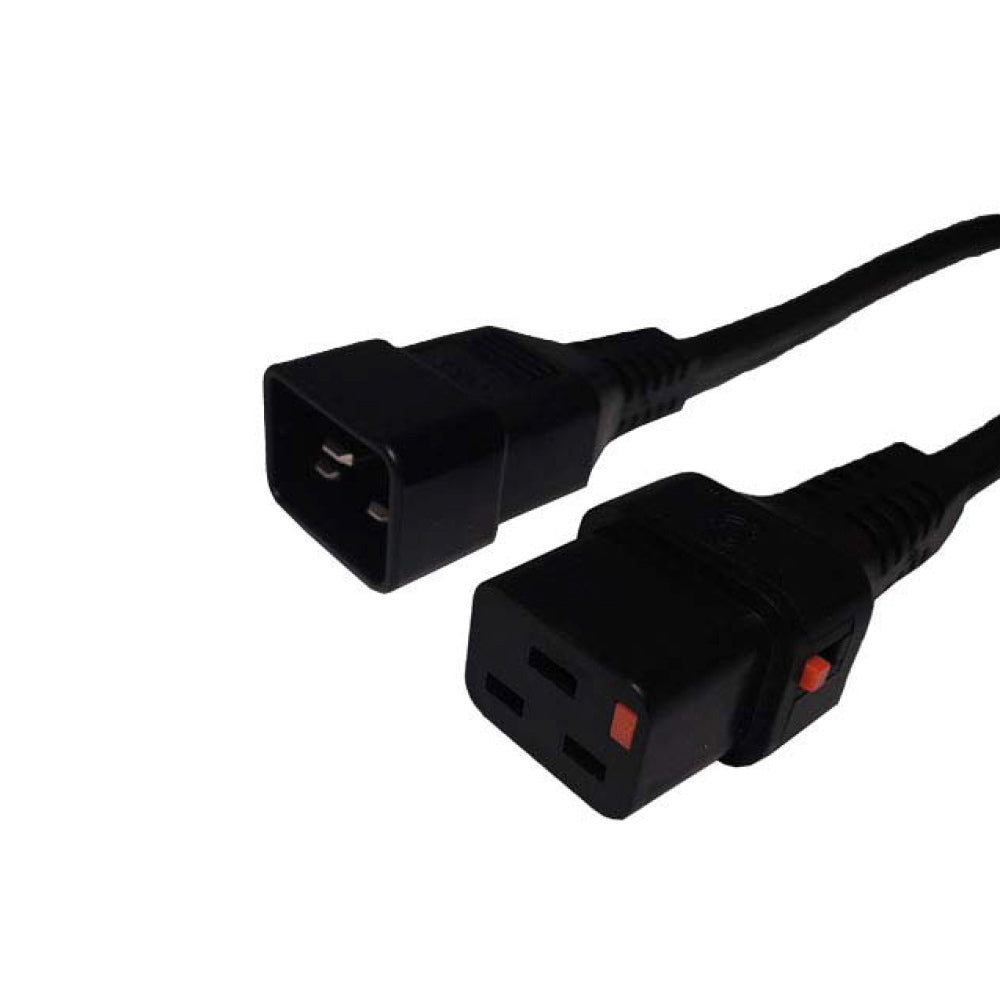

This power cord consists of a C20 male on one end and a locking C19 female on the other end. It is typically used to connect a server to a PDU in a data center environment. The unique lockable C19 female connectors can be used with any standard IEC inlet and guards against accidental disconnection of computers, PDU's, servers and most network devices.
Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14AWG |
| Jacket | Heavy Duty SJT |
| Jacket Fire Rating | FT2 |
| Strain Relief | Molded PVC |
| Temperature Rating | -20 deg C to 105 deg C |
Connector(s) | |
| Connector A | IEC 60320 Locking C19 - c(UL)us |
| Connector B | IEC 60320 C20 - c(UL)us |
Performance | |
| Power Rating | 15 Amp / 250 Volt |
Approvals | |
| c(UL)us | Compliant |
| ISO | ISO 9001:2008 |
Environmental | |
| RoHS | Compliant |
| Conflict Minerals | Compliant |
Packaging Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
