PRODUCT INFORMATION
Overview

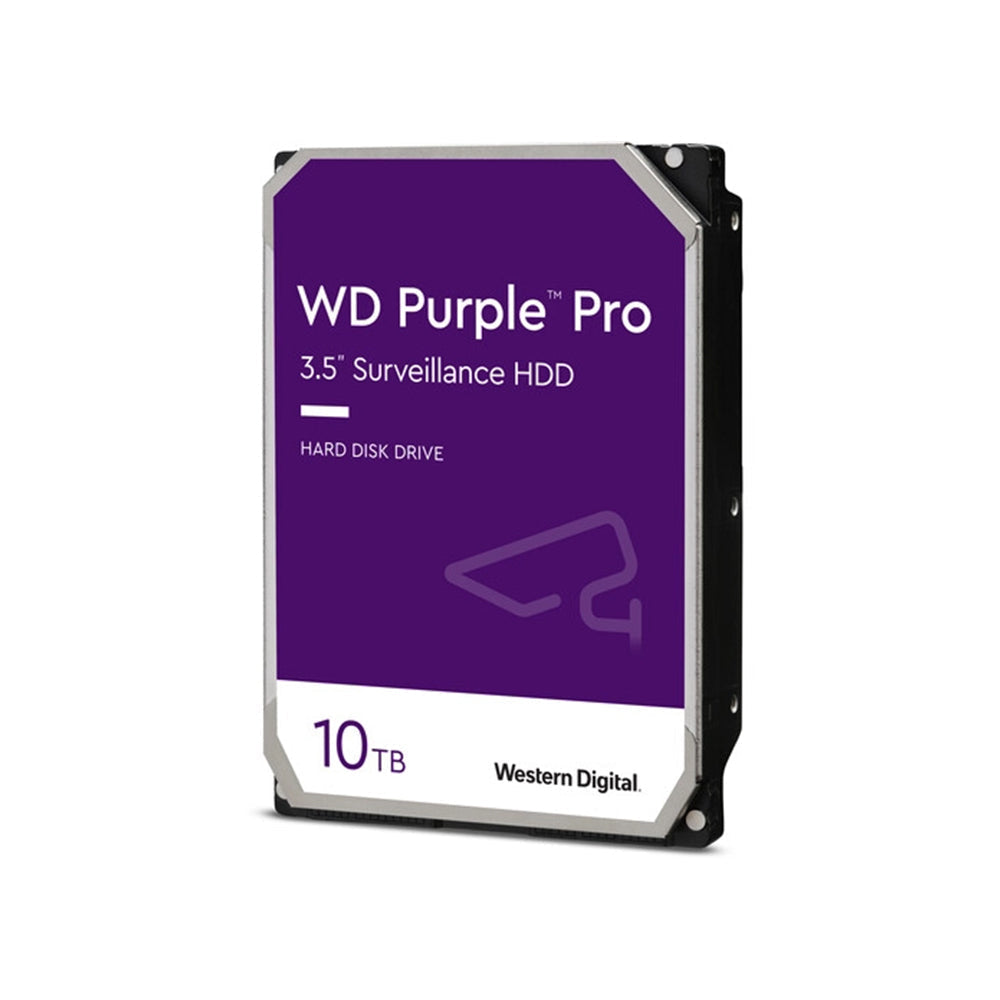

This 10TB hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
Features
- Storage for advanced smart video solutions
- Exclusive AllFrame™ AI technology
- Multiple cameras, multiple streams
- Advanced workload capability for advanced systems
- Designed for reliable operation in advanced high-performance smart video solutions
- Field-proven high capacity
- Proactive storage management with WDDA
Specifications
|
Physical Characteristics
|
|||||||
|---|---|---|---|---|---|---|---|
| Form Factor | 3.5 inch | ||||||
| Dimensions | 5.7" x 4.0" x 1.0" (147 x 102 x 26mm) | ||||||
| Operating Temperature | 0°C to 65°C | ||||||
| Non-Operating Temperature | -40°C to 70°C | ||||||
|
Performance
|
|||||||

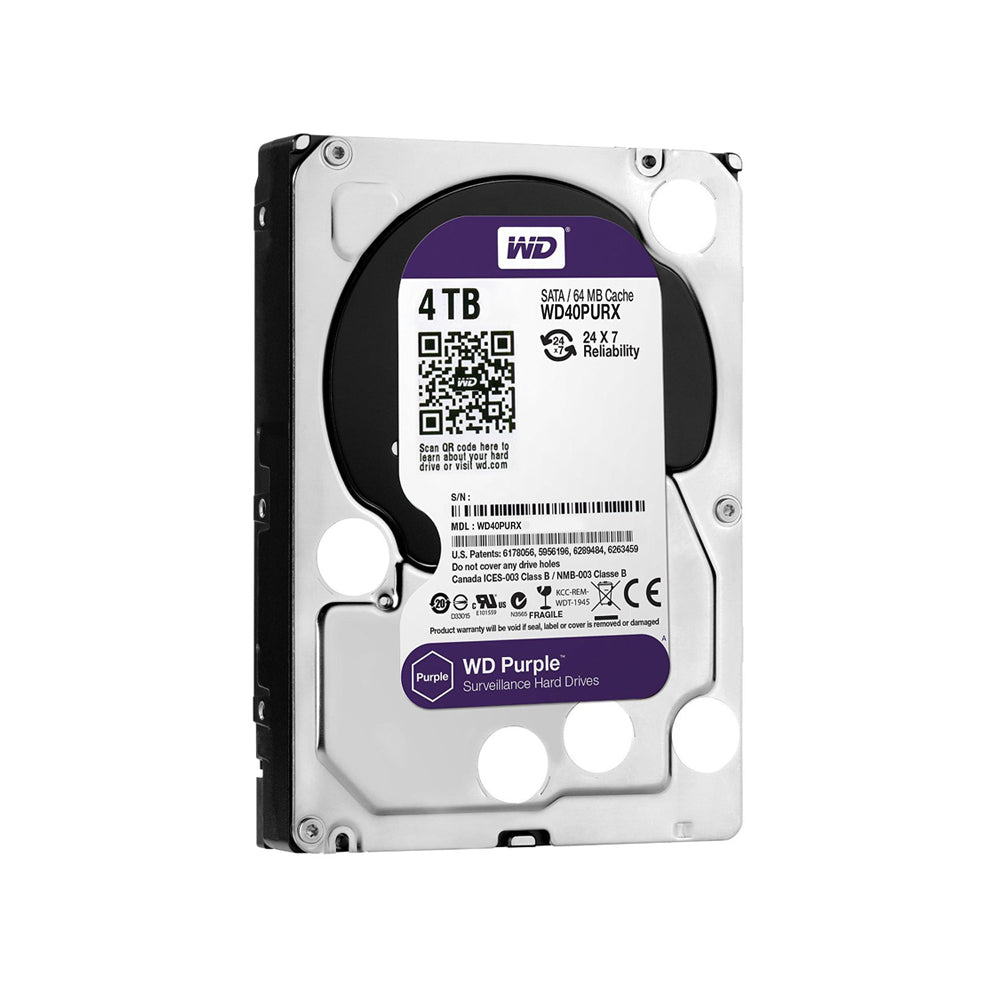

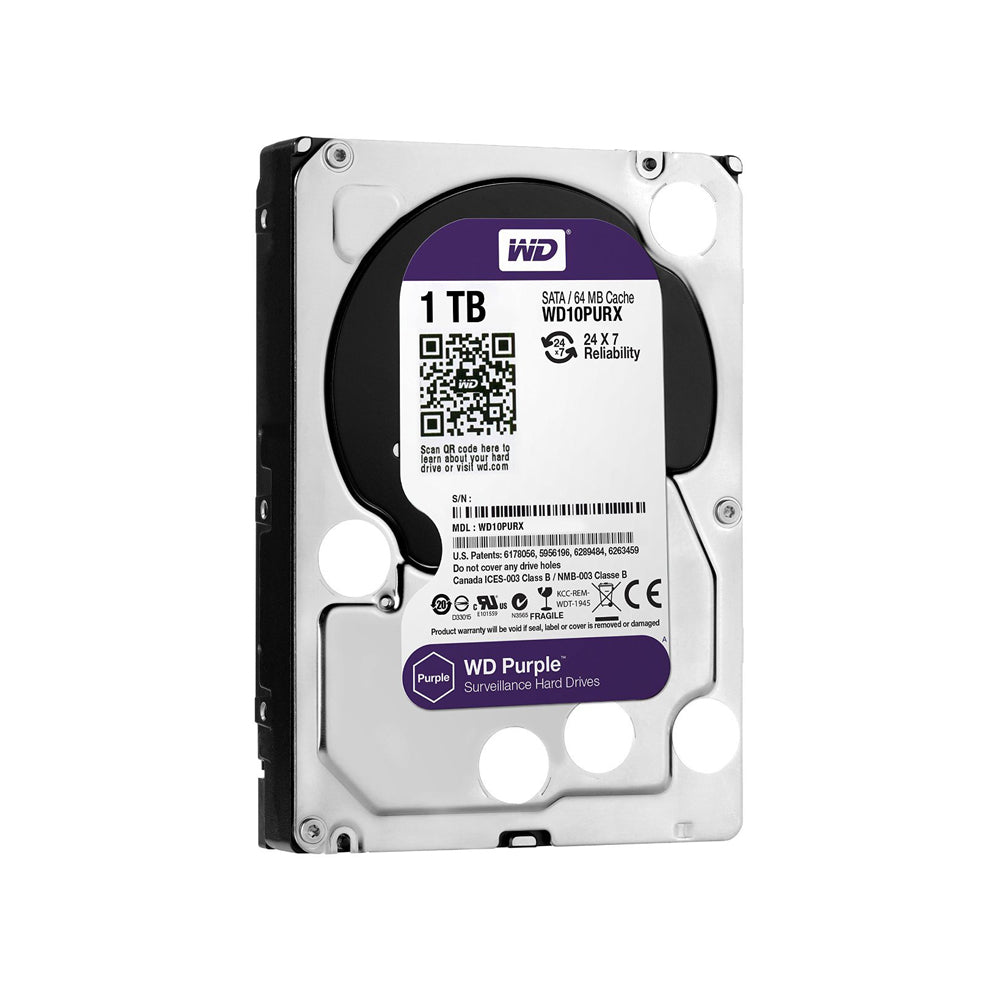

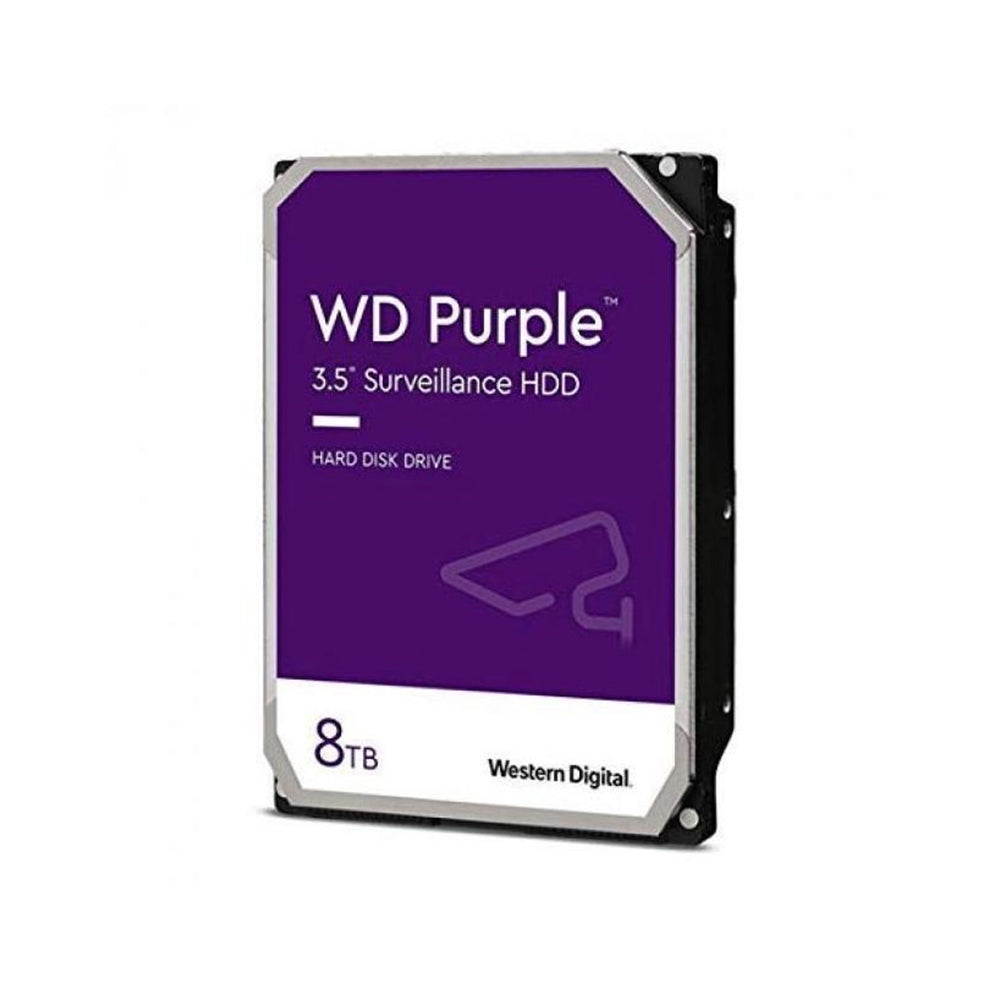

| Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) | 8TB (WD84PURZ) | 10TB (WD101PURP) | |
| Cache | 64MB | 64MB | 64MB | 64MB |
|
||
| Data Transfer Rate | Buffer to Host - 6 GB/s Host to/from drive (sustained) - 110 MB/s |
Buffer to Host: 6 GB/s Host to/from Drive (Sustained): 145 MB/s |
Buffer to Host: 6 GB/s Host to/from Drive (Sustained): 150 MB/s |
Buffer to Host: 6 GB/s Host to/from Drive (Sustained): 175 MB/s |
Buffer to Host: 6 GB/s Host to/from Drive (Sustained): 265 MB/s |
Buffer to Host: 6 GB/s Host to/from Drive (Sustained): 265 MB/s |
|
| Hard Disk Interface | SATA | ||||||
| Rotational Speed (RPM) | 7200 IntelliPower™ | ||||||
| Load/Unload Cycles | 300,000 | 300,000 | 300,000 | 300,000 | 600,000 | 600,000 | |
| Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | < 1 in 1014 | < 1 in 1014 | < 1 in 1014 | < 1 in 1015 | < 1 in 1015 | |
|
Power Management
|
|||||||
| Average Power Requirements | Read/Write - 3.3W Idle - 2.9W Standby and Sleep - 0.4W |
Read/Write - 4.4W Idle - 4.1W Standby and Sleep - 0.4W |
Read/Write - 5.1W Idle - 4.5W Standby and Sleep - 0.4W |
Read/Write - 5.3W Idle - 4.9W Standby and Sleep - 0.4W |
Read/Write - 8.6W Idle - 7.4W Standby and Sleep - 0.4W |
Read/Write - 9W Idle - 8W Standby and Sleep - 0.5W |
|
|
Approvals
|
|||||||
| RoHS | Compliant | ||||||
|
Packaging Information
|
|||||||
| Package Quantity | 1 | ||||||
| Product Weight | 0.99 lbs [0.45 kg] | 1.40 lbs [0.64 kg] | 1.50 lbs [0.68 kg] | 1.65 lbs [0.75 kg] | 1.58 lbs [0.72 kg] | 1.65 lbs [0.75 kg] | |
