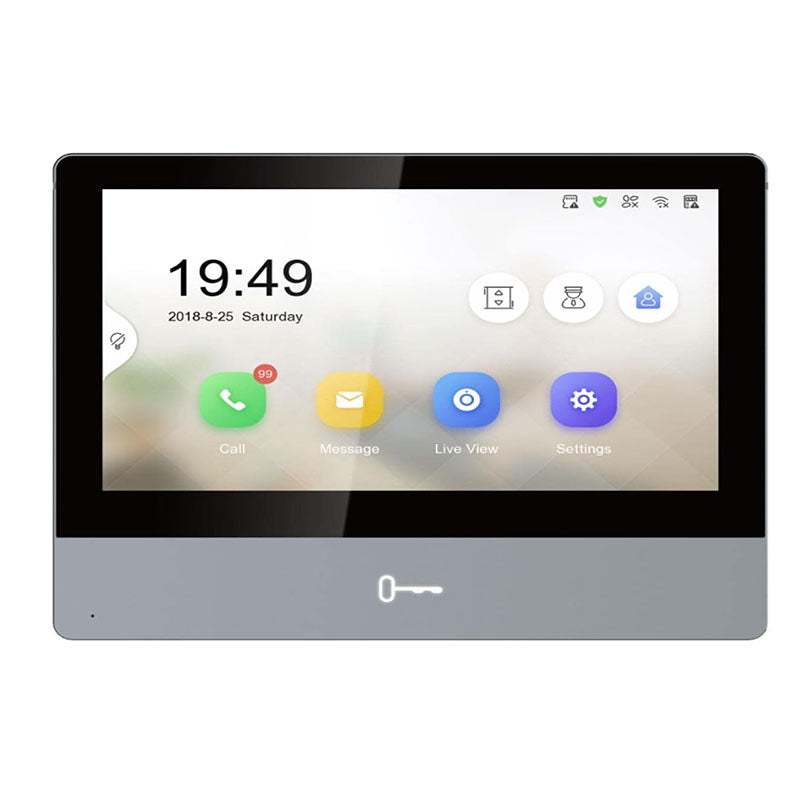

Hikvision DS-KH8350-WTE1 series Indoor station 7" Touchscreen Video Intercom Indoor Station

Hikvision DS-KH8350-WTE1 KH8 series Indoor station 7" Touchscreen Video Intercom Indoor Station

Overview:

KH8 Series Indoor Station

-7-inch IPS touch screen with 1024 × 600 resolution

-Reddot award winner

-Convenient Hik-Connect APP Mobile Control

-Receive calls, open the door and live view remotely

-Easy to use without PC

-Easy wizard for quick set up

-Configure the whole system on one touch screen

-Rich functions and extensions

-Live-view of the door station and cameras in public areas

-Support voice messages when no response from the indoor station

-Receive alarms by internal alarm terminals

System parameters

Operation system: Linux ROM: 32 MB RAM: 128 MB Processor: Embeded high performance processor

Display parameters

Screen size: 7-inch Operation method: Capacitive touch screen Type: Colorful IPS Resolution: 1024 × 600

Video parameters

Lens: / Resolution: / FOV: / Wide dynamic range (WDR): / Video compression standard: / Focal length: /

Audio parameters

Audio input: 1 built-in omnidirectional microphone Audio compression standard: G.711 U、G.711 A、G.722.1 Audio output: 1 built-in loudspeaker Audio Input: Built-in omnidirectional microphone Audio compression bitrate: 64 Kbps Audio quality: Noise suppression and echo cancellation Volume adjustment: Adjustable

Capacity

Notice capacity: 200 Linked indoor extensions capacity: 16 Linked doorphone capacity: 17 Linked network camera capacity: 16

Network parameters

Network protocol: TCP/IP, SIP, RTSP Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n Bluetooth: / 3G/4G: / Zigbee: /

Device interfaces

Alarm input: 8 Network interface: 1 RJ-45 10/100 Mbps self-adaptive TAMPER: / RS-485: 1 RS-485 (Half duplex) USB: / TF card: Support TF card, up to 128 G Alarm output: 2 Lock control: 2 high/low level relays (3.3V/0V)

General

Button: 1 physical button Installation: Surface mounting Indicator: / Net weight: 355 g (0.8 lb)

Gross weight: 899 g (2.0 lb)

Protective level: / Working temperature: -10 °C to 55 °C (14 °F to 131 °F) Working humidity: 10% to 90% (no-condensing) Dimension : (W × H × D)180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88") Battery: / Power supply: 12 VDC, 1 A, IEEE802.3af, standard PoE Application environment: Indoor Power consumption: ≤ 8 W Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
