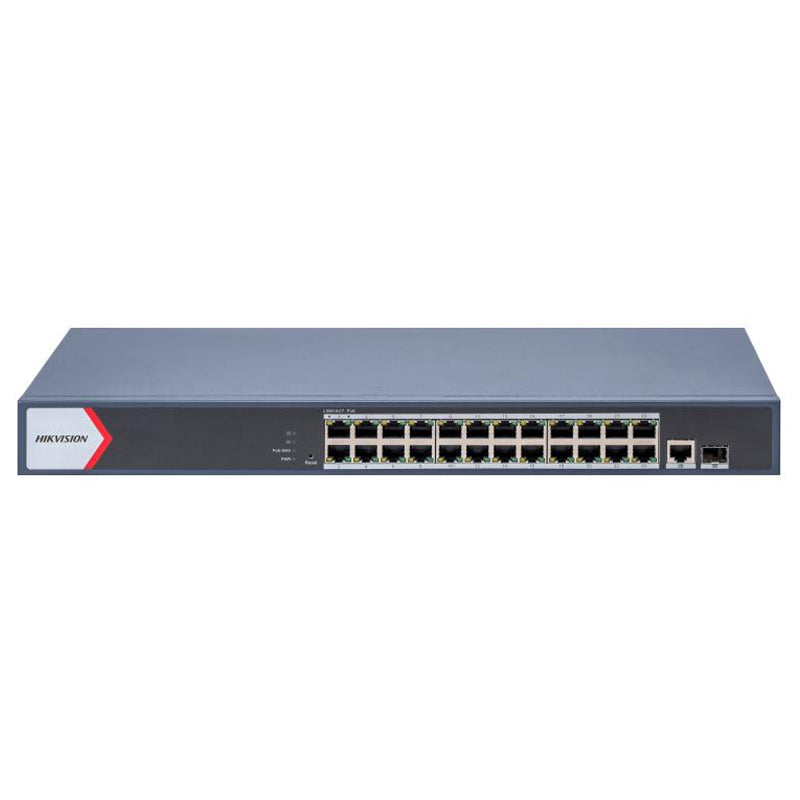

Hikvision DS-3E1526P-EI 24 Port Gigabit Smart Managed Long Range 370W POE+ Switch

-24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port

-Total PoE power budget 370 W

-Unified cloud management for security systems

-Network topology at your fingertips

-Remote troubleshooting

-Visualized topology management

-Up to 300 m long-range PoE transmission

-6 KV surge protection

DS-3E1518P-EI

Shell Metal material Net Weight 2.85 kg (6.28 lb) Gross Weight 3.05 kg (6.72 lb) Dimensions (W × H × D) 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'') Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Relative Humidity 5% to 95% (no condensation) Power Supply 100~240 V AC, 50/60 Hz, Max. 6.3 A Max. Power Consumption 400W Power Consumption in Idle 30 W Installation Mode Rack (equipped with mounting ears) Surge Protection 6 KV

Network Parameters

Ports 24 × Gigabit PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port MAC Address Table 8 K Switching Capacity

56 Gbps

Packet Forwarding Rate

41.66 Mpps

Internal Cache 4.1 Mbits

PoE Power Supply

PoE Standard IEEE 802.3af;IEEE 802.3at PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port PoE: Ports 1 to 24 Max. Port Power 30W PoE Power Budget 370W

Software Function

Long Range

Ports 1 to 24: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

Port Isolation

Ports 1 to 24: port isolation mode to improve network security.

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog

Ports 1 to 24: auto detect and restart the cameras that do not respond.

Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 8 aggregation group(s).

Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.

VLAN

VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 32 VLAN.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.

System Maintenance

Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

Support r
