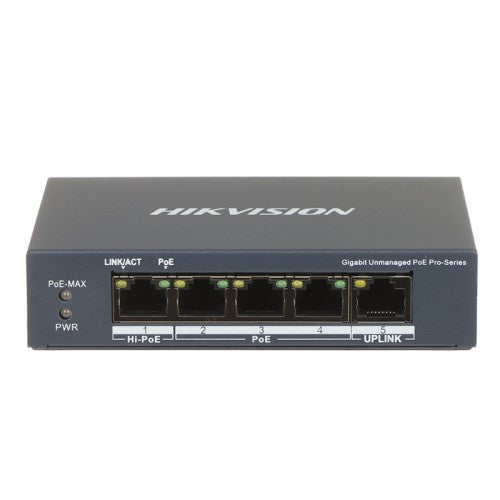

Hikvision DS-3E0505HP-E 4 Port Gigabit Unmanaged Long Range POE++ 65W Switch

-3 × gigabit PoE port, 1 × gigabit Hi-PoE port and 1 × gigabit RJ45 port.

-IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).

-IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).

-IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standard.

-6 kV surge protection for PoE ports.

-Up to 300 m long-range transmission.

-PoE watchdog to auto detect and restart the cameras that do not respond.

-Port isolation to improve network security.

-Gigabit network access design.

-Wire-speed forwarding.

-Store-and-forward switching.

-Solid high-strength metal shell.

-Reliable fan-free design.

DS-3E0505HP-E Shell Metal material, fan-free design Net Weight 0.27 kg (0.59 lb) Gross Weight 0.43 kg (0.95 lb) Dimensions (W × H × D) 121.0 mm × 88.1 mm × 27.6 mm (4.76'' × 3.47'' × 1.09'') Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Relative Humidity 5% to 95% (no condensation) Power Supply 48 VDC, 1.35 A Max. Power Consumption 65 W Power Consumption in Idle 5 W Installation Mode Desk-Mounted,Wall-Mounted Surge Protection 6 KV

Network Parameters

Ports 4 × Gigabit PoE port,1 × Gigabit RJ45 port MAC Address Table 2 K Switching Capacity 10 Gbps Packet Forwarding Rate 7.44 Mpps Internal Cache 1 Mbits

PoE Power Supply

PoE Standard IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port Hi-PoE: Port 1 PoE: Ports 2 to 4 Max. Port Power Port 1: 60 W Ports 2 to 4: 30 W PoE Power Budget 60 W

Dialing Function

Long Range

Ports 3 to 4: up to 300 m

Long range performance may vary depend on camera model or cable condition.

Port Isolation

Ports 1 to 4: port isolation mode to improve network security.

PoE Watchdog

Ports 1 to 4: auto detect and restart the cameras that do not respond.

Approval

EMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) Chemistry

CE-RoHS (2011/65/EU)
