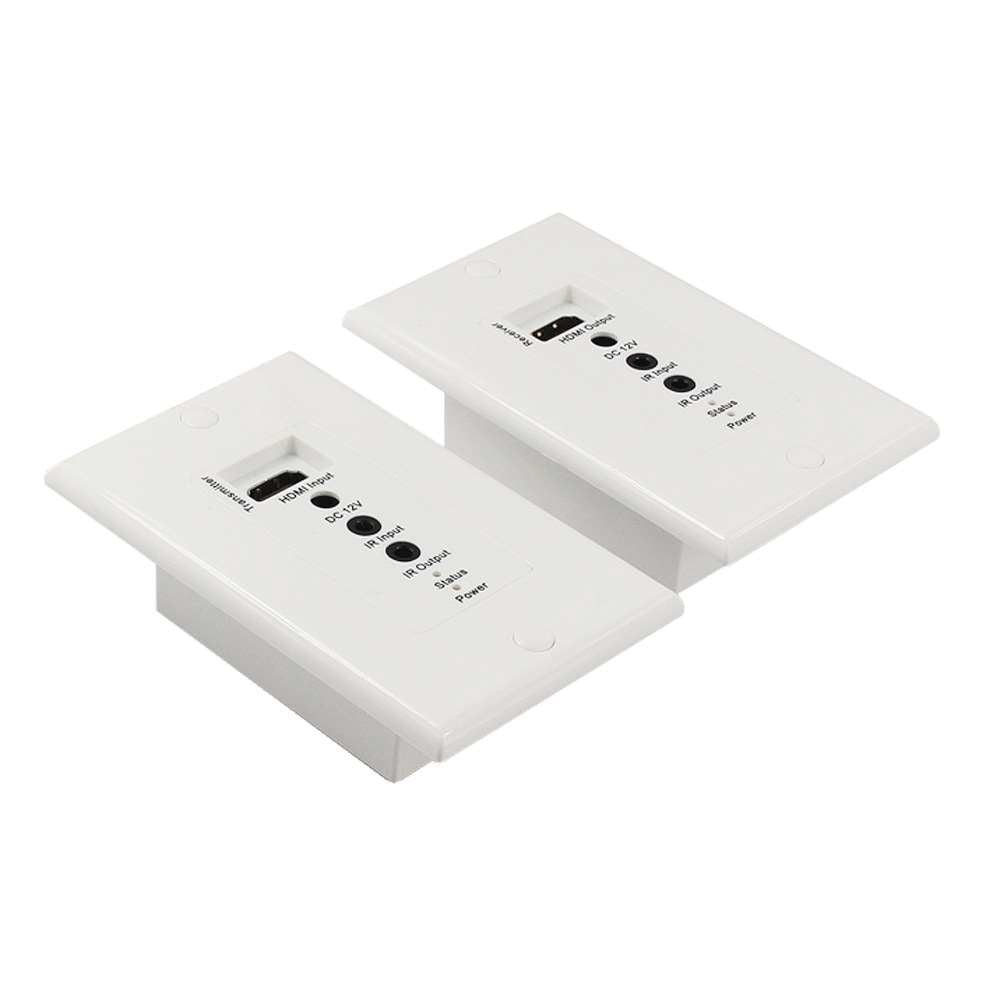

This HDMI single CAT5E/CAT6 wall plate video extender allows you to extend your HD display up to 50 meters and keeps your cables hidden behind walls. Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the area of the display back to the source devices.
Features
- Extending distance is 170ft (50 meters) at resolutions 1080P 3D or 1920x1200 60fps and 200ft (60 meters) at 1080i/720P through single CAT5e cable.
- Supports audio formats, True HD, DTS-master, etc.
- Supports 3D signals (all 7 formats), such as Frame Packing, Side-by-side, Top-to-Bottom, etc.
- Supports EDID learning.
- VESA DDC and hot swap technology (HPD).
- Supports power over UTP cable, single 12V DC power supply from any side of TX or RX.
- Bi-direction remote IR(RX-TX and TX-RX).
- Compatible with DVI 1.0.
- Supports cascade to enhance extending distance.
Application
| Physical Characteristics | |
|---|---|
| Color | White |
| Wall Plate Size | Single Gang |
| Dimensions (LxWxH) | Transmitter: 115x70x34mm Receiver: 115x70x34mm |
| Operating Temperature Range | -5℃ ~ 35℃ |
| Power | |
| Power Supply | DC 12V/1A |
| Power Consumption | 3 Watts (maximum) |
| Connector(s) | |

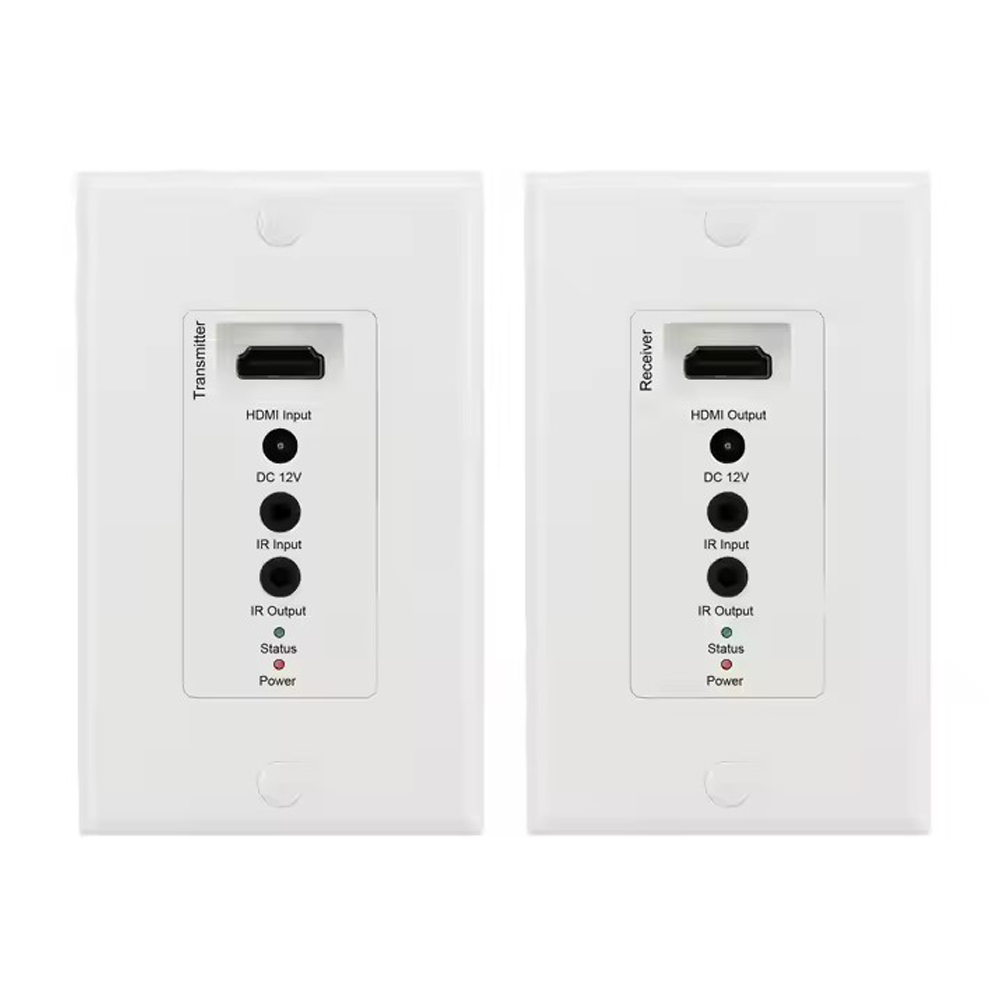

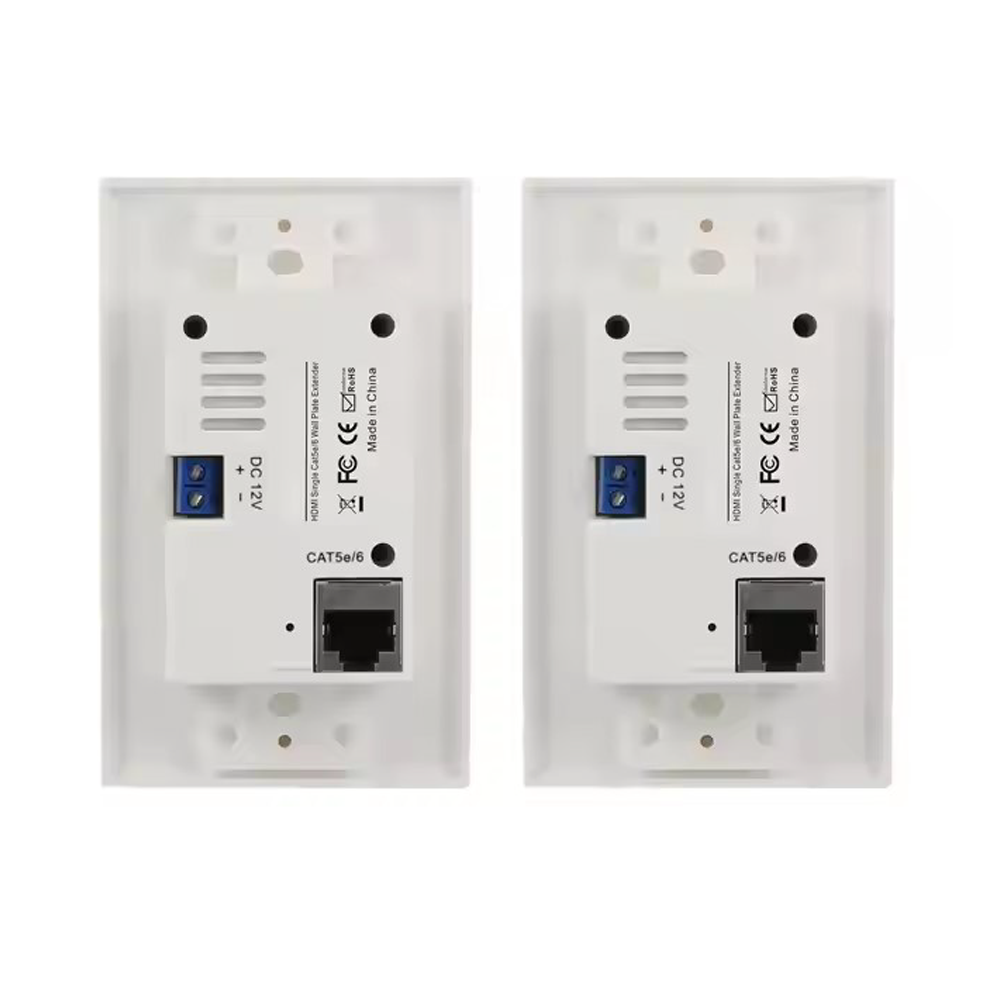

| Transmitter | HDMI input, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface, 12V DC in. |
| Receiver | HDMI output, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface, 12V DC in. |
| Performance | |
| Video Format | DTV/HDTV: 480i/ 567i/ 480p/ 567P/ 720p/ 1080i/ 1080p@60Hz 3D video format |
| Video Bandwidth | Maximum TMDS clock frequency 165MHz, 4.95Gbps |
| Transmission Range | 1080P CAT5E: 170ft (50meters), CAT6 200ft (60meters) 720P/1080i CAT5E/270ft (80meters), CAT6 200ft (60meters) |
| Audio | 8-channel, supports Dolby True HD and DTS Master |
| HDMI Interface Standard | HDMI 1.3 standard (HDMI 1.4b 3D function) HDCP 1.2 support EDID |
| Bi-direction remote | Compliant |
| CEC pass through | Compliant |
| EDID Call Back | Compliant |
| Indicator Light | Power Green, video link yellow |
| Remote IR | 38KHz(Model A) or 20-60KHz(Model B) |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Product Weight | 0.3 lbs [0.1kg] |
| Package Weight | 1 lbs [0.5kg] |

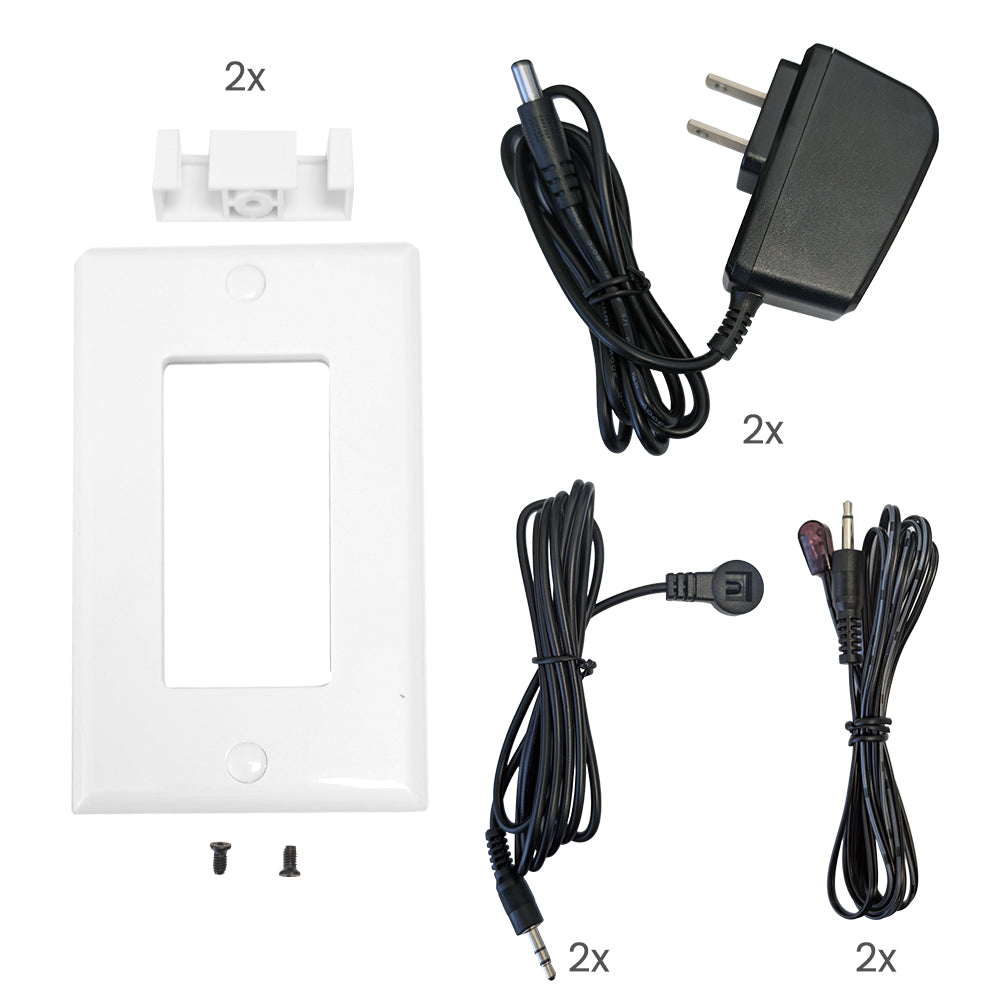

| Included in Package | 1 - Transmitter |
| 1 - Receiver | |
| 2 - DC 12V/1A Power Adapter 2- IR Blaster (with 3m cable) 2 - IR Receiver Cables (with 3m cable) 2 - Single Gang Decora Wall Plates White with hardware |
|
| 1 - Manual | |
