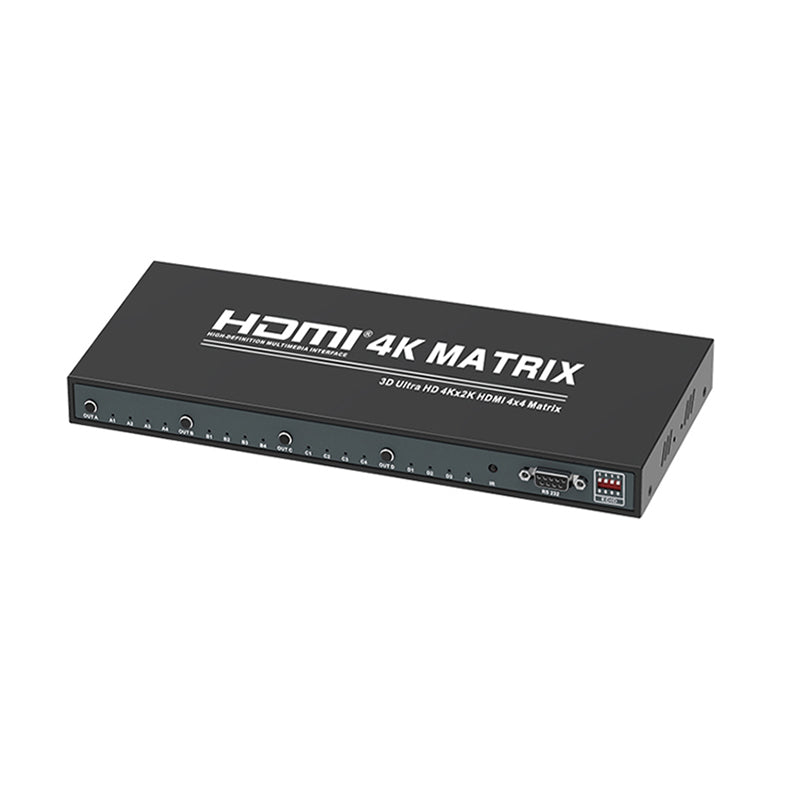

HDMI 4x4 Matrix 4Kx2K@60Hz Matrix HDCP2.2 3D Ultra HD Switch

$157.99

Hurry up! Sales Ends In

Hurry! Only 5 Left in Stock!

Real time 21 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

Features:

HDMI Matrix is a perfect matrix product with detached external audio output ports, which can connect 4 different HDMI signal sources and 4 displays.
It can easily switch any 1 or 2 of 4 input signals to 4 displays by using a remote control or pushing a button. The output signals can be the same or different.
Using this product can avoid the need to disconnect and reconnect signal sources to displays frequently. It can smartly select input signal sources with priority order and jump over those input signal sources which are not in work. It can optimize your home theatre system to the best effect.

1. When its 4 input ports are separately connected to 4 signal sources with HDMI cables, the HDMI Matrix automatically recognizes the last connected port and switches its input signal to 4 displays.
2. The needed input signal sources must be selected by using a remote control or pushing a button in order to make 4 displays showing 4 different signals.
3.Support HDMI2.0,HDCP2.2;
4. Support video format up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;
5. Switch easily between any 4 HDMI sources.
6. The 4 displays can get the same or different signals without mutual interaction.
7. Connected easily to a dual-channel audio receiver device.
8. Support DVI device with DVI to HDMI adapter.
9. Plug-and-play and no need for setting.
10. Metal casing design and overall shielding without signal interference.
11. Use the remote control or push the button to freely select the input source.
12. LED indicates signal /power mode.

HDMI Source Input Port: 4
Display Device Output Port: 4
Source Port Connector: HDMI 19PIN
Display Device Port Connector: HDMI 19PIN
HDCP Compliant: YES
Single Link Range: 3840x2160
Input Video Signal: 0.5-1.0 Volts P-P
Input DDC Signal: 5 Volts P-P(TTL)
Deep Color: 36bit
HDMI Version: HDMI2.0
Bandwidth: Up to 600Mhz
Signal Speed: Up to 18Gbps
The cable standard: 26AWG HDMI2.0
Vertical Frequency Range: 60Hz
Power Consumption(max.): 15Watts
Operation Temperature: 0℃-70℃
Working Voltage: DC 12V
Power Adaptor: 12V 2A
Dimension: LxWxH(mm):300x181x25

Explanation: With different brands of input or output devices, the length of the connecting cables will differ too.

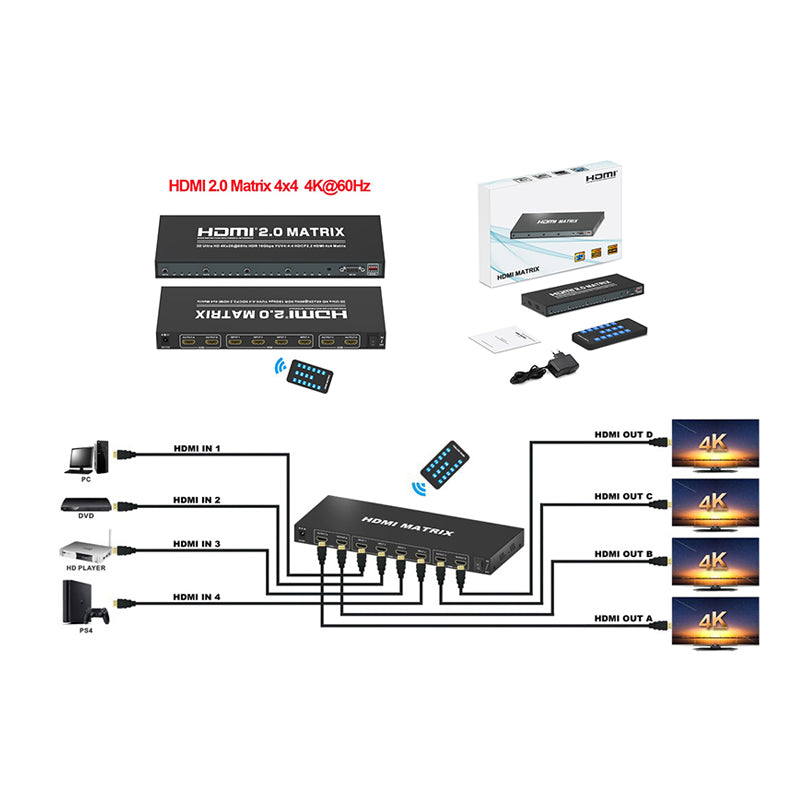

CONNECTION DIAGRAM:
Before installation, please make sure all devices you wish to connect have been turned off.

Connect the HDMI cable between the signal source and the input port of Matrix.
Connect the HDMI cable between the output port of Matrix and HDTV.
Connect Matrix and power adapter.
Open the signal source and the power of HDTV, then it works.

EDID Selector: Select HDMI output signal format via EDID Selector.
Number  EDID   Selector Description
1 0000   1080P, Audio 2.0
2       0001   1080P, Dolby/DTS 5.1
3       0010   1080P,HD Audio 7.1
4       0011   3D 1080P,Audio 2.0
5       0100   3D 1080P,Dolby/DTS 5.1
6       0101   3D 1080P,HD Audio 7.1
7       0110   4Kx2K@30Hz,Audio2.0
8       0111   4Kx2K@30Hz, Dolby/DTS 5.1
9       1000   4Kx2K@30Hz,HD Audio 7.1
10      1001   4Kx2K@60Hz,4:4:4,Audio 2.0
11      1010   4Kx2K@60Hz,4:4:4,Dolby/DTS 5.1
12      1011   4Kx2K@60Hz,4:4:4,HD Audio 7.1
13      1100   Copy EDID from HDMI Out A
14      1101   Copy EDID from HDMI Out B
15      1110   Auto, compare Out A and Out B
16      1111   PC control mode
