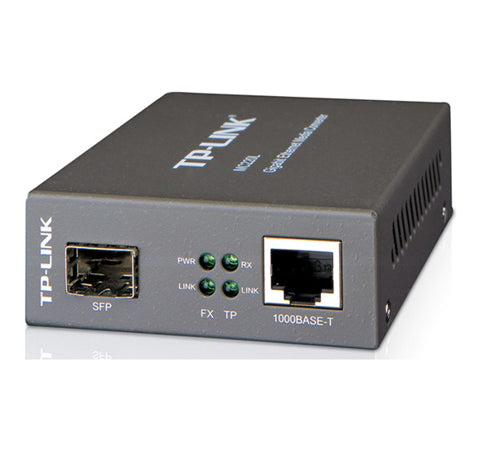

Gigabit SFP Media Converter
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
Features
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- FX port support hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
Specification
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Basic Function | Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 0.5km using 50/125um fiber |
| Ports | 1 Gigabit SFP port 1 1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | Depends on the used SFP module |
| Network Media 1000BASE-FX | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T | UTP category 5, 5e, 6 cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, LINK, RX |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
