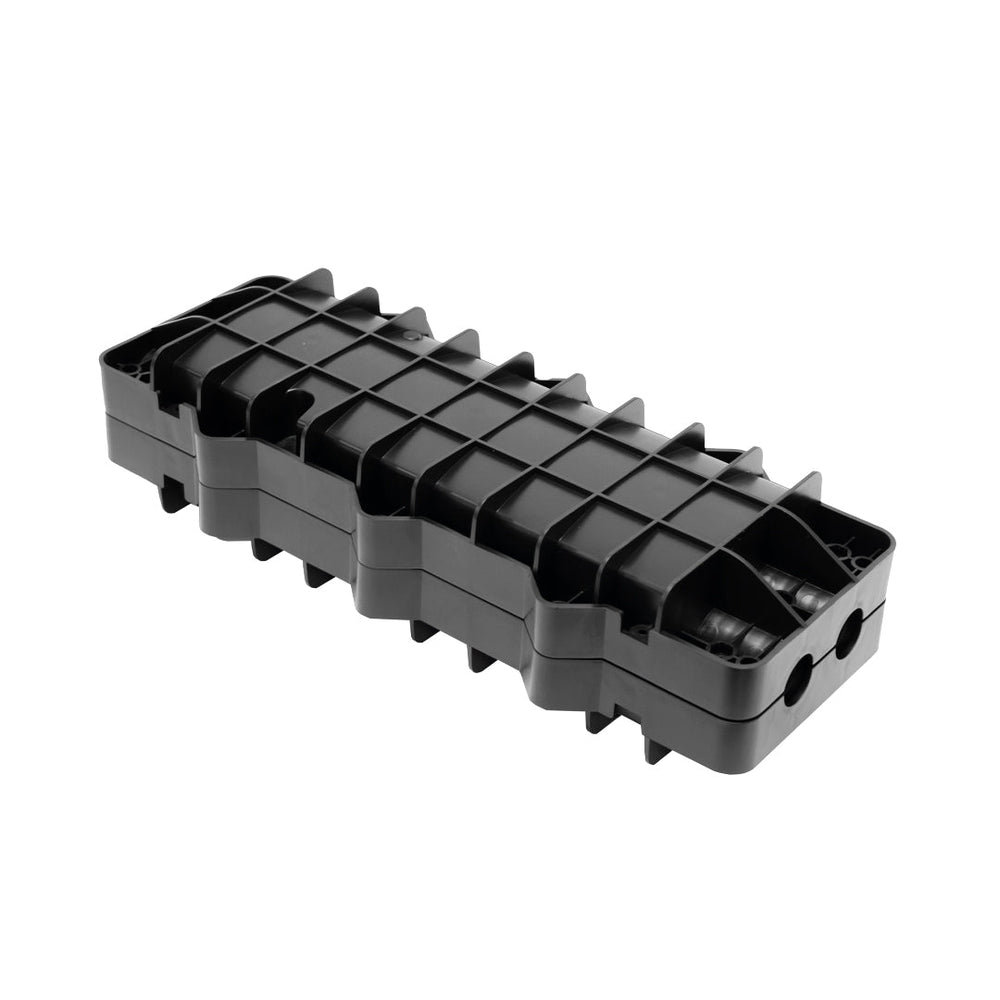

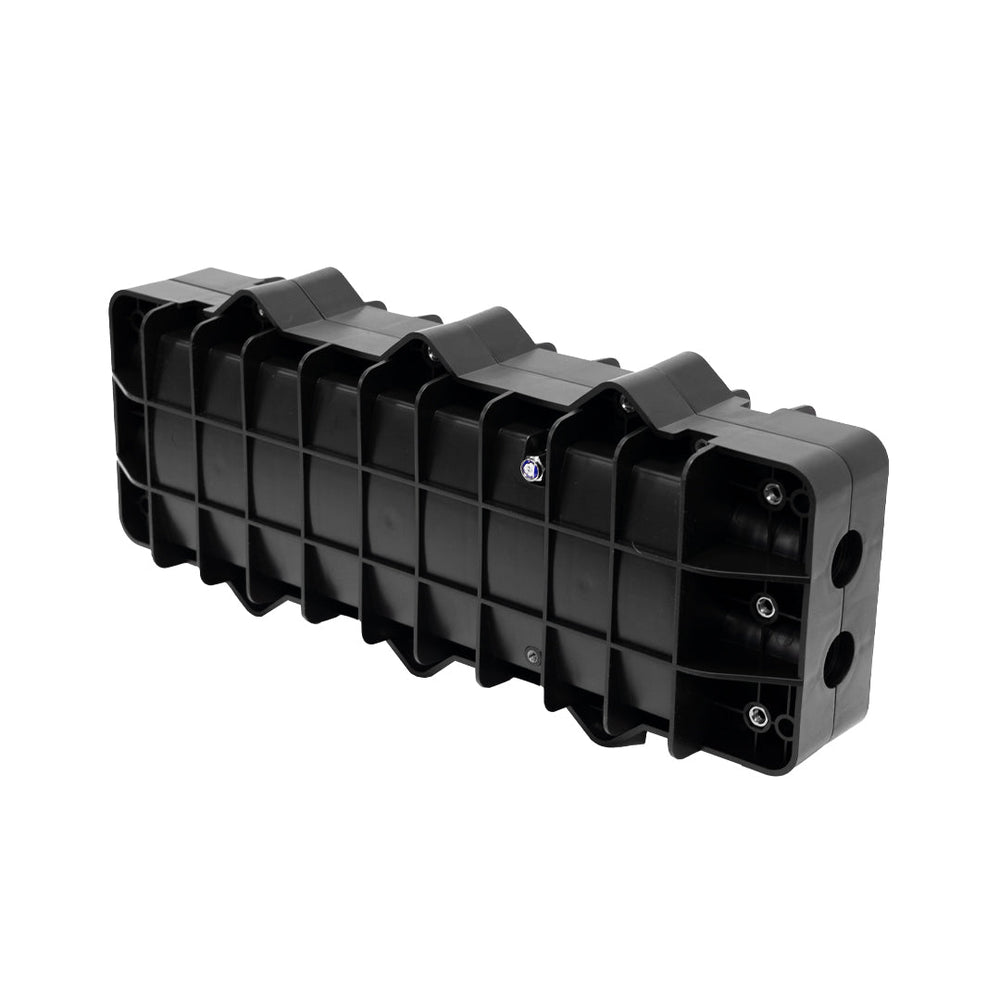

This horizontal fiber optic splice enclosure is used for fiber optic cable splicing. It has -40°C temperature rating, and is suitable for outdoor aerial hung, and wall mount applications.
Features:
- Reasonable design for cable protection
- Material: PP plastic for base and cover; ABS plastic for inside parts

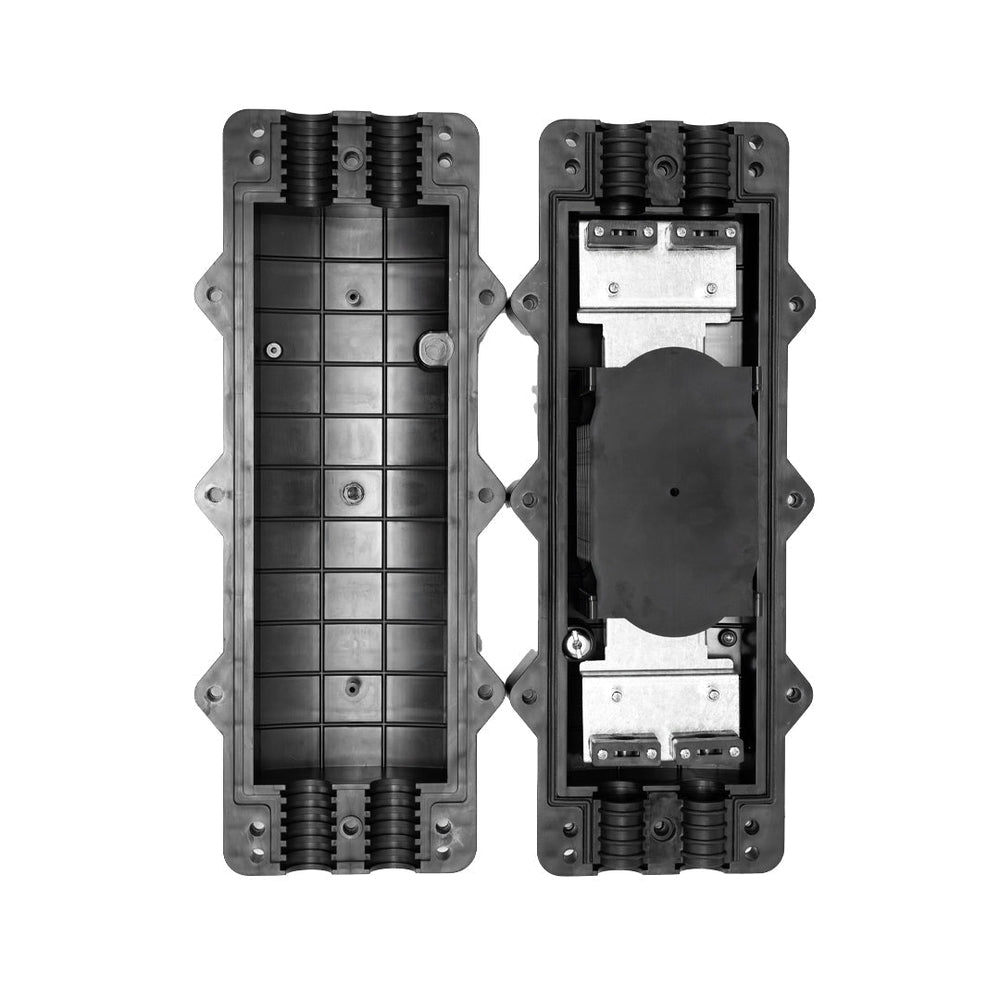

- 4 cable ports (2 in 2 out) for max. 19mm diameter optical cable entry & exist

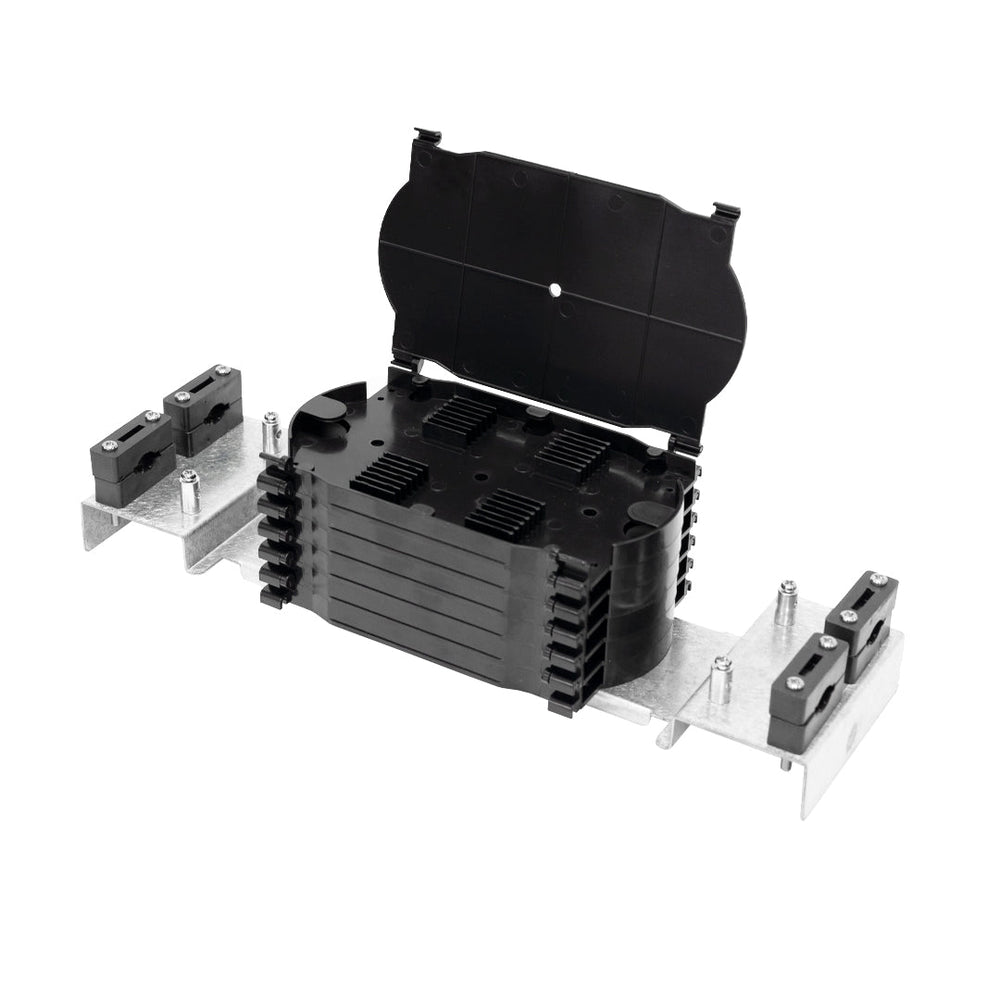

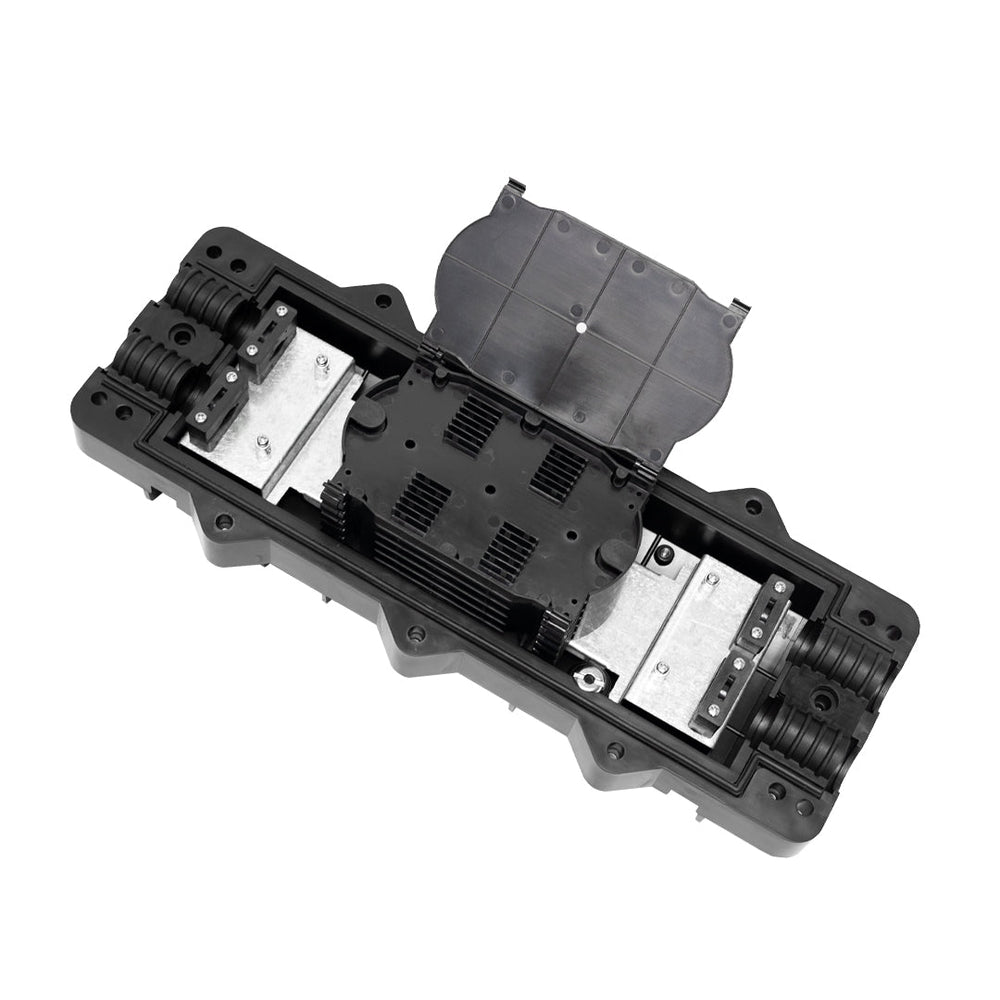

- Max. 6pcs splice tray, each 24 fibers; max. 144 fibers capacity
- With fixing cable strengthen core parts
- Dust-proof and waterproof, IP68

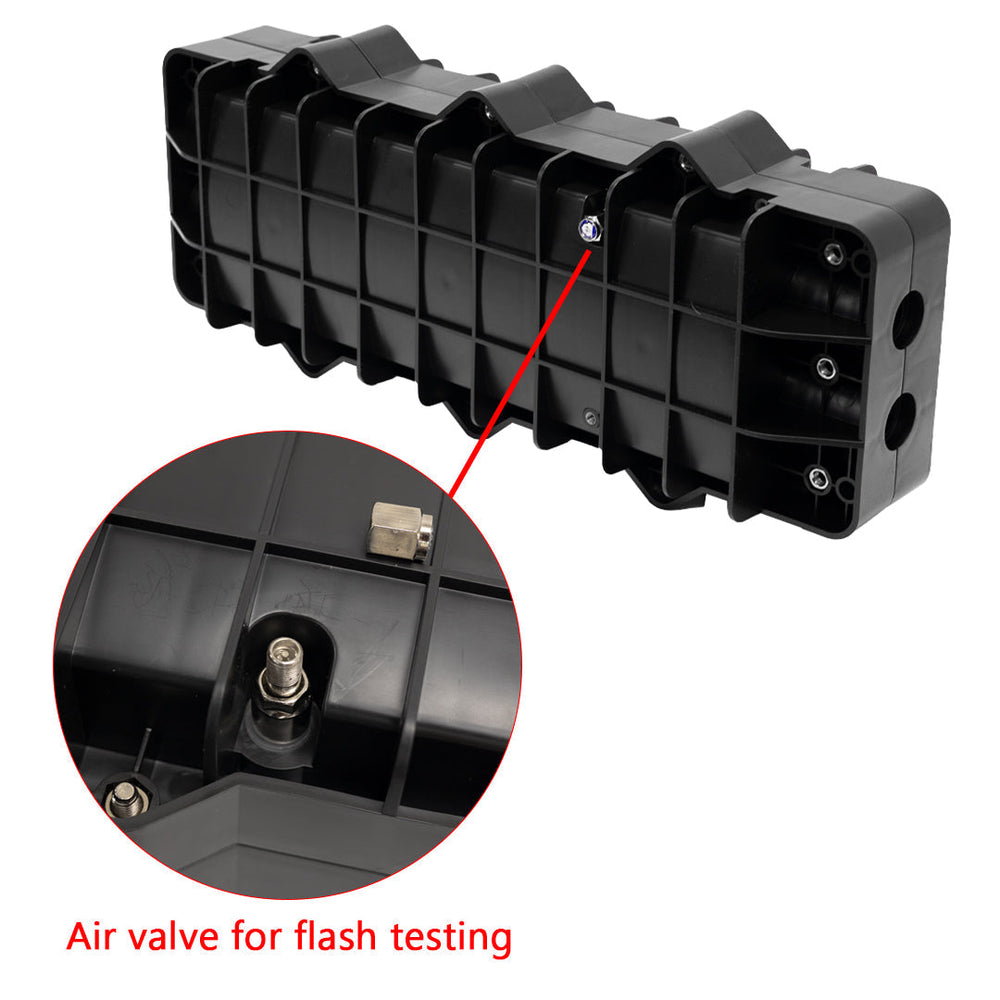

- Air valve for flash testing
- Temperature Range: -40°C to 60°C
- UL Standard
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Outside: PP Plastic Inside: ABS Splice Tray |
| Cable Ports | 2 in 2 out |
| Splice Tray | Max Quantity of Splice Trays: 6pcs – Comes loaded with 6 splice trays Max Capacity of Splice Tray: 24 fibers |
| Capacity | 144 fibers max. |
| Temperature Range | -40°C to 60°C |
| Dimension | 424 x 173.6 x 104 mm |
| IP Standard | IP68, Dust-proof and Waterproof |
| Standard | |
| UL | Approved |
| Packaging Information | |
| Product Weight | 4.93 lbs [2.23kg] |

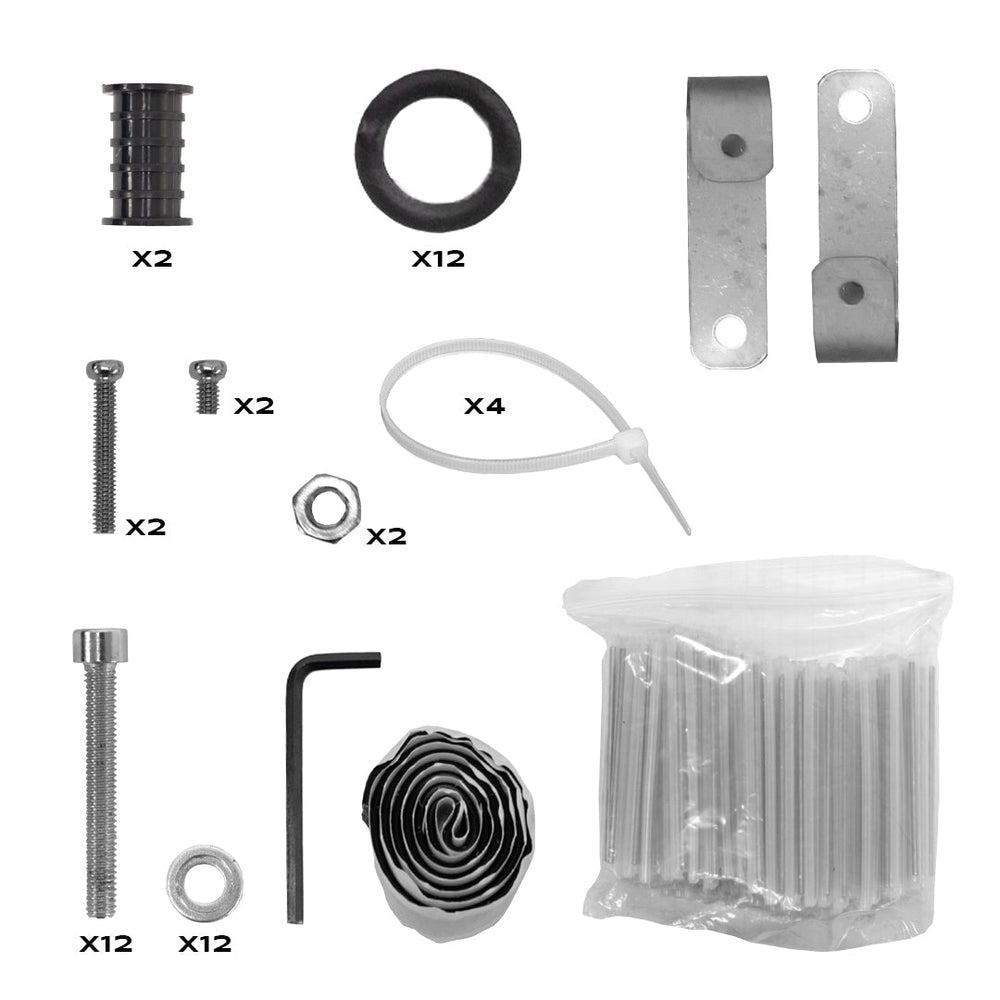

| Package Contents | Heat protect shrinkable sleeve | 60mm*3.0*1.5 | As per using capacity Cable tie | 3mm*120mm | 4 pcs Inner hexagon spanner | S6 | 1 pc Screw | M4*25 | 2 pcs Screw nut | M4 | 2 pcs Plug cap | Φ28*42mm | 2 pcs Plastic gasket | Φ28*Φ12*2.7 | 4 pcs Plastic gasket | Φ28*Φ14*2.7 | 4 pcs Plastic gasket | Φ28*Φ18*2.7 | 4 pcs Adhesive tape | 15mm*2mm*950mm | 1 reel Screws | M5*8 | 2 pcs Aerial hook | 2 pcs |
