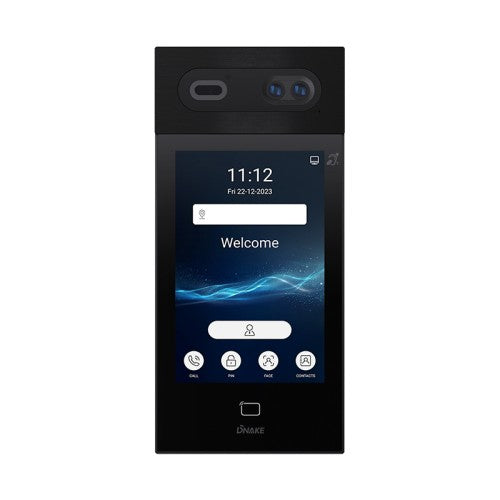

Dnake S617/S 8 inch Facial Recognition Android 2MP PoE+ Doorphone Station with Surface or Flush Mounting Box

- 8” color IPS LCD - Dual HD cameras at 2MP resolution - 120° wide viewing angle - Support WDR technology to lighten the dark areas and darken the overexposed parts of the image - Door entry methods: call, face, IC card (13.56MHz), ID card (125kHz), PIN code, APP, Bluetooth(optional) - Anti-spoofing algorithm against photos and videos - Support 20,000 users, 20,000 faces, and 60,000 cards - Tamper alarm - Support surface & flush mounting - Easy integration with other SIP devices by SIP 2.0 protocol Physical Property   System  Android   RAM  2GB   ROM   8GB   Front Panel  Aluminum   Power Supply  PoE+ (802.3at) or DC12V/2A   Camera  2MP, CMOS, WDR   Door Entry  Face, IC (13.56MHz) & ID (125kHz) card, PIN code, APP, Bluetooth (Optional)   IP/IK Rating  IP65 / IK08   Installation  Flush Mounting & Surface Mounting   Surface Mounting Dimension  140 x 300 x 41.8 mm    Flush Mounting Dimension  140 x 300 x 60.3 mm   Working Temperature  -40℃ - +55℃   Storage Temperature  -40℃ - +70℃   Working Humidity  10%-90% (non-condensing)

Display   Display  8-inch IPS LCD   Resolution  1280 x 800

Audio & Video   Audio Codec  G.711    Video Codec  H.264   Video Resolution  up to 1920 x 1080   Viewing Angle  120°(H) / 75°(V) / 131°(D)   Light Compensation  LED white light

Networking   Protocol  Onvif, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP

Port   Wiegand Port  Support   Ethernet Port  1 x RJ45, 10/100 Mbps adaptive   RS485 Port  1   Relay Out  3   Reset Button  1   Input  4
